F&C M12 NPN PNP round photoelectric switch for automation door

FOB Price

USD $17.1 - $20 / Piece

5 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

DR12 Series Universal photoelectric switch is suitable for automatic door , Metro channel detection etc.

Feature:

1. 12mm diameter , convenient to install.

2. Waterproof grade can reach IP67

3.Through Beam and diffuse refective photoelectric for option.

4.Fixed detection distance, Strong Anti-interference.

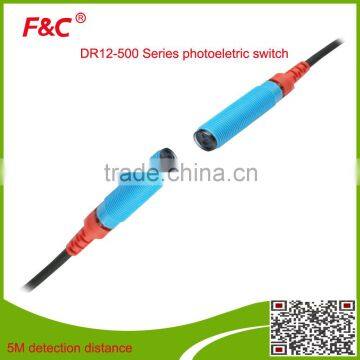

DR12-500 Series (Through -beam )detection distance: 5M Min detection object size:diameter 5 opaque objects

DR12-15N Series(Diffuse )detection distance :15cm

DR12-05 Series(Diffuse) detection distance:5cm

Specification for DR12-500N round photoelectric switch for automating door

Model	Detection Method	Detection Distance	Min Detection Object Size	Connection Method
DR12-500N	NPN NO	5m	dia 5 opaque objects	dia 4*2M/3 wires
Dr12-500N2	NPN NC	5m	dia 5 opaque objects	dia 4*2M/3 wires
DR12-500P	PNP NO	5m	dia 5 opaque objects	dia 4*2M/3 wires
DR12-500P2	PNP NC	5m	dia 5 opaque objects	dia 4*2M/3 wires
DR12-500N/15D	NPN NO	5m	dia 5 opaque objects	150mm Lead line with M8 connector
DR12-500N2/15D	NPN NC	5m	dia 5 opaque objects	150mm Lead line with M8 connector
DR12-500P/15D	PNP NO	5m	dia 5 opaque objects	150mm Lead line with M8 connector
DR12-500P2/15D	PNP NC	5m	dia 5 opaque objects	150mm Lead line with M8 connector
Light Source	630nm Red LED
Operating Voltage	10-30 VDC
Current Consumption	15mA
Load Current	100mA Max at 24VDC
Response Time	0.3ms Max
Insulation resistance	20M Ohm min at 500VDC
Dielectric Strength	1000VAC 60HZ for 60 seconds
Material	ABS
Operating Temperature	-10~45℃(No icing)
Ambient Humidity	35%-85%
Certificate	CE
Protection Degree	IP67
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Weight	about 20g

Why Choose F&C ?

We keep more than 140 models in warehouse, it could cut lead time of most items.
We have over 3000 kinds of sensors available, what you need can be found in F&C
Customer service in 1-4 hours. If there's any question, please contact with our sales.
Experienced technical support team and Accept OEM order.
18 Months warranty for all the goods
