Home > Products > Photoelectric sensors > Visible red light photo sensor,300mm detection distance,suitable for logistics device

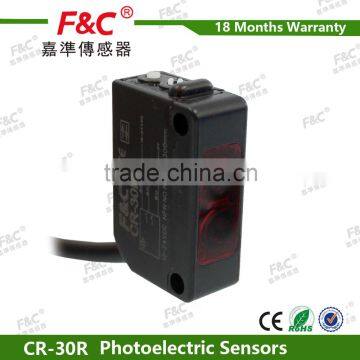

Visible red light photo sensor,300mm detection distance,suitable for logistics device
- Shenzhen
- Credit Card
You May Like
-
Slot optical sensor,level detection,waterproof oilproof dustproof
-
FSNA series Ring shape proximity switches, new Ring proximity sensors
-
M18 NPN NO Capacitive proximity Switch Sensor
Quality Choice
-
FKCT series Liquid Level Sensor, suitable diameter 8~12mm/12~26mm pipe, Capacitive Level Sensor/Capacitive Sensor
-
FD series Magnetic Sensors Switches, Magnetic Reed Switch, Used For Cylinder Detection, Cylinder Sensors, Can Be Customized
-
FSC Series Small cylinder Proximiy Sensors Switches,
Product Details
| Place of Origin | Hunan, China | Brand Name | F&C | |
| Model Number | CR-30R | Usage | Position Sensor | |
| Theory | Current Sensor | Output | Switching Transducer |
Product Description
Know more information about the product,welcome to contact me at any time via Skype:Lulu_Lu1995 or cellphone:86-15173188970
Product display
Specification
| Model | CR-30R | CR-30V |
| Detection distance | 100~300mm | 300mm |
| Light source | Red LED:630nm | |
| Operating voltage | DC12-24V +-10% | |
| Current consumption | 15mA Max | |
| Load current | 100mA Max at DC 24V | |
| Output type | 1-5v voltage output analog | Visible red light |
| Protection circuit | Power anti-received protection and short circuit protection | |
| Response time | 0.5ms Max | |
| Insolation resistance | 20MΩmin.(DC500V) | |
| Dielectric strength | AC1000V 60Hz for 60sec | |
| Operating Temperature | -10℃-+50℃ | |
| Storage temperarure | -20°C~+60°C(No freezing allowed ) | |
| Storage humidity | 35%-95% Relative humidity | |
| Operating humidity | 35%-85% Relative humidity | |
| Waterproof degree | IP66 | |
| Material | ABS | |
| Wiring method | φ4×2M/3-wires | |
| Weight | Approx.20g | |
Dimension Drawing
