Home > Products > Proximity sensors > FSCU1202 series M12 3-Pins Inductive Proximity Sensors, Connector Type, Full Metal Housing Include Sensing Field.

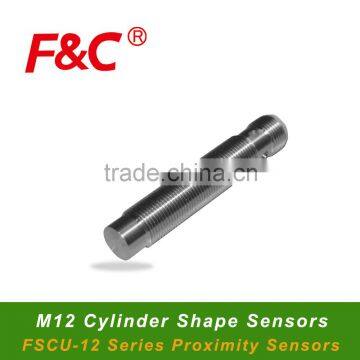

FSCU1202 series M12 3-Pins Inductive Proximity Sensors, Connector Type, Full Metal Housing Include Sensing Field.
USD $8 - $15
/ Piece
20 Pieces(Min.Order)
- Shenzhen Guangzhou
- Credit Card
You May Like
-
FSCU1805 series M18 3-Pins Inductive Proximity Sensors, Connector Type, Sensing Part Is Made of Metal, Full Metal Housing.
-
8*8mm Front Sensing Field, 2mm Sensing Range, IP67, Dual LED, F3N-08TN02 Series Inductive Sensor.
-
8*8mm Sensing Field, 2mm Sensing Range, IP67, Dual LED, F3N-08DN02 Series Inductive Proximity Sensor.
-
FKC2210 series Sn10mm 12-24V dc flat capacitive proximity sensor with CE
-
F&C M12 SN5mm PNP Capacitive proximity sensor with CE
-
Q6 SN1mm 12-24V DC small square inductive proximity sensor with CE
Product Details
| Place of Origin | Hunan, China | Brand Name | F&C | |
| Model Number | FSCU1202 series | Usage | Position Sensor | |
| Theory | Inductance Sensor | Output | Switching Transducer |
Product Description
Product Description
| standard shell/shield | FSCU1202-N/D R2M | NPN.NO | 2mm | 8×8×1(iron) | φ3×2M/3-wires |
| FSCU1202-N2/D R2M | NPN.NC | ||||
| FSCU1202-P/D R2M | PNP.NO | ||||
| FSCU1202-P2/D R2M | NPN.NO | ||||
| standard shell/non-shield | FSCU1204-N/D R2M | NPN.NO | 4mm | 8×8×1(iron) | φ3×2M/3-wires |
| FSCU1204-N2/D R2M | NPN.NC | ||||
| FSCU1204-P/D R2M | PNP.NO | ||||
| FSCU1204-P2/D R2M | NPN.NC |
| Response frequency | 1000Hz/800Hz |
| Hysteresis | 10%≤sensing distance |
| Operating voltage | DC:12~24VDC±10%/ can customize 5V |
| Current consumption | DC:≤8mA No—Load |
| Load current | DC:24V 150mA Max |
| Leakage current | DC:≤0.01mA no-Load |
| Residual votage | DC:≤1.5VDC No-load |
| Operating temperature | -20°C~+70°C |
| Material | PBTand SUS304 |
| Wiring method | 2M/3-wires |
| Protection degree | IP67 |
Diagram
