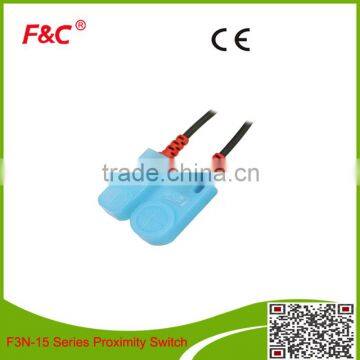

OEM 12V-24V PNP NC Rectangular Top Induction position Sensor Switch
- Shenzhen;Guangzhou
- Credit Card
You May Like
-
High repeatability 12V-24V Inductive Proximity Sensor Switch (FSNDM04-N) for high speed rotator
-
15mm detection distance 10-30VDC Front inductive NPN PNP Proximity Sensor Switch
-
4mm detection distance TOp Inductive Proximity Sensor Switch with
-
10mm detection distance 12-24VDC Front inductive NPN PNP Proximity Switch transducer
-
4mm detection distance DC 10-30V rectangular Proximity Switch Sensor
-
5mm detection distance NPN DC 10-30V proximity sensor
Product Details
| Place of Origin | Hunan, China | Brand Name | F&C | |
| Model Number | F3N-15TN05-N R2M | Usage | Position Sensor | |
| Theory | Inductance Sensor | Output | Switching Transducer |
Product Description
F&C Sensing Technology has board selections of sensors.More than 3000models for option and accept OEM Order.
140 universal models in stock can be shipped at any time.and It cut leading time obviously.
Feature:
1.Competitive price
2.suitable for narrow space and easy to install.
3.Various model for option:Front Induction,Top Induction.
4.Integrated structure, waterproof, dustproof and oilproof.
5.Accept customized 5VDC proximity switch sensor.
6.Accept Customized 2Wires,different frequency proximity switch sensor.
Specification for OEM 12V-24V PNP NC small Top Induction position Sensor Switch
| Output Method | Front Induction | Top Induction |
| NPN NO | F3N-15TN05-N R2M | F3N-15DN05-N R2M |
| NPN NC | F3N-15TN05-N2R2M | F3N-15DN05-N2R2M |
| PNP NO | F3N-15TN05-P R2M | F3N-15DN05-P R2M |
| PNP NC | F3N-15TN05-P2R2M | F3N-15DN05-P2R2M |
| Detection Distance | 5mm | |
| Recommended Distance | 4mm | |
| Standard Detection Object | 15×15×1(iron) | |
| Response Frequency | 600HZ (Different Frequency can be customized) | |
| Hysteresis | within 10% of sensing distance | |
| Operating Voltage | 10-30V DC | |
| Current Consumption | Less than 8mA (No Load) | |
| Load Current | 100mA Max@30V DC | |
| Leakage Current | 1.1mA (No Load) | |
| Residual Voltage | Less than 1.0V DC (No Load) | |
| Protection circuit | Reverse circuit protection short circuit protection | |
| Operating Temperature | -25~70℃ | |
| Protection Degree | IP67(can customize IP68) | |
| Material | ABS | |
| Wire Method | 1.dia 3×2M/3 wires | |
More Product
| Category | Model | Detection Mode | Detection Distance | Standard Detection Object | Connecting Method |
| Front Induction | F3N-06TN01-N R2M | NPN NO | Max detection distance: 1.5mm Stable detection distance 0~1.0mm | 6×6×1(iron) | diameter 3mm×2M/3 wires 150mm lead line with M8 connector |
| F3N-06TN01-N2R2M | NPN NC | ||||
| F3N-06TN01-P R2M | PNP NO | ||||
| F3N-06TN01-P2R2M | PNP NC | ||||
| Top Induction | F3N-06DN01-N R2M | NPN NO | |||
| F3N-06DN01-N2R2M | NPN NC | ||||
| F3N-06DN01-P R2M | PNP NO | ||||
| F3N-06DN01-P2R2M | PNP NC | ||||
| Front Induction | F3N-08TN02-N R2M | NPN NO | Max detection distance: 2mm Stable detection distance 0~1.8mm | 8×8×1(iron) | diameter 3mm×2M/3 wires diameter 3mm×2M/2 wires 150mm lead line with M8 connector |
| F3N-08TN02-N2R2M | NPN NC | ||||
| F3N-08TN02-P R2M | PNP NO | ||||
| F3N-08TN02-P2R2M | PNP NC | ||||
| F3N-08TN02-B R2M | 2 wires NO | ||||
| F3N-08TN02-B2R2M | 2 wires NC | ||||
| Top Induction | F3N-08DN02-N R2M | NPN NO | |||
| F3N-08DN02-N2R2M | NPN NC | ||||
| F3N-08DN02-P R2M | PNP NO | ||||
| F3N-08DN02-P2R2M | PNP NC | ||||
| F3N-08DN02-B R2M | 2 wires NO | ||||
| F3N-08DN02-B2R2M | 2 wires NC | ||||
| Front Induction | F3N-12TN04-N R2M | NPN NO | Max detection distance: 4mm Stable detection distance 0~3.2mm | 12×12×1(iron) | diameter 4mm×2M/3 wires diameter 4mm×2M/2 wires 150mm lead line with M8 connector |
| F3N-12TN04-N2R2M | NPN NC | ||||
| F3N-12TN04-P R2M | PNP NO | ||||
| F3N-12TN04-P2R2M | PNP NC | ||||
| F3N-12TN04-B R2M | 2 wires NO | ||||
| F3N-12TN04-B2R2M | 2 wires NC | ||||
| Top Induction | F3N-12DN04-N R2M | NPN NO | |||
| F3N-12DN04-N2R2M | NPN NC | ||||
| F3N-12DN04-P R2M | PNP NO | ||||
| F3N-12DN04-P2R2M | PNP NC | ||||
| F3N-12DN04-B R2M | 2 wires NO | ||||
| F3N-12DN04-B2R2M | 2 wires NC |
Our Services
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
Packaging & Shipping
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
Company Information
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to allover the world.Its products cover 14 series and 300 specification. Our main product include Fiber Optic Sensor, Fiber Tube, Fiber Focus Lens, Proximity Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”
Note
-------------------------------------------------------------------------------------
1. Customize for cable length, housing material and shape.
2. The above information is only reference.
3. Any question, just feel free to let me know.
I can be reached by cellphone:86-13809275350 and Skype:lynn_liu123.
