Home > Products > Proximity sensors > M8 F&C F3C-08KS01Series Proximity Position Sensor, 2 Years warranty, 360 Degree LED View, Flush Sensor.

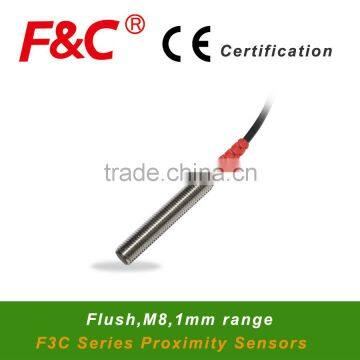

M8 F&C F3C-08KS01Series Proximity Position Sensor, 2 Years warranty, 360 Degree LED View, Flush Sensor.
USD $5 - $10
/ Piece
20 Pieces(Min.Order)
- Shenzhen Guangzhou
- Credit Card
You May Like
-
Inductive Proximity Sensor F3C-18KS05 series, M18 Cylindrical Inductive Sensor, DC12~24v, 3-wire, 2m Soft Cable.
-
Inductive Sensor F3C-18KN08 series, M18 Cylindrical Inductive Sensor, Can Be Customized 5v DC or 2-wire Type.
-
M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor
-
F&C M18 F3C-18ES05 Series, 12~24v DC switching Transducer, Short Housing Type, Flush Position Transducer
-
3-wire/PNP/NPN, M18 F3C-18EN08 Series Proximity Sensor, 12-24v DC, Switching output.
-
Big Cylindrical, 12~24VDC M30 Proximity Sensor, Position Sensor, NPN/PNP Offered, Can do 5v DC working Voltage.
Product Details
| Place of Origin | Hunan, China | Brand Name | F&C | |
| Model Number | F3C-08KS01-N/P | Usage | Position Sensor | |
| Theory | Inductance Sensor | Output | Switching Transducer |
Product Description
Product Description
F3C series Proximity sensor
1) 2M soft PUR cable;
2) 360 degrees LED view;
3) With red protective tube for protecting cable;
4) Support for customizing, 5V DC offered.
| Discriptions | Part Numbers | Output | Sensing Range | Detected Object | Cable |
| M8/Flush/Standare Housing | F3C-08KS01-N R2M | NPN.NO | 1mm | 8×8×1(iron) | φ4×2M/3-wires |
| F3C-08KS01-N2 R2M | NPN.NC | ||||
| F3C-08KS01-P R2M | PNP.NO | ||||
| F3C-08KS01-P2 R2M | PNP.NC |
| Response frequency | 1000Hz/800Hz |
| Hysteresis | 10%≤sensing distance |
| Operating voltage | DC:12~24VDC±10%/ can customize 5V |
| Current consumption | DC:≤8mA No—Load |
| Load current | DC:24V 150mA Max |
| Leakage current | DC:≤0.01mA no-Load |
| Residual votage | DC:≤1.5VDC No-load |
| Operating temperature | -20°C~+70°C |
| Material | PBTand SUS304 |
| Wiring method | 2M/3-wires |
| Protection degree | IP67 |
Diagram
