F&C M8 Sn1mm 12V-24V dc NPN type inductive proximity sensor with CE Quality Choice
- 100000 Piece / Pieces per Month
- FOB Shenzhen or Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
F&C 24V DC M8 2mm sensing Non-flush type inductive proximity switch sensor 2mm
-
M18 360 degree LED view and Short body NPN NO flush inductive proximity switch sensor
-
Dia 5mm small round shield inductive proximity switch with CE
-
M8 8*30mm short body shield proximity switch
-
M8 short body 12-24vdc PNP proximity sensor for sales
-
M18 360 degree LED View DC10-30V PNP Non-shield proximity sensor
Product Details
| Place of Origin | Hunan, China | Brand Name | F&C | |
| Model Number | F3C-08KS01-NR2M | Usage | Position Sensor | |
| Theory | Inductance Sensor | Output | Other, Switching Transducer, NPN NO |
Product Description

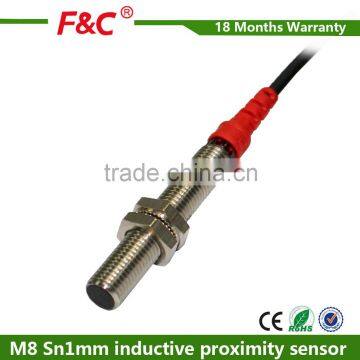

F&C M8 Sn1mm 12V-24V dc NPN type inductive proximity sensor
Feature
1.360 degree view LED Indicator
2.Housing material optional Stainless steel, Nickel-copper alloy
3.Complete rang of specification from M8 to M30 inductive proximity sensor
4.Cable and Connector connection optional
5.Circuit protection:Short-Circuit protection, Polartiy reverse protection.
M8 Series stanard inductive Proximity Sensor Specification
| Type | Standard Head | |
| Mounting Method | Flush | Non-Flush |
| Sensing Distance | 1mm | 2mm |
| Output NPN NO | F3C-08KS01-NR2M | F3C-08KN02-NR2M |
| Output NPN NC | F3C-08KS01-N2R2M | F3C-08KN02-N2R2M |
| Output PNP NO | F3C-08KS01-PR2M | F3C-08KN02-PR2M |
| Output PNP NC | F3C-08KS01-P2R2M | F3C-08KN02-P2R2M |
| Sensing Object | 8×8×1(iron,metal) | |
| Response Frequency | 1000HZ | |
| Hysteresis | within 10% of sensing distance | |
| Operating Voltage | 12~24V DC | |
| Operating Temperature | -25~70℃ | |
| Material | PBT and SUS304 | |
| Connection | dia3.0*2M/3-wires | |
| Certificate | CE | |
| Protection Class | IP67 | |
| Circuit Protection | Polarity reverse protection and Short -Circuit Protection. | |
Product display
M8 Series different size 12V-24V dc inductive proximity sensor
F&C Inductive Proximity Sensor Code Rule
1. Proximity sensor category (C:Cylinder Type; L: Cylinder double detection distance Type;N: Square Type)
2. Head Dimension( Dia 4mm, M5,6.5mm, M8, M12, M18, M30)
3. Body Length (K: Standard Length; E: Short body)
4. Mounting Method(S:Shield N: Non-Shield)
5. Detection distance(15:15mm)
6. Output Method(N: NPN NO; N2: NPN NC; P:PNP NO; P2: PNP NC;
B:2 wires NO: B2: 2 wires NC)
7. 2 meter standard soft wires
Dimension
M8 NPN 1mm 12V dc inductive proximity sensor
Wire drawing
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
F&C Sensing Technology is a leading and professional sensor supplier in China.
Our product has been sold to all over the world.Its products cover 14 series and 3000 specification.
Our main product include Fiber Optic Sensor, Fiber optic amplifier, Fiber optic Lens,
Proximity Sensor, Photoelectric sensor,Label Sensor, Light Curtain, Laser Alignment,
Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply,
Solid State Relay.
F&C SensingTechnology has been making continuous breakthrough in new technology and new application.
Our target is “What you need can be found in F&C Sensing Technology”
