Home > Products > Proximity sensors > F3N series Universal Rectangle Proximity Switches Sensors, with red tube protected from damage

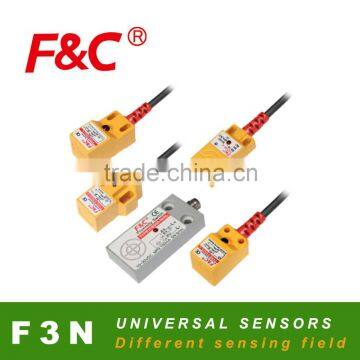

F3N series Universal Rectangle Proximity Switches Sensors, with red tube protected from damage
USD $3 - $20
/ Piece
20 Pieces(Min.Order)
- 200000 Piece / Pieces per Month
- Shenzhen Guangzhou
- Credit Card
You May Like
-
F3N series 25*25mm Top Sensing And Front Sensing Inductive Proximity Sensor, Long Sensing Range Proximity Sensor
-
F3N-18TN05 series (SN04), Square Shape Inductive Proximity Sensor, Reverse Polarity Protected, Short-Circuit Protected, IP67
-
Small Rectangle Inductive Proximity Sensor Switch(F3N-06DN01-NR2M)
-
Small 12V-24V Inductive Proximity Sensor Switch with PNP NO and NPN NC(F3N-08TN02)
-
F&C Q6 Small square Induction Proximity Sensor with CE
-
12-24V DC 8mm NPN and PNP type Small Inductive Proximity Sensor Switch(F3N-08TN02-NR2M)
Product Details
Place of Origin | Hunan, China | Brand Name | F&C | |
Model Number | F3N series | Usage | Position Sensor | |
Theory | Inductance Sensor | Output | Switching Transducer |
Product Description
Response friquency | DC:600Hz 250/second | ||||
Hysteresis | 1O%≤sensing distance | ||||
Operating voltage | DC:10~30VDC±10% | ||||
Current consumption | DC:≤8mA No—Load | ||||
Load current | DC:30V 200mA Max | ||||
Leakage current | DC:≤1.1mA no-Load | ||||
Residual votage | DC:≤1.0VDC No-load | ||||
Operating temperature | -20°C~+70°C(anti-temperature type: 120°C) | ||||
Material | ABS/PE | ||||
Wiring method | φ3×2M/3-wires, M8 3cores | ||||
Protection degree | IP67 |
Diagram
