F&C DR18RI-S40N R2M M18 40cm sensing Diffuse photoelectric sensor

FOB Price

USD $7.84 - $12.94 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

F&C DR18 series M18 40cm sensing Diffuse photoelectric sensor

Feature of DR18 series photoelectric switch sensor

1. Integrated structure, waterproof grade can reach IP66

2. Through-beam, retro-reflective, diffuse photoelectric switches for option

3. Detection distance is adjustable.

4. 90 degree connecting and direct connecting are available.

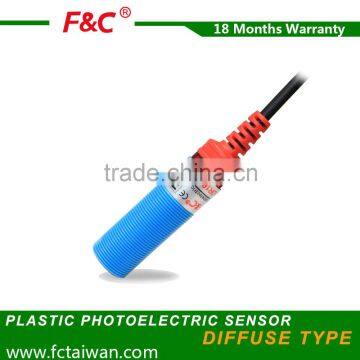

Product display

M18 40cm detection Diffuse type photoelectric switch sensor

Product specification

Model	DR18RI-S40N R2M
Output Method	NPN NO
Detection Type	Diffuse
Standard Detection Object Size	10cm*10cm(White Paper)
Detection Distance	40cm
Light Source	850nm Infrared modulated light
Operating Voltage	12-24 VDC
Response Time	0.3ms Max.
Current Consumption	15mA Max.
Load current	100mA Max at 24 VDC
Insulation Resistance	20M Ohm Min. at 500 VDC
Dielectric strength	60 seconds at 1000VAC 60HZ
Protection Degree	IP66
Operating Temperature	-10℃-50℃ (No Icing)
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Material	ABS
Wire Method	dia4*2M/-3wires
Weight	107g

Dimension Drawing

Order information

140 kinds of regular sensors have stock, it cut lead time obviously.

Sample is available and welcome.

Shipping term: FOB Shenzhen or Guangzhou; EXW, CIF, DDU and DDP are available.

Lead time: 3 working days for sample order, 7 working days for mass order.
