NPN/PNP 300mm button type laser sensor laser switch for distance
USD $95 - $150
/ Piece
5 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- Guangzhou; Shenzhen
- T/T L/C D/P D/A Credit Card
You May Like
-
laser presence sensor,laser distance sensor,photosensitive light sensor
Quality Choice
-
Micro laser sensor,red light sensor,photosensitive light sensor
-
FS-3000 LED Light source, Suitable For All Guide light Optic Fiber, Can Customize Fiber Goods.
-
FS-2000 LED Light source, Suitable For All Guide light Optic Fiber, Input Power Adapter Inside
-
One branch Guide Light Optical Fiber, Guide Light From Light Source, Using For Lighting.
-
Three Branches Guide Light Optical Fiber, Guide Light From Light Source, Three Or More Branches Lighting Point
Product Details
| Place of Origin | Hunan, China | Brand Name | F&C, F&C | |
| Model Number | JG4-YZ300N/D | Usage | Position Sensor | |
| Theory | Optical Sensor | Output | Switching Transducer |
Product Description
NPN/PNP 300mm button type laser sensor laser switch for distance
Product Description
Specifications for laser sensor laser switch:
| Model | JG4-YZ100N/D | JG4-YZ300N/D | |
| Detection distance | 100mm | 300mm | |
| Light spot | 1mm | 2mm | |
| Mini detection object | 0.06mm | ||
| Light source | laser light source | ||
| Operation voltage | DC 12~24V include 10%(P-P) | ||
| Current consumption | 100mA max | ||
| JEC/JIStype/JEC/JIS | Class 2 | ||
| Response time | 0.5ms | ||
| Differential | (two points of setting) within 20% auto-setting | ||
| Detection&blind area | >=35mm | ||
| Mechanical reliability | vibration:XYZ,5—50Hz 1hour free-faller:2m high,10 times | ||
| Electrical reliability | Wiring protection/protection/short-circuit protection | ||
| Mode of operation | Light-on/Dark-on, hold on button for above 10 Sec for switching. Default:Dark-on | ||
| indicator: Red/output, Green/stable, Default:dark-on | |||
| Operating temperature | -20~+70°C(no freezing-in) | ||
| Operating humidity | 35~85 RH | ||
| Sensitivity adjustment | adjusted by button | ||
| Output control | NPN 100mA max DC 24V | ||
| Ambient light | 5000 lux (filament lamp) ; 20000lux (sunshine) | ||
| Crust material | Plastics case | ||
| Wiring method | M8 connetor | ||
| Weight | approx. 100g | ||
Features and advantages for laser sensor laser switch:
1. LED visible light Laser sensor with 2 level reflection.
2. Smart laser sensor, easy to install and set.
3. Button type sensitivity adjustment .
4. Single or two-point setting.
5. OEM order accepted.
Know more information about the products, welcome to contact me at any time via skype: Jelena_wang2016
product drawing

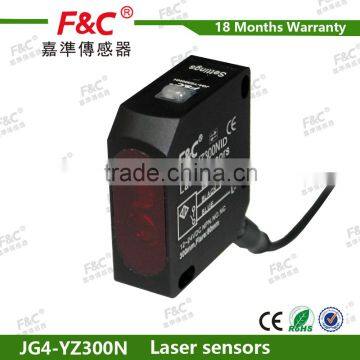

Photos for laser sensor laser switch
Dimesion for laser sensor laser switch:
Packaging & Shipping
1. We will ship our product aboard with standard export package and customized package also accepted. Generally, all order will be shipped within 5 days after payment confirmed.
2. For small quantity, We will Ship our product to you by express.
3. For mass production , We will ship our product to you by Air or sea.
Company Information
Our Services
1. Prompt reply to our customer, all customers will be replied within 24 hours.
2. Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
