FD-20R Reed pipe magnetic sensor with CE certificate Quality Choice

FOB Price

USD $1 - $4 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

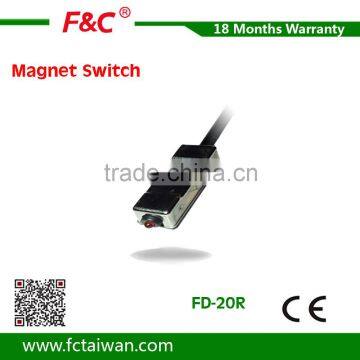

FD-20R Reed pipe magnetic sensor with CE certificate

Product Description

Product Specification

Model	FD-20R
Switch Logic	Normal Open
Switch Type	Reed Pipe
Operating Voltage	5-120DC/AC
Max. Current	100mA
Max Contact Capacity	3.5W
Internal Current Consumption	No
Residual Voltage	2.5V Max @10mA
Leakage Current	No
Indicator	Red LED
Max Switching Frequency	1000HZ
Operating Temperature	-10~70degree
Impact Resistance	30G
Vibration Resistance	9G
Waterproof Grade	IP67
Short-Circuit Protection	No
Reverse Polarity Protection	No
Cable	diameter 2.8, 2C Oil resistance PVC

F&C FD series magnetic sensors are suitable for different shape cylinder.
