Product Details
| Place of Origin | Hunan, China | Brand Name | F&C | |
| Model Number | JG3-S100N | Usage | Position Sensor | |
| Theory | Optical Sensor | Output | Digital Sensor |
Product Description

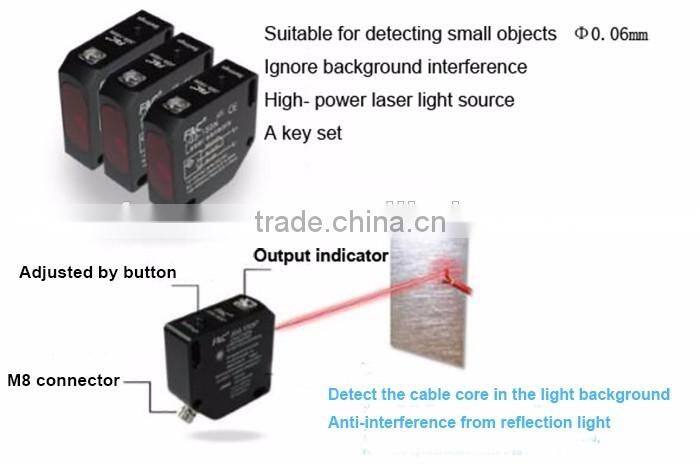

Feature of JG series laser sensor
1.A laser LED,visible light,reflective class 2
2.Push-button adjustment method
3.Can be set to a single point or two-point set
4.Small point ,JG5-150N 100MM spot only 1mm

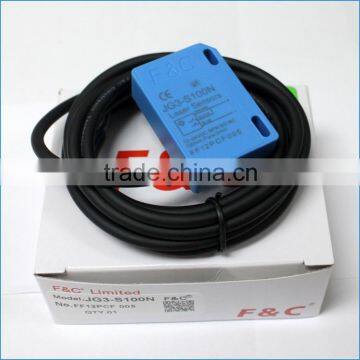

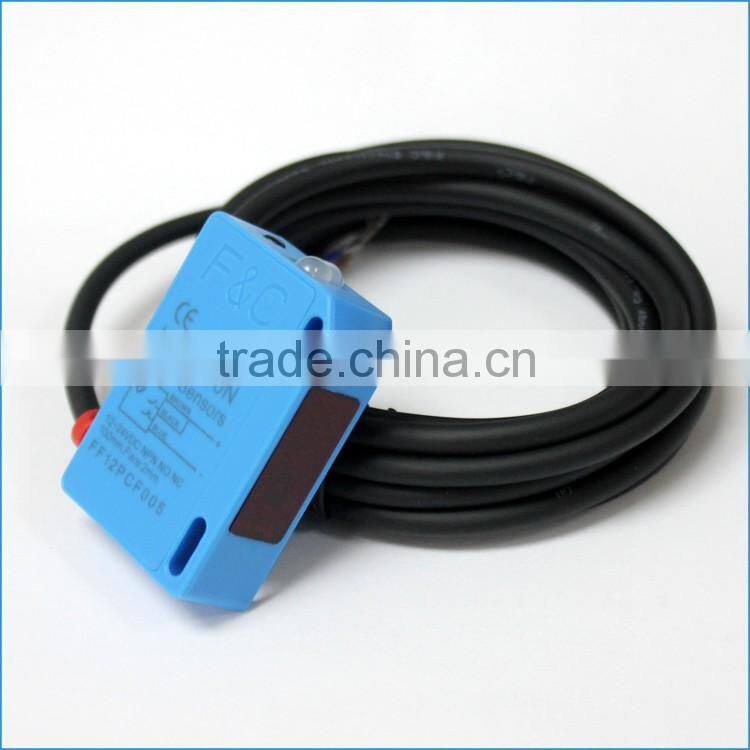

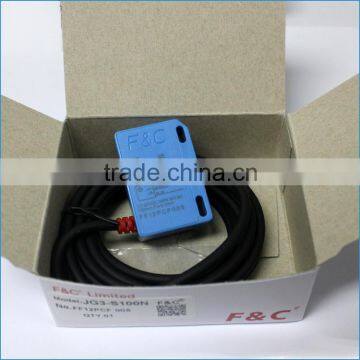

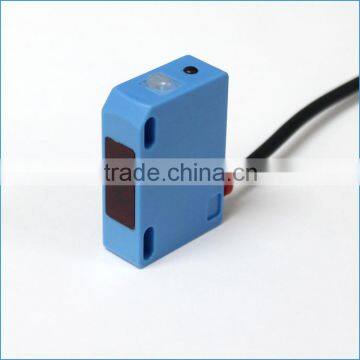

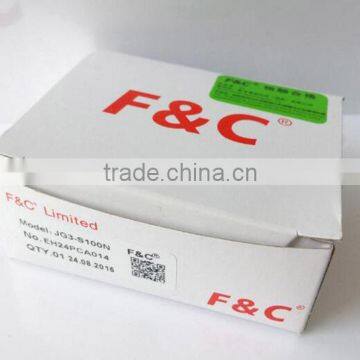

Product display

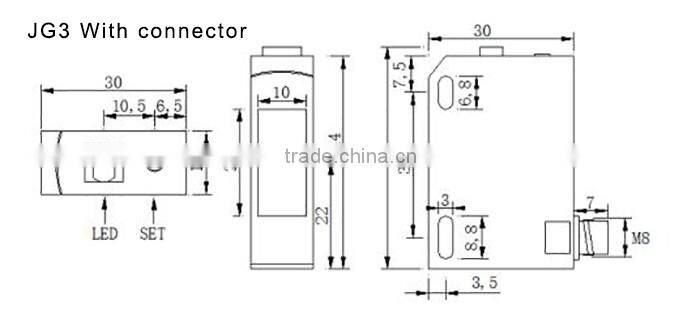

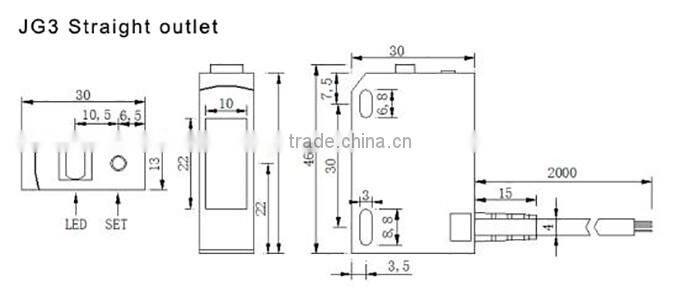

Dimension Drawing
Specification
| Model | JG3-S100N | JG3-S300N | |
| Detection distance | 100mm | 300mm | |
| Light spot | 1mm | 2mm | |
| Mini detection object | 0.06mm | ||
| Light source | laser light source | ||
| Operation voltage | DC 12~24V include 10%(P-P) | ||
| Current consumption | 100mA max | ||
| JEC/JIStype/JEC/JIS | Class 2 | ||
| Response time | 0.5ms | ||
| Differential | (two points of setting) within 20% auto-setting | ||
| Detection&blind area | >=35mm | ||
| Mechanical reliability | vibration:XYZ,5—50Hz 1hour free-faller:2m high,10 times | ||
| Electrical reliability | Wiring protection/protection/short-circuit protection | ||
| Mode of operation | Light-on/Dark-on, hold on button for above 10 Sec for switching. Default:Dark-on | ||
| indicator: Red/output, Green/stable, Default:dark-on | |||
| Operating temperature | -20~+70°C(no freezing-in) | ||
| Operating humidity | 35~85°C RH | ||
| Sensitivity adjustment | adjusted by button | ||
| Output control | NPN 100mA max DC 24V | ||
| Ambient light | 5000 lux (filament lamp) ; 20000lux (sunshine) | ||
| Crust material | Plastics case | ||
| Wiring method | M8 connetor | ||
| Weight | approx. 100g | ||
