High quality 100mm LED light reflective laser sensor for machine automation
USD $95 - $150
/ Piece
1 Piece(Min.Order)
- 50000 Piece / Pieces per Month
- Guangzhou; Shenzhen
- Credit Card
You May Like
-
New products 2016 F&C button adjustable laser distance sensor switch
-
Button setting hot sale visible light sensor sopt 1mm SN 100mm laser light sensor
-
laser photoelectric switch, laser optic sensor,reflection class 2
-
NPN/PNP 300mm button type laser sensor laser switch for distance
-
laser presence sensor,laser distance sensor,photosensitive light sensor
Quality Choice
-
Micro laser sensor,red light sensor,photosensitive light sensor
Product Details
| Place of Origin | Hunan, China | Brand Name | F&C, F&C | |
| Model Number | JG4-YZ100N/D | Usage | Position Sensor | |
| Theory | Optical Sensor | Output | Switching Transducer |
Product Description
High quality 100mm LED light reflective laser sensor for machine automation
Product Description
Specifications for laser sensor:
| Model | JG4-YZ100N/D | JG3-S300N/D | |
| Detection distance | 100mm | 300mm | |
| Light spot | 1mm | 2mm | |
| Mini detection object | 0.06mm | ||
| Light source | laser light source | ||
| Operation voltage | DC 12~24V include 10%(P-P) | ||
| Current consumption | 100mA max | ||
| JEC/JIStype/JEC/JIS | Class 2 | ||
| Response time | 0.5ms | ||
| Differential | (two points of setting) within 20% auto-setting | ||
| Detection&blind area | >=35mm | ||
| Mechanical reliability | vibration:XYZ,5—50Hz 1hour free-faller:2m high,10 times | ||
| Electrical reliability | Wiring protection/protection/short-circuit protection | ||
| Mode of operation | Light-on/Dark-on, hold on button for above 10 Sec for switching. Default:Dark-on | ||
| indicator: Red/output, Green/stable, Default:dark-on | |||
| Operating temperature | -20~+70°C(no freezing-in) | ||
| Operating humidity | 35~85 RH | ||
| Sensitivity adjustment | adjusted by button | ||
| Output control | NPN 100mA max DC 24V | ||
| Ambient light | 5000 lux (filament lamp) ; 20000lux (sunshine) | ||
| Crust material | Plastics case | ||
| Wiring method | M8 connetor | ||
| Weight | approx. 100g | ||
Features and advantages for laser sensor:
1. LED visible light Laser sensor with 2 level reflection.
2. Smart laser sensor, easy to install and set.
3. Button type sensitivity adjustment .
4. Single or two-point setting.
5. OEM order accepted.
Know more information about the products, welcome to contact me at any time via skype: Jelena_wang2016
product drawing

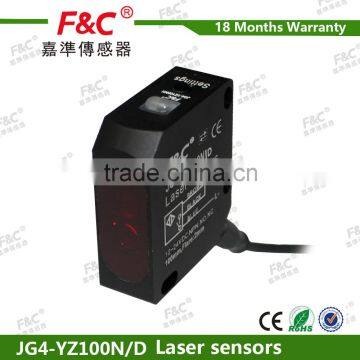

Photos for laser sensor:
Dimesion laser sensor:
Packaging & Shipping
1. We will ship our product aboard with standard export package and customized package also accepted. Generally, all order will be shipped within 5 days after payment confirmed.
2. For small quantity, We will Ship our product to you by express.
3. For mass production , We will ship our product to you by Air or sea.
