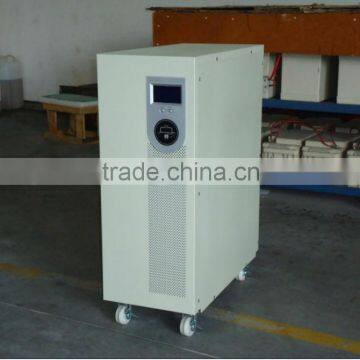

single phase true online 10 kva high frequency ups
USD $400 - $1,300
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- Foshan
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Greentechy | |
| Model Number | HP-C10K | Phase | Other, Single phase and Three phase | |
| Protection | Other, Short Circuit, Overload | Weight | 44KG | |
| Output Voltage | 220/230VAC | Type | Other, On-line, High frequency online indoor UPS | |
| Application | Other, All kinds office equipment,computer |
Product Description
Specifications
1. True online double conversion2. Controlled by DSP+CPU
3. DC start & Auto restart function
4. Adaptable with generator
Welcome to visit us! you can contact me directly, sales01 at , skype: greentechy-sales01
Features:
1.True on-line double conversion technology
2.Highest reliability and maximum performance for power parallel and redundancy N+X
3.Super wide input voltage range and fully AVR
4.High input power factor
5.Zero transfer time
6.Controlled by fully digitized DSP+CPU
7.Self diagnosis and protection
8.Protection against all types of power problems
9.Miniaturization design,save on invaluable space
10. No add-on CNTL unit required for future expansion
11.Advanced IGBT power components,which enhancing the overall reliability and conversion efficiency
12.Equipped with Maintenance Bypass Switch to achieve online maintenance
13.Smart local and distance monitoring capability with RS232 port,and compatible with SNMP
14.LCD display with information available at a glance
Model: HP- | E6022M | E6022L | E1032M | E1032L | E1034L | E1534L | E2034L | |||||||
C6022M | C6022L | C1032M | C1032L | C1034L | C1534L | C2034L | ||||||||
Max.capacity(VA/W) | 6KVA | 6KVA | 10KVA | 10KVA | 10KVA | 15KVA | 20KVA | |||||||
Input | Input wiring | Single-phase line two+Ground line | Three-phase line four+Grround line | |||||||||||
Voltage range | 176--276VAC | 304--478VAC | ||||||||||||
Frequency range | 46--54 Hz | |||||||||||||
Power factor | ≥0.95 | |||||||||||||
Output | Voltage | 220VAC±2% | ||||||||||||
Frequency | Input synchronized the supply frequency(line mode), 50 Hz±0.1%(Battery mode) | |||||||||||||
Power factor | 0.7 | |||||||||||||
Current crest artio | 3:1 | |||||||||||||
Wavefrom | Sine wave | |||||||||||||
Overload capacity | 110%-150% load, change to bypass after 3 seconds, 150% load holds 300ms. | |||||||||||||
Standard backup time(full or halfoad) | >7′/20′ | >5′/30′ | ||||||||||||
Efficiency | >91% | >90% | ||||||||||||
Voltage of the battery | 240VDC | |||||||||||||
Transfer time | Zero interruption | |||||||||||||
Automatic Bypass | Integrated | |||||||||||||
Indicator | Indicates load/battery capacity,UPS running states etc | |||||||||||||
Audible alarm | Battery discharge | Sounding every 4 seconds when mains fails | ||||||||||||
UPS Abnormal | Beeping continuously | |||||||||||||
Parellel Port (option) | Up to three units in parallel for power redundancy ang load sharing | |||||||||||||
Communication interface | RS232+SNMP(option) | |||||||||||||
Operating environment | Temperature | 0--40 | ||||||||||||
Humidity | 20%-90%,No condensate | |||||||||||||
External/Shipping Size (W×D×H) | 260×570×720/450×705×1000 | |||||||||||||
Net/Gross weight(kg) | 84/94.5 | 35/52 | 84/94.5 | 35/44 | 35/48 | 55/72 | 55/72 | |||||||
Option | (SNMP Adapter),(Battery cubicle),(Parallel Port),(Maintenance Switch) | |||||||||||||
