Home > Products > Home Power Inverter > Home inverter,LCD/LED,best home inverter(Power frequency design high quality)

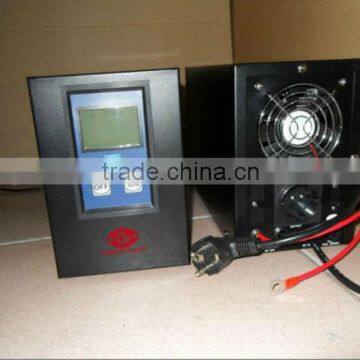

Home inverter,LCD/LED,best home inverter(Power frequency design high quality)

FOB Price

USD $60 - $100 / Piece

50 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Foshan guangzhou shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Greentechy
Model Number	Soho-C500W-1KW	Output Power	Other, 500W-1KW
Output Type	Single	Size	320 x 130 x 190
Weight	7-26	Input Voltage	12VDC/24VDC
Output Voltage	110/120/220/230VAC	Type	Other, AC-DC-AC home inverter or DC-AC home inverter, Pure sine wave home inverter
Output Frequency	50Hz/60Hz	Output Current	15A

Product Description

Specifications

1. Pure sine wave,CPU control.
2. Wide input range of 110-280V.
3. Power frequency design.
4. Compatible with generator.

NEW HOME INVERTER, PURE SINE WAVE INVERER, BEST OFFER!!!

Can be with different loads, very wide input range of 110v-280v, double layer PCB board!

Features:

1. Pure sine wave output,home inverter can be used with different house appliance TV,refrigerator,fan,air conditioner,induction cooker,micro-wave over etc.

2. Superior performance from CPU control technology.

3. Protection for over-load,short circuit,over-voltage,low-voltage,over-heating etc.

4. Concise LED display and distinctive LCD display are optional.

5. Which satisfy the power supply for different back up time.

6. Intelligent battery management with protection against over-charged and over-discharged etc.

7. Wide range of input voltage,accurate output,AVR function.

8. Generator compatibly and external battery connection achievable

Technical Specification:

Model Soho-C****		301	401	501	601	751	102
Rated capacity(W)		300W	400W	500W	600W	750W	1000W
Output	Commercial power range(VAC)	100/110/120/127/220/ 230(+25%,-35%)
	AVR Voltage range (VAC)	100/110/120/127/220/ 230±10% (Auto-sensing)
	Transfer time	Typical:5ms(Including detection time)
Battery	DC Voltage	12DVC	12/24DVC		24DVC
Appearance	Body size(mm) L x W x H	320×130×190
	Size(mm) L×W×H	480×430×315(2 piece)
	Net weight (kg)	5.0	6.0	7.0	8.0	10.0	11.0
	Gross weight (kg)	14.0	16.0	18.0	20.0	24.0	26.0

Input	Frequency(Hz)	60/50±10%
Output	Waveform	Sine wave
Output	Frequency(Hz)	Commercial power supply :shared frequency with the commercial inversion state:60Hz/50Hz ±0.5
Protection	Overload	IPS automatically shutdown if overload exceeds 120% of normal value for 10 seconds,IPS automatically resume work if overload comes back to rated load.
Battery	Type	Sealed,maintenance-free lead acid
	Recharge current	15A(Maximum)
	Battery protection	Automatic self-test,discharge protection,over-charging protected,smart management system.
