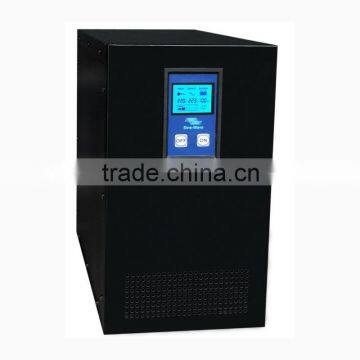

Pure sine wave Soho-C1500W-3600W best home inverter(Power frequency design high quality)

FOB Price

USD $150 - $330 / Piece

20 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Foshan

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Greentechy
Model Number	Soho-C1500W-3600W	Output Power	Other, 1500W-3600W
Output Type	Single	Size	460 x 220 x 385
Weight	22-30	Input Voltage	24VDC/48VDC
Output Voltage	110/120/220/230VAC	Type	Other, AC-DC-AC home inverter, Pure sine wave home inverter
Output Frequency	50Hz/60Hz	Output Current	15A

Product Description

Specifications

1. Pure sine wave,CPU control.
2. Wide input range of 110-280V.
3. Power frequency design.
4. Compatible with generator.

Features:

1. Pure sine wave output,home inverter can be used with different house appliance TV,refrigerator,fan,air conditioner,induction cooker,micro-wave over etc.
2. Superior performance from CPU control technology.
3. Protection for over-load,short circuit,over-voltage,low-voltage,over-heating etc.
4. Concise LED display and distinctive LCD display are optional.
5. Which satisfy the power supply for different back up time.
6. Intelligent battery management with protection against over-charged and over-discharged etc.
7. Wide range of input voltage,accurate output,AVR function.
8. Generator compatibly and external battery connection achievable

Technical Specification:

Model Soho-C****		122	152	182	202	302	402	502	602	752	103
Rated capacity(W)		1200W	1500W	1800W	2KW	3KW	4KW	5KW	6KW	7500W	10KW
Output	Commercial power range(VAC)	100/110/120/127/220/ 230(+25%,-35%)					100/110/120/127/220/ 230±20%
	AVR Voltage range(VAC)	100/110/120/127/220/ 230±10% (Auto-sensing)					(NO)
	Transfer time	Typical:5ms(Including detection time)
Battery	DC Voltage	24/48VDC					48/96VDC		96/192VDC
Appearance	Body size(mm) L×W×H	460×220×385					460×260×470			550×262×605
	Size(mm) L×W×H	504×272×445 (1 piece)					555×345×530 (1 piece)			645×350×730 (1 piece)
	Net weight (kg)	17	22.0	25.0	23.0	28.0	32.0	33.0	39.0	63.0	64.0
	Gross weight (kg)	19.7	24.0	27.0	25.0	30.0	34.0	35.0	41.0	73.0	74.0

Input	Frequency(Hz)	60/50±10%
Output	Waveform	Sine wave
Output	Frequency(Hz)	Commercial power supply :shared frequency with the commercial inversion state:60Hz/50Hz ±0.5
Protection	Overload	IPS automatically shutdown if overload exceeds 120% of normal value for 10 seconds,IPS automatically resume work if overload comes back to rated load.
Battery	Type	Sealed,maintenance-free lead acid
	Recharge current	15A(Maximum)
	Battery protection	Automatic self-test,discharge protection,over-charging protected,smart management system.
