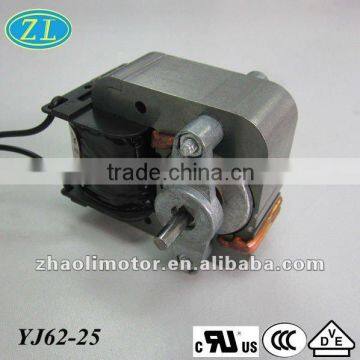

220v ac electric motor Air pump motor Shaded Pole Motor YJ62-25: universal motor, small powerful electric motors
- Shenzhen
- T/T
You May Like
-
220v,50hz,Insulation class B, single phase 2800rpm motor YJ62-25: motor electric,ac electrical motor for nebulizer,air pump
-
Electric AC motor: SP exhaust fan motor CE/UL/VDE certified motor high speed low noise for device with pump assembly
-
Oven fan motor Nebulizer motor Electric motor Ac motor Shaded Pole Motor YJ62-25: high quality motor manufacturer
-
Asychronous motor Small electric motors High torque low rpm electric motor Shaded Pole Motor YJ62-14: VDE/UL/CE/CUL/CCC
-
Small electric motors Fan motor Electrical motor Shaded Pole Motor YJ62-20 for Oven, Electric fan, Humidifier,Heater, Fireplace
-
Electric fan motor Asychronous motor Electrical motor Shaded Pole Motor YJ62-20: 230V,50hz,22w, 2000-2500rpm,<43dB,CL.B
Product Details
| Brand Name | Zhaoli Motor | Model Number | YJ62-25 | |
| Type | Asynchronous Motor | Frequency | 60HZ | |
| Output Power | 5-100W | Protect Feature | Other, Rust-proof | |
| Phase | Single-phase | Certification | CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL | |
| AC Voltage | 208-230 / 240 V | Place of Origin | Guangdong, China |
Product Description
Specifications
Rated Voltage:100-240VACLaminations: 8--25mm
Size: 48*48mm
Life: 3000 Hours Min
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
Series: YJ62-25
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:
Ventilator, Nebulizer, Vacuum pump, Air pump
Motor with Pump assembly:
