Home > Products > YJ62 Shaded Pole Motor > 230V 60HZ fan motor
230V 60HZ fan motor
- Shenzhen
- T/T
You May Like
-
High quality long life CE/UL/VDE certified ac motor: Shaded pole motor for air compressor nebulzier oxygen concentrator
-
120v 220v air compressor pump and motor electric shaded pole motor
-
ventilation fan motor YJ62-45
-
Ventilator motor high speed steady operation: SP motor, 220V 50/60Hz CE/UL/VDE certified
-
220v ventilator motor YJ62-25
-
High torque low rpm electric motor Ac small gear motorYJ62-30:100-240V,50/60HZ,Insulation class A/E/B/F/H
Product Details
| Brand Name | Zhaoli Motor | Model Number | YJ62-45 | |
| Type | Asynchronous Motor | Frequency | 50/60 | |
| Output Power | 5-100W | Phase | Single-phase | |
| Certification | CCC, ROHS, UL, VDE, Other, CCC, ROHS, UL, VDE, CUL | AC Voltage | Other, 100-240V | |
| Place of Origin | Guangdong, China |
Product Description
Specifications
Characteristics: Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenanceSingle Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, produceing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Application:
Ovens, Microwave ovens, Air-conditioners, Refrigerators, Washing machines, Fan heaters, Ventilators, Humidifiers, Water-pumps, Air-fresheners
Product General Performance Parameters:
Voltage-----------------------100-240VAC
Frequency-------------------50/60HZ
Power-------------------------5-100W
Insulation Class-------------A/E/B/F/H
Noise--------------------------less than 43Db (A)
Life----------------------------5000-10000Hours
Core Thickness-------------12-40mm
Size----------------------------62.5*62.5mm
Shaft Diameter(mm)--------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
More Pictures:

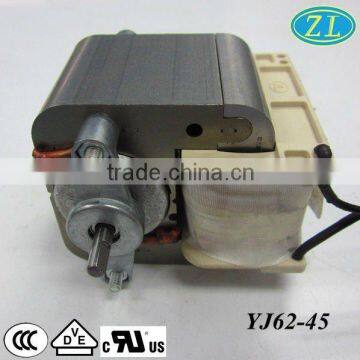

YJ62-45
Welcome to contact us and visit our factory!
