Home > Products > YJ62 Shaded Pole Motor > High torque low rpm electric motor Ac small gear motorYJ62-30:100-240V,50/60HZ,Insulation class A/E/B/F/H

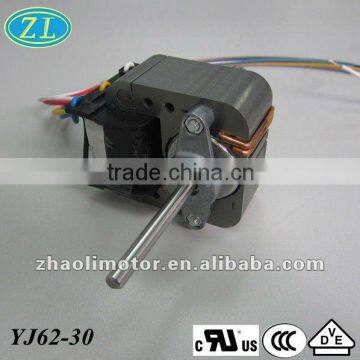

High torque low rpm electric motor Ac small gear motorYJ62-30:100-240V,50/60HZ,Insulation class A/E/B/F/H
- Shenzhen
- T/T
You May Like
-
Small electric motors Asynchronous motorYJ62-30:110V, 50/60hz,Insulation class E,electric motor for air pump,nebulizer
-
Ac motor high rpm Ac shaded pole motor electricYJ62-30:exhaust fan motor air pump motor electric motor specifications
-
Motor electric Small powerful electric motors Shaded pole motorYJ62-30:120/220v, 50/60hz low rpm electric motors
-
Motor ac Electric fan motor Shaded Pole Motor YJ62-30: 100-240v,50/60hz,2500-3000rpm,small powerful electric motors
-
Electrical motor Air compressor nebulizer motor YJ62-30:air pump motor,ventilator fan motor,electric motor
-
220v 50hz 2400-2800rpm Electric motor Small electric motors for oxygen machine,nebulizer,air pump,oven,venilator
Product Details
| Brand Name | Zhaoli Motor | Model Number | YJ62-30 | |
| Type | Asynchronous Motor | Frequency | 50/60HZ | |
| Output Power | 5-100W | Protect Feature | Other, Rust-proof | |
| Phase | Single-phase | Certification | CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL | |
| AC Voltage | 115/120 V | Place of Origin | Guangdong, China |
Product Description
Specifications
Rated Voltage:100-240VACLaminations: 8--25mm
Size: 48*48mm
Life: 3000 Hours Min
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
Series: YJ62-30
Motor with pump assembly:
Motor with cross-flow fan assembly:
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:
Ventilator, Nebulizer, Vacuum pump, Air pump, Oven
Contact Us
- Shenzhen Zhaoli Motor Co., Ltd.
- Contact nameChristine Ma Chat Now
- Phone86-755-81730550
- Address8 &9 Building, Shapuwei NO.2 Industrial Area, Songgang, Bao an, Shenzhen, CHINA, Shenzhen, Guangdong
