Home > Products > YJ48 Shaded Pole Motor > Small powerful electric motors Electric fan motor YJ48-20: motor electric, low rpm motors,ac shaded pole motor

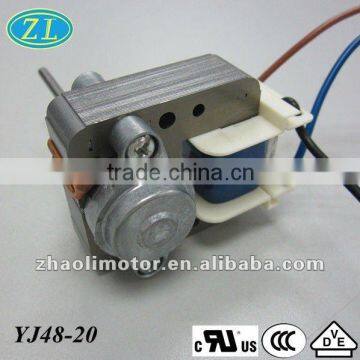

Small powerful electric motors Electric fan motor YJ48-20: motor electric, low rpm motors,ac shaded pole motor
- Shenzhen
- T/T
You May Like
-
230V 60HZ Shaded Pole Motor
-
YJ48-10 Shaded Pole Motor
-
YJ48-20 Shaded Pole Motor
-
YJ48-20 Shaded Pole Motor
-
Motor electric Asynchronous motorYJ48-20:electric motor specifications for humidifier, heater fan,oven,air conditioner
-
Small powerful electric motors Electric fan motor YJ48-20:120v,60hz low rpm ac electric motor for humidifier,oven,fan heater
Product Details
| Brand Name | Zhaoli Motor | Model Number | YJ48-20 | |
| Type | Asynchronous Motor | Frequency | 60HZ | |
| Output Power | 5-100W | Protect Feature | Other, Rust-proof | |
| Phase | Single-phase | Certification | CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL | |
| AC Voltage | 115/120 V | Place of Origin | Guangdong, China |
Product Description
Specifications
Rated Voltage:100-240VACLaminations: 8--25mm
Size: 48*48mm
Life: 3000 Hours Min
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
Series: YJ48-20
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:
Humidifier, Heater, Oven, Air-conditioner, Slide projector
