Home > Products > YJ48 Shaded Pole Motor > 120V low torque high rpm Electric oven fan motor Shaded Pole Motor YJ48-12: motor manufacturer

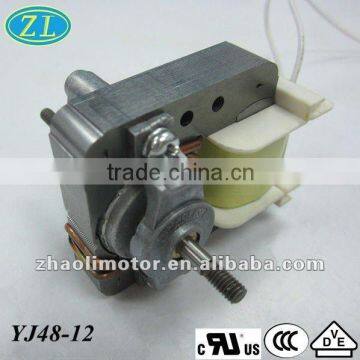

120V low torque high rpm Electric oven fan motor Shaded Pole Motor YJ48-12: motor manufacturer
- Shenzhen
- T/T
You May Like
-
Mini Shaded Pole Motor Electric fan motorYJ48-20 for heater fan, oven, air-conditioner, air cooler
-
High quality high rpm low noise Shaded pole motor: CE/UL/VDE certified single-phase ac motor for home appliance heater fans
-
220V 50HZ 48 Shaded Pole Motor
-
120V 60HZ shaded pole motor YJ48-16
-
110v 60Hz 3400rpm 7.5w shaded pole motor for humidifier, fan heater, air conditioner
-
220v 50Hz 2800rpm 8.1w shaded pole motor for humidifier, fan heater, air conditioner
Product Details
| Brand Name | Zhaoli Motor | Model Number | YJ48-12 | |
| Type | Asynchronous Motor | Frequency | 60HZ | |
| Output Power | 5-100W | Protect Feature | Other, Rust-proof | |
| Phase | Single-phase | Certification | CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL | |
| AC Voltage | 115/120 V | Place of Origin | Guangdong, China |
Product Description
Specifications
Rated Voltage:100-240VACLaminations: 8--25mm
Size: 48*48mm
Life: 3000 Hours Min
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
Series: YJ48-12
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:
Humidifier, Heater, Oven, Air-conditioner, Slide projector
