Home > Products > YJ48 Shaded Pole Motor > 220v 50Hz 2800rpm 8.1w shaded pole motor for humidifier, fan heater, air conditioner
220v 50Hz 2800rpm 8.1w shaded pole motor for humidifier, fan heater, air conditioner
- Shenzhen
- T/T
You May Like
-
230v 50Hz 2400rpm 21w shaded pole motor for humidifier, fan heater, air conditioner
-
115v 60Hz high rpm ac motor for air conditioner,humidifier,fan heater
-
220v 50Hz low rpm induction ac motor for air conditioner,humidifier,fan heater
-
120v 60Hz low rpm induction motor for humidifier, fan heater, air conditioner
-
Oven Blower Fan Motor YJ48-20: sp motor, 120V, 60hz, CL.B
-
120V 60HZ Oven Blower Fan Motor YJ48-20: sp motor, CL.B
Product Details
| Brand Name | Zhaoli Motor | Model Number | YJ48-14 | |
| Type | Asynchronous Motor | Frequency | 50/60 | |
| Output Power | 5-100W | Phase | Single-phase | |
| Certification | CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL | AC Voltage | Other, 100-240V | |
| Place of Origin | Guangdong, China | Efficiency | Other, IE 3, 2~5% higher than congeneric motor |
Product Description
Specifications
1.Voltage: 100-240VAC2.Frequency: 50/60HZ
3.Power: 5-100W
4.Insulation Class: A/E/B/F/H
5.Noise: less than 35db(A)
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, produceing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Application:
Ovens, Microwave ovens, Air-conditioners, Refrigerators, Washing machines, Fan heaters, Ventilators, Humidifiers, Water-pumps, Air-fresheners
Product General Performance Parameters:
Voltage-----------------------100-240VAC
Frequency-------------------50/60HZ
Power-------------------------5-100W
Insulation Class-------------A/E/B/F/H
Noise--------------------------less than 35Db (A)
Life----------------------------5000-10000Hours
Core Thickness-------------12-40mm
Size----------------------------48*48mm
Shaft Diameter(mm)--------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
More Pictures:

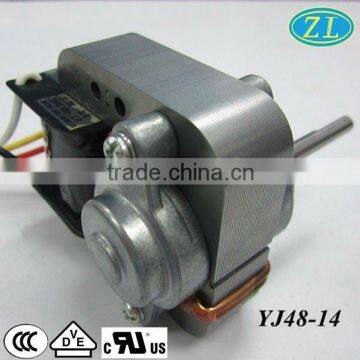

YJ48-14
Welcome to contact us and visit our factory!
