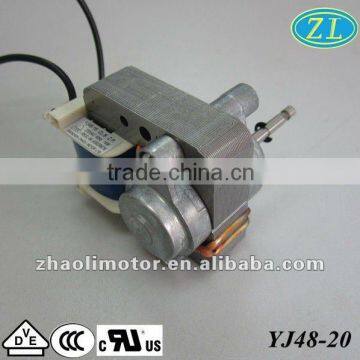

YJ48-20Shaded pole motor Low rpm motors Electric motor specifications for humidifer,heater,oven,air-conditioner,slide projector
- Shenzhen
- T/T
You May Like
-
Cross flow fan Small electric motorYJ48-16 with electric motor specifications: shaded pole motor for fireplace, oven, fan heater
-
Cross flow fan electrical motorYJ48-16 with electric motor specifications: shaded pole motor for fireplace, oven, fan heater
-
Cross flow blower Small electric motorsYJ48-16 Air conditioner motor Electric motor specifications UL CUL VDE ROHS CCC CE
-
Cross flow fan Small electric motors Shade pole motorYJ48-16 Air conditioner motor Fan motor UL CUL VDE ROHS CCC CE
-
Cross flow fan Heater fan motor Shade pole motorYJ48-16 Air conditioner motor Fan motor UL CUL VDE ROHS CCC CE
-
Cross flow fan Small motor Shade pole motorYJ48-16 for fireplace,ventilation,heater,cooler,air conditionerUL CUL VDE ROHS CCC CE
Product Details
| Brand Name | Zhaoli Motor | Model Number | YJ48-20 | |
| Type | Asynchronous Motor | Frequency | 60HZ | |
| Output Power | 5-100W | Protect Feature | Other, Rust-proof | |
| Phase | Single-phase | Certification | CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL | |
| AC Voltage | 115/120 V | Place of Origin | Guangdong, China |
Product Description
Specifications
Rated Voltage:100-240VACLaminations: 8--25mm
Size: 48*48mm
Life: 3000 Hours Min
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
Series: YJ48-20
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:
Humidifier, Heater, Oven, Air-conditioner, Slide projector
