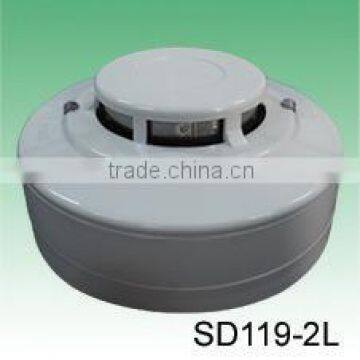

UL approved Photoelectric Smoke Detector (Conventional)
- Ningbo or Shanghai
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | sentek | |
| Model Number | SD119-2L |
Product Description
Conventional smoke detector with UL and EN approvals
Feartures:
1) Advanced detection and discrimination algorithms
2) Easy installation and maintenance
3) Polished low-profile housing design
4) Durable sensor head, no need for replacement
5) SMD circuit board design: satisfactory quality and reliability guaranteed
6) Integrated heat detector for SD119-2H and SD119-4H models
7) N/C (normal / close) and N/O (normal / open) relay output ways for option
8) AR (auto reset) function for security systems (optional for 4-wire models)
9) Sensor base: standard and Schottky diode style for option
10) With two LED, more 360 degree visual angle
Smoke Sensitivity: | per UL268 or EN54-7 |
Ceiling Spacing: | 50 foot rating for heat sensor (55degree) |
Reset Voltage: | less than 1 volt |
Reset Time: | less than 1 second |
Alarm Indicator: | LED continuously emitting red light |
Remote Output: | 25 mA max., diode gate |
Temperature Range: | -10°C to 50°C |
Permissible Current: | 80mA maximum |
Humidity: | 0 to 95% RH, no condensation or icing |
Alarm Contact: | (for 4-wire) NO or NC Operation, Form A: 1.0A@30VDC/0.5A@125VAC |
Dimensions: | 100mm (dia) x 46mm (ht) with base |
Weight: | 130g/set with base |
