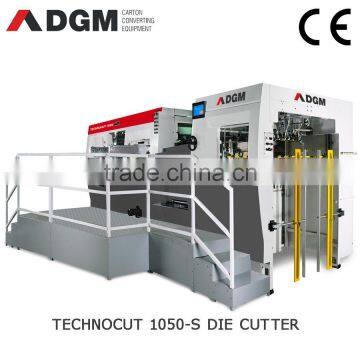

TECHNOCUT 1050S Automatic die cutting and creasing With Stripping Unit

Converting

Pile Height

1). Feeder section:

• Automatic feeder with non-stop system.

• Pallet & cart direct load

• 4 lift-up and 4 delivery suckers,designed to handle a wide range of materials from paper to corrugated board. They guarantee the accuracy,reliability and smoothness of paper feeding.

• Double sheet detector.

2).Register table

• Side-register table with 6 belts.

• 2 register side guides working with pulling and pushing system.

• 2 register front lays,independently adjustbale.

3).Press section

• Closed chase with center-line device for fast positioning of the die.

• Cutting plate 5 mm thickness.

• Pressure control system,can be easily adjusted through touch screen.it has a security system to avoid any damage in the press.

• Manual& automatic lubrication system.

• 5 light weight gripper bars.

• Turn-over bracket for cutting chase and honeycomb chase.

• Pneumatic lock & release system for cutting chase and honeycomb plate.

4).Stripping section

• Optimized cam movement curve that guarantees stripping stability and accuracy.

• Quick-locking and center-line system to assure the waste is cleared with accuracy.

5).Delivery section

 • Non-stop device with automatic conveyor at delivery.

• Founded in 1985 under the previous name:

Taiwan Bi Cheng machinery, first Technofold ES series folder gluer into production.

• 1986-1989 started exporting to Southeast Asia.

• In 1990 sold the first folder gluer in China, opened domestic market.

• 1993 Laminating machine ETH series into production.

• 1998 Automatic die-cutter Technocut series into production.

• 2004 New 13,000 sqm.facilities in Huizhou,Guangdong province.

• Well communicated with important cities like Hong Kong, Shenzhen and Guangzhou

• 2007 CE certifications for all range of products.

• 2008 attended Drupa exhibition for the first time.

• 2012 Smartfold series intelligent folder gluer into production
