TECHNOCUT Fully Automatic flat bed creasing and die cutting machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port ShenZhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Food, Beverage, Commodity, Medical, Other, Food, Beverage, Commodity, Medical, Machinery & Hardware
Packaging Type	Cartons, Film, Other, Cartons, Film, corrugated boards	Packaging Material	Paper
Automatic Grade	Automatic	Driven Type	Mechanical
Voltage	380	Power	380V
Place of Origin	China	Brand Name	DGM
Model Number	BC-1050	Weight	15Ton
Dimension(LWH)	6.14.22.45m	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.Product name: auto creasing and die cutting machine
2.Speed:7500s/h
3.cardboards:max.2000g/m2
4.Corrugated:4mm
5.G.W:15T

TECHNOCUT Fully Automatic flat bed creasing and die cutting machine

Product Description

1. Introduction

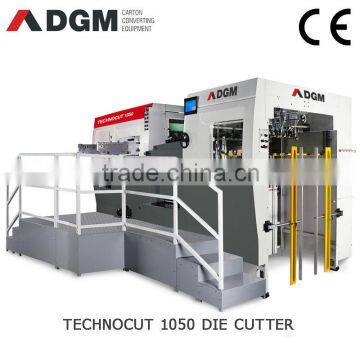

TECHNOCUT 1050 Automatic Die Cutting Machine. It can run large formats.High precision,high speed,easy to operate,quick changeovers,durability and stable performance. Features that make this machine one of the best options available.

2. Technical Parameters:

A. Specifications:

Processed Materials
Paper	from 80g/m²
Carton board	max.2000g/m²
Corrugated board	max.4mm
Capability
Sheet size	min.360*400mm
Sheet size	max.740*1050mm
Speed	7500s/h
Cutting force	300Ton
Converting
Cutting size	max.730*1040mm
Gripper margin	min.9.5mm
Pile Height
Feeder	1600mm
Delivery	1300mm
Dimensions &Weight
Dimensions	6.14.22.45m
Weight	15Ton
Installation
Compressed air	6 bar
Air compressor capacity	15 m³
Air tank-capacity	100L

B. Key components:

Components	Description
	1). Feeder section: • Automatic feeder with non-stop system. • Pallet & cart direct load • 4 lift-up and 4 delivery suckers,designed to handle a wide range of materials from paper to corrugated board. They guarantee the accuracy,reliability and smoothness of paper feeding. • Double sheet detector.
	2).Register table • Side-register table with 6 belts. • 2 register side guides working with pulling and pushing system. • 2 register front lays,independently adjustbale.
	3).Press section • Closed chase with center-line device for fast positioning of the die. • Cutting plate 5 mm thickness. • Pressure control system,can be easily adjusted through touch screen.it has a security system to avoid any damage in the press. • Manual& automatic lubrication system. • 5 light weight gripper bars. • Turn-over bracket for cutting chase and honeycomb chase. • Pneumatic lock & release system for cutting chase and honeycomb plate.
	4).Delivery section • Non-stop device with automatic conveyor at delivery.

Packaging & Shipping

DGM machines are usually loaded by 40 feet container by sea.The machines are nude cargo with fixed packaging in the container.
