Automatic Die Cut TECHONOCUT1050
- SHENZHEN
- T/T
You May Like
Product Details
| Condition | New | Type | Paper Cutting Machine | |
| Automatic Grade | Automatic | Place of Origin | Guangdong, China | |
| Brand Name | DGM | Model Number | TECHNOCUT1050S | |
| Voltage | 380 | Power(W) | 380 | |
| Dimension(L*W*H) | 6.1M*4.2M*2.45M | Weight | 15TONS | |
| Certification | CE | Warranty | 12months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Introduction
TECHNOCUT 1050 Automatic Die Cutting Machine. It can run large formats.High precision,high speed,easy to operate,quick changeovers,durability and stable performance. Features that make this machine one of the best options available.
2.SPECIFICATIONS
| Carton board min | 80g/m² |
| Carton board max | 2000g/m |
| corrugated board max | 4mm |
| sheet size min | 360*400mm |
| sheet size max | 740*1050mm |
| speed | 7500s/h |
| cutting force | 300ton |
| cutting size max | 730*1040mm |
| gripper margin min | 9.5mm |
| feeder | 160mm |
| delivery | 1300mm |
| compressed air | 8bar |
| Air compressor capacity | 15m³/h |
| Air tank capacity | 100L |
| length*width*Height | 6.1m*4.2m*2.45m |
| Net wight | 15ton |
3. Key components:
| Components | Description |
![]() | 1). Feeder section: • Automatic feeder with non-stop system. • Pallet & cart direct load • 4 lift-up and 4 delivery suckers,designed to handle a wide range of materials from paper to corrugated board. They guarantee the accuracy,reliability and smoothness of paper feeding. • Double sheet detector. |
![]() | 2).Register table • Side-register table with 6 belts. • 2 register side guides working with pulling and pushing system. • 2 register front lays,independently adjustbale. |
![]() | 3).Press section • Closed chase with center-line device for fast positioning of the die. • Cutting plate 5 mm thickness. • Pressure control system,can be easily adjusted through touch screen.it has a security system to avoid any damage in the press. • Manual& automatic lubrication system. • 5 light weight gripper bars. • Turn-over bracket for cutting chase and honeycomb chase. • Pneumatic lock & release system for cutting chase and honeycomb plate. |
![]() | 4).Delivery section • Non-stop device with automatic conveyor at delivery. |
| paper | ![]() |
| carton board | ![]() |
| corrugated board | ![]() |
DGM
Worldwide Carton Converting EquipmentWith more than 20 years in the business,designing and producing folding gluing machines,die-cutting machines,hot foil-stamping machines and carton laminatior machines,hot foil-staming machines and carton laminator machines,DGM has became the leading supplier in Southeast Asia market and one of leading suppliers in China market.Based on this foundation,DGM machinery has its presence in over 25 countries with 5000 units sold.
1.bussiness development
| Founded in 1985 under the previous name:Taiwan Bi Cheng machinery,first Technofold ES series folder gluer into production. |
| 1986-1989started exporting to Southeast Asia |
| In1990 sold the first folder gluer in China,opened domestic market |
| 1993 Laminating machine ETH series into prosuction. |
| 2004 New 13,000sqm.facilities in Huizhou,Guangdong province |
| Well communicated with import cities like Hongkong,Shenzhen and Guangzhou |
| 2007CE certifications for all range of products |
| 2008 attended Drupa exhibition for the first time |

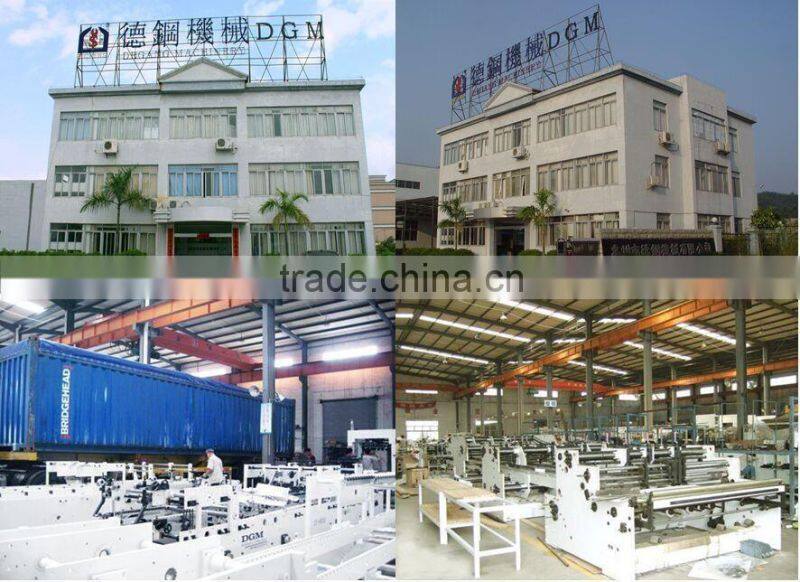

| 2012Smartfold series intelligent folder gluer into production.2.WORK SHOP |
shop
360°SERVICE A GLOBAL SOLUTION
| Techical services | Technical services will be performed in all the aspects,from presale process to aftersale process.Accoring to every customer's unique features and expectations,we give you customized suggestions and services |
| Training | DGM's specialists can offer different trainnings at our manufature,or directly at customer's facilities.We make sure your employees understand DGM equipment very well to guarantee your high effciency |
| In-depth inspection and maintenance | We talk for your facilities.Through all the detailed measurements and inspections,we inform you all the improvements,repairs and maintenance your facilities need.And through our maintenance.we predict all the potential problems,help your machine work smoothly with less downtime |
| spare parts and consumables | DGM has its well-organized spare parts storage,all the parts are totally qualified and ready to be sent to anywhere of the world. We gurantee the shortest delivery time and the best quality.As-sembly instuction will be sent together with our spare parts |
| Machine improvements | In order to offer the best performance products to our cusromers,DGM never stops working on updating and improving our products.With more than 20 years of experience on the field,we are expert to improve your facilities for your specfic jobs |
DGM
2008attend Drupa exhibition for the first time
2014attend DGM attend all in print china 2014 on ShangHai New International Expo Center
2015attend the 9th Beijing International Printing Technology exhibition ect.,


Huizhou De Gang Machinery Co.,ltd
HuiHuan Industrial Area, Huizhou City, Guangdong Province, China
Tel:(86) 0752-277 37 80
Fax:(86) 0752-277 37 78
