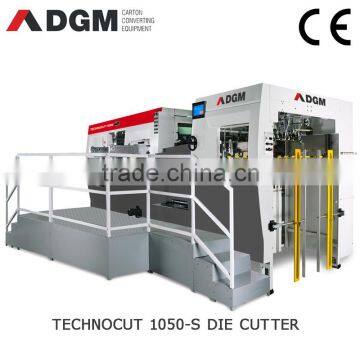

Automatic paper roll die cutting machine Technocut1050s
- 15 Set / Sets per Month
- ShenZhen
- T/T
You May Like
-
Used Corrugated Carton Die Cut Machine Technocut1050
-
Automatic Paper Cup Printing Die Cutting Machine Technocut1050
-
Automatic Industrial Die Cutting MachineTechnocut1050
-
Automatic Scrapbooking die cut machine Technocut1050
-
Automatic kiss cut die cutting machine Technocut1050s
-
Automatic felt die cutting machineTechnocut1050s
Product Details
| Condition | New | Type | Paper Cutting Machine | |
| Automatic Grade | Automatic | Place of Origin | Guangdong, China | |
| Brand Name | DGM | Model Number | TECHNOCUT1050 | |
| Voltage | 380v | Power(W) | 15kw | |
| Dimension(L*W*H) | 61m*4.5m*2.45m | Weight | 15TON | |
| Certification | CE | Warranty | 12Month | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
DIE CUTTING TECHONOCUT 1050
1. Introduction
TECHNOCUT 1050 Automatic Die Cutting Machine. It can run large formats.High precision,high speed,easy to operate,quick changeovers,durability and stable performance. Features that make this machine one of the best options available.
2.SPECIFICATIONS
| Carton board min | 80g/m² |
| Carton board max | 2000g/m |
| corrugated board max | 4mm |
| sheet size min | 360*400mm |
| sheet size max | 740*1050mm |
| speed | 7500s/h |
| cutting force | 300ton |
| cutting size max | 730*1040mm |
| gripper margin min | 9.5mm |
| feeder | 160mm |
| delivery | 1300mm |
| compressed air | 8bar |
| Air compressor capacity | 15m³/h |
| Air tank capacity | 100L |
| length*width*Height | 6.1m*4.2m*2.45m |
| Net wight | 15ton |
3.key components
| Components | Description |
| 1). Feeder section: • Automatic feeder with non-stop system. • Pallet & cart direct load • 4 lift-up and 4 delivery suckers,designed to handle a wide range of materials from paper to corrugated board. They guarantee the accuracy,reliability and smoothness of paper feeding. • Double sheet detector. |
| 2).Register table • Side-register table with 6 belts. • 2 register side guides working with pulling and pushing system. • 2 register front lays,independently adjustbale. |
| 3).Press section • Closed chase with center-line device for fast positioning of the die. • Cutting plate 5 mm thickness. • Pressure control system,can be easily adjusted through touch screen.it has a security system to avoid any damage in the press. • Manual& automatic lubrication system. • 5 light weight gripper bars. • Turn-over bracket for cutting chase and honeycomb chase. • Pneumatic lock & release system for cutting chase and honeycomb plate. |
| 4).Delivery section • Non-stop device with automatic conveyor at delivery. |
4.suitable materials
| paper | |
| carton board | |
| corrugated board | |
DGM
1.bussiness development
| Founded in 1985 under the previous name:Taiwan Bi Cheng machinery,first Technofold ES series folder gluer into production. |
| 1986-1989started exporting to Southeast Asia |
| In1990 sold the first folder gluer in China,opened domestic market |
| 1993 Laminating machine ETH series into prosuction. |
| 2004 New 13,000sqm.facilities in Huizhou,Guangdong province |
| Well communicated with import cities like Hongkong,Shenzhen and Guangzhou |
| 2007CE certifications for all range of products |
| 2008 attended Drupa exhibition for the first time |
| 2012Smartfold series intelligent folder gluer into production.2.WORK SHOP |
shop
GLOBAL SOLUTION
DGM Machinery provides 360 º services . Service process, DGM not only embodies in to pre-sales service, such as helping the customer get to know DGM products, enhancing customer confidence in DGM products, knowing customers’s individual needs etc.,but also in to after-sales service which is the most important aspect to make a big gap from other carton converting manufactures. DGM’s core after-sales service includes:
• Technical services
• Training
• In-depth inspection and Maintenance
• Spare parts and consumables.
• Machine improvements
Huizhou De Gang Machinery Co.,ltd
HuiHuan Industrial Area, Huizhou City, Guangdong Province, China
Tel:(86) 0752-277 37 80
Fax:(86) 0752-277 37 78
