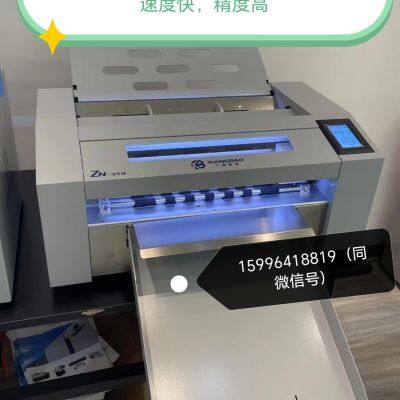

Shanghai Xiangbao XB-ZN350 Ultra-high-speed Die - cutting Machine

Shanghai Xiangbao XB-ZN350 Ultra-high-speed Die - cutting Machine

Model: XB-ZN350

Display Method: 4 - inch color touch screen

Material Cutting Range: Width: 200 - 350mm. 200 - 800mm (To increase the length, the paper - supporting tray needs to be extended by oneself)

Mechanical Precision: 0.01254mm

Fastest Cutting Speed: 1600mm/s

Maximum Pressure: 1000g

Smallest Cutting Pattern: A circle with a diameter of 5mm

Maximum Gram Weight of Cuttable Thickest Material: 350g

Feeding Time: 2 seconds

Data Transmission Methods: Network cable, WIFI, USB flash drive, USB data cable

Paper - placing Capacity: 180 sheets (with a thickness of 0.2)

Languages: Chinese, English, Spanish, Danish, Turkish, Hungarian

Voltage: Supports 110V/220V (automatically switches voltage)

Operating Software: AI (CS6 - 2023), CorelDRAW (x4 - x8, 2017 - 2023) (continuously updated)

Operating Environment: Temperature: 10° to 35°

Humidity: 35 to 75% RH

Computer System: Windows 7 - 10

External Dimensions (mm): Unfolded Dimensions: Length 480mm, Width 770mm, Height 340mm

(Length × Width × Height)  Unfolded Dimensions: Length 1160mm, Width 770mm, Height 500mm

Weight: 55KG (Volumetric weight converted to 62 kg)

Packaging Dimensions: Length 570mm, Width 870mm, Height 600mm
