Home > Products > FLATBED DIE-CUTTERS > BC-1050S Automatic platen corrugated box die cut machine,corrugated box die cut machine with stripper
BC-1050S Automatic platen corrugated box die cut machine,corrugated box die cut machine with stripper
- 10 Set / Sets per Month
- ShenZhen
- T/T
You May Like
-
DGM TECHNOCUT Automatic platen die cutting and creasing machine
-
TECHNOCUT Fully Automatic flat bed creasing and die cutting machine
-
DGM Automatic die cutting platen punching machine with stripping unit
-
TECHNOCUT automatic carton box creasing and die cutting machine with stripping, carton box die cut machine with stripper
-
TECHNOCUT Fully Automatic pizza box die cutting machine,pizza box creasing and die cut machine
-
TECHNOCUT Automatic punching embossing and die cutting machine,die cut machine with embossing
Product Details
| Condition | New | Application | Other, Machinery & Hardware | |
| Packaging Type | Cartons | Packaging Material | Paper | |
| Automatic Grade | Automatic | Driven Type | Mechanical | |
| Voltage | 380 | Place of Origin | China | |
| Brand Name | DGM | Model Number | BC-1050S | |
| Weight | 16Ton | Dimension(L*W*H) | 7.07*4.2*2.45m | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Product name: Automatic corrugated box die cut machine2.Speed:7500s/h
3.Option:stripper
4.Corrugate:max 4mm
5.size:1050

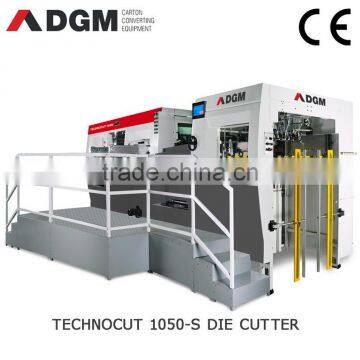

BC-1050S Automatic platen corrugated box die cut machine,corrugated box die cut machine with stripper
1. Introduction
TECHNOCUT 1050 S Automatic Die Cutting Machine.with Stripping Unit. It can run large formats.High precision,high speed,easy to operate,quick changeovers,durability and stable performance. Features that make this machine one of the best options available.
2. Technical Parameters:
A. Specifications:
| Processed Materials | |
| Paper | from 80g/m2 |
| Carton board | max.2000g/m2 |
| Corrugated board | max.4mm |
| Capability | |
| Sheet size | min.360*400mm |
| Sheet size | max.740*1050mm |
| Speed | 7500s/h |
| Cutting force | 300Ton |
Converting | |
| Cutting size | max.730*1040mm |
| Gripper margin | min.9.5mm |
Pile Height | |
| Feeder | 1600mm |
| Delivery | 1300mm |
| Dimensions &Weight | |
| Dimensions | 7.07*4.2*2.45m |
| Weight | 16Ton |
| Installation | |
| Compressed air | 6 bar |
| Air compressor capacity | 15 m3 |
| Air tank-capacity | Air tank-capacity |
B. Key components:
| Components | Description |
| 1). Feeder section: • Automatic feeder with non-stop system. • Pallet & cart direct load • 4 lift-up and 4 delivery suckers,designed to handle a wide range of materials from paper to corrugated board. They guarantee the accuracy,reliability and smoothness of paper feeding. • Double sheet detector. |
| 2).Register table • Side-register table with 6 belts. • 2 register side guides working with pulling and pushing system. • 2 register front lays,independently adjustbale. |
| 3).Press section • Closed chase with center-line device for fast positioning of the die. • Cutting plate 5 mm thickness. • Pressure control system,can be easily adjusted through touch screen.it has a security system to avoid any damage in the press. • Manual& automatic lubrication system. • 5 light weight gripper bars. • Turn-over bracket for cutting chase and honeycomb chase. • Pneumatic lock & release system for cutting chase and honeycomb plate. |
| 4).Stripping section • Optimized cam movement curve that guarantees stripping stability and accuracy. • Quick-locking and center-line system to assure the waste is cleared with accuracy. |
| 5).Delivery section • Non-stop device with automatic conveyor at delivery. |
DGM machines are usually loaded in 40 feet containers by sea.And it is with sea-worthy package,and our cooperation shipping companies are Evergreen,MSK,COSCO,WHL,HANJIN and so on.
workshop
| |
