Home > Products > FLATBED DIE-CUTTERS > DGM TECHNOCUT Automatic Flatbed Die Cutting and Creasing Machines
DGM TECHNOCUT Automatic Flatbed Die Cutting and Creasing Machines
Negotiable
/ Set
1 Set(Min. Order)
- ShenZhen
- T/T
You May Like
-
TECHNOCUT 1050S Automatic Die Cutter Machine
-
Automatic Paper Die Cutting Machine TECHNOCUT1050
-
Flatbed Die Cutting and Creasing Machines(Technocut 1050)
-
Automatic Platen Die Cutting and Creasing Machine
-
Automatic Die Cutting and Creasing Machine With Stripping Unit
-
Fully Automatic Paper Roll Die Cutting and Creasing Machine
Product Details
| Condition | New | Application | Beverage, Commodity, Food, Other, Medical, Beverage, Commodity, Food, Machinery & Hardware, Medical | |
| Packaging Type | Cartons, Film, Other, Cartons, Film, corrugated boards | Packaging Material | Paper | |
| Automatic Grade | Automatic | Driven Type | Mechanical | |
| Voltage | 380 | Power | 380V | |
| Place of Origin | China | Brand Name | DGM | |
| Model Number | BC-1050 | Weight | 15Ton | |
| Dimension(L*W*H) | 6.1*4.2*2.45m | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

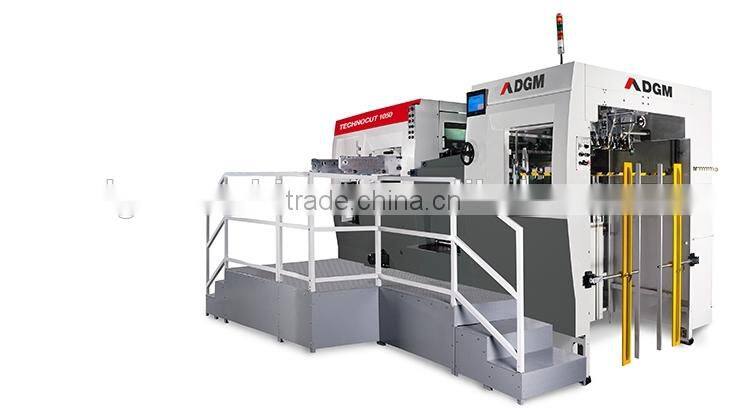

DGM TECHNOCUT Automatic flatbed die cutting and creasing machines
Product Description
1. Introduction
TECHNOCUT 1050 Automatic Die Cutting Machine. It can run large formats.High precision,high speed,easy to operate,quick changeovers,durability and stable performance. Features that make this machine one of the best options available.
2. Technical Parameters:
A. Specifications:
| Processed Materials | |
| Paper | from 80g/m2 |
| Carton board | max.2000g/m2 |
| Corrugated board | max.4mm |
| Capability | |
| Sheet size | min.360*400mm |
| Sheet size | max.740*1050mm |
| Speed | 7500s/h |
| Cutting force | 300Ton |
Converting | |
| Cutting size | max.730*1040mm |
| Gripper margin | min.9.5mm |
Pile Height | |
| Feeder | 1600mm |
| Delivery | 1300mm |
| Dimensions &Weight | |
| Dimensions | 6.1*4.2*2.45m |
| Weight | 15Ton |
| Installation | |
| Compressed air | 6 bar |
| Air compressor capacity | 15 m3 |
| Air tank-capacity | 100L |
B. Key components:
| Components | Description |
| 1). Feeder section:
|
| 2).Register table
|
| 3).Press section
|
| 4).Delivery section
|
Packaging & Shipping
DGM machines are usually loaded by 40 feet container by sea.The machines are nude cargo with fixed packaging in the container.
