Home > Products > FLATBED DIE-CUTTERS > BC-1050 platen automatic die cutting machine,flat bed die cutting machine
BC-1050 platen automatic die cutting machine,flat bed die cutting machine
- 10 Set / Sets per Month
- ShenZhen
- T/T
You May Like
-
BC-1050S Automatic platen corrugated box die cut machine,corrugated box die cut machine with stripper
-
DGM TECHNOCUT Automatic platen die cutting and creasing machine
-
TECHNOCUT Fully Automatic flat bed creasing and die cutting machine
-
DGM Automatic die cutting platen punching machine with stripping unit
-
TECHNOCUT automatic carton box creasing and die cutting machine with stripping, carton box die cut machine with stripper
-
TECHNOCUT Fully Automatic pizza box die cutting machine,pizza box creasing and die cut machine
Product Details
| Condition | New | Application | Beverage, Commodity, Food, Other, Medical, Beverage, Commodity, Food, Machinery & Hardware, Medical | |
| Packaging Type | Cartons, Film | Packaging Material | Paper, Other, Paper, carton | |
| Automatic Grade | Automatic | Driven Type | Mechanical | |
| Voltage | 380 | Place of Origin | China | |
| Brand Name | DGM | Model Number | BC-1050 | |
| Weight | 15Ton | Dimension(L*W*H) | 6.1*4.2*2.45m | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
BC-1050 platen automatic die cutting machine,flat bed die cutting machine
1. Introduction

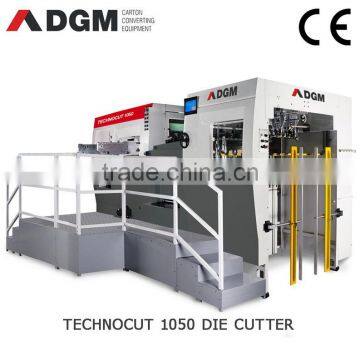

TECHNOCUT 1050 Automatic Die Cutting Machine. It can run large formats.High precision,high speed,easy to operate,quick changeovers,durability and stable performance. Features that make this machine one of the best options available.
2. Technical Parameters:
A. Specifications:
| Processed Materials | |
| Paper | from 80g/m2 |
| Carton board | max.2000g/m2 |
| Corrugated board | max.4mm |
| Capability | |
| Sheet size | min.360*400mm |
| Sheet size | max.740*1050mm |
| Speed | 7500s/h |
| Cutting force | 300Ton |
Converting | |
| Cutting size | max.730*1040mm |
| Gripper margin | min.9.5mm |
Pile Height | |
| Feeder | 1600mm |
| Delivery | 1300mm |
| Dimensions &Weight | |
| Dimensions | 6.1*4.2*2.45m |
| Weight | 15Ton |
| Installation | |
| Compressed air | 6 bar |
| Air compressor capacity | 15 m3 |
| Air tank-capacity | 100L |
B. Key components:
| Components | Description |
| 1). Feeder section:
|
| 2).Register table
|
| 3).Press section
|
| 4).Delivery section
|
DGM machines are usually loaded by 20 feet or 40 feet containers by sea.The machines are nude cargo with fixed packaging in the container.
Workshop
| |
FAQ
1.What's the minimum order quantity?
One set
2.What type of container will it need to do loading for die cutting machine?
1*40'Open Top Container.
3.Is there any certification of this machine?
Yes,we DGM has gained the CE certification.
