Cable Shielding Single side AL laminated Polyester tape
- Shanghai or Ningbo
- D/P D/A
You May Like
-
Double side AL laminated PET for cable insulation
-
Double side gold aluminum foil mylar for cable shield
-
Jumbo roll aluminium mylar tape supply RoHS,MSDS
-
Aluminum tape polyester coated for cable supply RoHS,MSDS
-
Aluminum foil mylar for cable insulation materials
-
Yellow color cable insulation laminated Alu polyester foil
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Tianhong | |
| Model Number | AL laminated Polyester | Type | Insulation Tape | |
| Material | Other, AL laminated Polyester | Application | High Temperature | |
| Rated Voltage | ≥1000V | Tensile Strength | ≥50 |
Product Description
Specifications
1.For wire cables2.For insulation materials
3.Supply SGS,Certificate of original,MSDS,Test report,ect
4.We are manufacturer
1. Application
1.For wire cables
2.For insulation materials
3.For telephone lines
4.For flexible duct,air conditioner
5.For packaging
6. For champagne cap
7.Supply SGS,Certificate of original,MSDS,Test report,ect
2. Specifications
Name | Single side AL laminated Polyester |
Thickness | 20u-150u |
Width | 5mm-1000mm |
Inner diameter | 53.5mm(2.1in) or 76mm(3.0in) |
Outer diameter | 250mm-650mm |
Color | Silver,Blue,Golden,Green,Pink,Yellow |
Packaging | 1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet 2.Inner-plastic bag,Outside plywood wooden box |
Certificate | SGS,ISO9001 |
Tensile Strength | ≥50 Mpa |
Elongation at break | ≥35% |
Name: AL laminated Polyester |
|
|
|
Structure | Thickness(mic) | Weight(g/m2) | Yield(m2/kg) |
AL7+ PET12 | 21mic | 36 |
|
AL7+ PET15 | 24 mic | 39 |
|
AL9+ PET12 | 23mic | 43 | 23 |
AL9 +PET15 | 26mic | 48 | 21 |
AL9 +PET19 | 30mic | 54 | 19 |
AL9 +PET23 | 34mic | 60 | 17 |
AL12 +PET12 | 26mic | 52 | 19 |
AL12 +PET15 | 29mic | 56 | 18 |
AL12 +PET19 | 33mic | 62 | 16 |
AL12 +PET23 | 37mic | 67 | 15 |
AL12 +PET36 | 50mic | 87 | 12 |
AL15 +PET19 | 36mic | 70 | 14 |
AL25 +PET12 | 39mic | 87 | 12 |
AL25 +PET23 | 50mic | 102 | 10 |
AL40 +PET12 | 54mic | 127 | 8 |
AL40 +PET15 | 57mic | 131 | 8 |
AL40 +PET23 | 65mic | 143 | 7 |
AL40 +PET36 | 78mic | 161 | 6 |
AL50 +PET12 | 64mic | 154 | 6 |
AL50 +PET15 | 67mic | 158 | 6 |
AL50 +PET23 | 75mic | 170 | 6 |
AL50 +PET36 | 88mic | 188 | 5 |
3.Test report and test machine
| Width (mm) | Thickness (mm) | Tension (N) | Tensile atrength (MPa) | Elongation at break (%) |
| 10.000 | 0.026 | 32.34 | 124.375 | 89.735 |
4.Production line: Lamination & Cutting

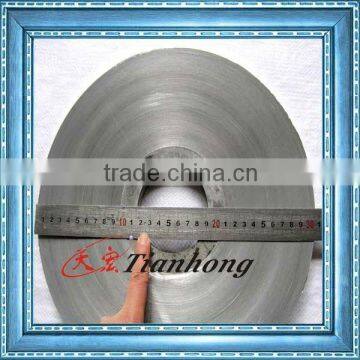

5.Product pictures
6.Packaging photos
a.Inner-plastic bag,Outside-carton,Then put on a plywood pallet
b.Inner-plastic bag,Outside plywood wooden box
7.Warehouse and test machine
8.Application to Cables and Flexible Ducts
9.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect
10.Sample: We are manufacturer,We supply free sample,But please pay express fee
11.Contact:Please feel free to contact with me
Mobile:86-15168349992
FAX:86-571-6381 0799
