Bonded aluminium foil for cables
- Shanghai or Ningbo
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Tianhong | |
| Model Number | AL/PET/EMAA | Type | Insulation Film | |
| Material | PET | Application | High Temperature | |
| Rated Voltage | min 1000 V | Tensile Strength | min 45 Mpa |
Product Description
Specifications
1.For coxial cable shielding2.For insulation materials
3.For telephone lines
4.We are manufacturer
5.Have RoHS,ISO.
1. Application
1.For coxial cable shielding
2.For insulation materials
3.For telephone lines
4.We are manufacturer
5.Have SGS,ISO,Certificate of original,MSDS,Test report,ect
2.Dimensions
Name | Single sided Bonded aluminium foil (AL+PET+EMAA) |
Thickness | 50µ-80µ |
Width | 5mm-1000mm |
Inner diameter | 38mm(1.5in) or 53.5mm(2.1in) or 76mm(3.0in) |
Outer diameter | 250mm-650mm |
Color | Silver,Blue |
Name | Double sided Bonded aluminium foil (AL+PET+AL+EMAA) |
Thickness | 65µ-80µ |
Width | 5mm-1000mm |
Inner diameter | 38mm(1.5in) or 53.5mm(2.1in) or 76mm(3.0in) |
Outer diameter | 250mm-650mm |
Color | Silver,Blue |
3.Test report and test machine
| No. | Name | Width (mm) | Thickness (mm) | Tension (N) | Tensile atrength (MPa) | Elongation at break (%) |
| 1 | Bonded aluminium foil | 17.000 | 0.053 | 62.86 | 71.109 | 66.979 |
4.Production line: Lamination & Cutting

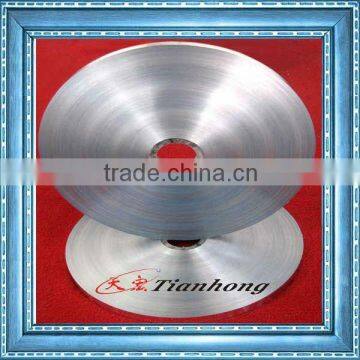

5.Product pictures
6.Packaging photos
a.Inner-plastic bag,Outside-carton,Then put on a plywood pallet
b.Inner-plastic bag,Outside plywood wooden box
7.Warehouse
8.Application to Cables and Flexible Ducts
9.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect
10.Sample: We are manufacturer,We supply free sample,But please pay express fee
11.Contact:Please feel free to contact with me
Mobile:86-15168349992
TEL:86-571-6106 1089
FAX:86-571-6381 0799
Hangzhou Lin'an Tianhong Telecommunication Material Co., Ltd.,
founded in 2000, is an enterprise specializing in producing and processing raw materials for electric wires and cables, and optical cables.
With an annual total production of 5,000 tons, the company mainly produces raw materials for refrigeration industry, flexible duct ,electric cables and optical cables, such as aluminum foil Mylar tape,Metallized PET,PVC tape,copper foil Mylar tape, imitation copper foil Mylar tape, polyester tape (PET) tape, aluminum-plastic tape, aluminum tape ,and so on.
