25micron Polyester film for cable insulation
- Shanghai or Ningbo
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Tianhong | |
| Model Number | 25micron Polyester film | Type | Insulation Film | |
| Material | Other, polyester | Application | High Voltage | |
| Rated Voltage | min 5KV | Tensile Strength | min 60 Mpa |
Product Description
Specifications
1.For insulating, jelly filled telephone cable, video tape2.For Printing,packaging,covering
3.For Metalizing,lamination
1.Usage of 0.023micron polyester film :
1.For insulating, jelly filled telephone cable, videotape
2.For Printing,packaging,covering
3.For Metalizing,lamination
4.For Capacitor
5.For sheet moulding as the fiberglass sheet
2.Specifications:
Thickness | 0.012mm-0.25mm |
Width | 5mm-2000mm |
Inner diameter(ID) | 38mm or 53.5mm or 76mm or 150mm 1.5in or 2.1in or 3.0in or 5.9in |
Outer diameter(OD) | 250-550mm |
Color | Clear |
Packaging | 1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet 2.Inner-plastic bag,Outside plywood wooden box |
structure | Thickness | weight(gr/m2) | Yield(m2/kg) |
PET film | 12mic | 16.5 | 60 |
PET film | 15mic | 20.6 | 48 |
PET film | 20mic | 27.7 | 36 |
PET film | 25mic | 34.7 | 28 |
PET film | 30mic | 41.2 | 24 |
PET film | 35mic | 48.2 | 20 |
PET film | 40mic | 55.3 | 18 |
PET film | 50mic | 68.8 | 14 |
|
3.Test report and test machine
| Name | Width (mm) | Thickness (mm) | Tension (N) | Tensile strength (MPa) | Elongation at break (%) |
| 0.023mm polyester film | 22.000 | 0.023 | 96.200 | 206.901 | 112.55 |
4.Production line:Sltting

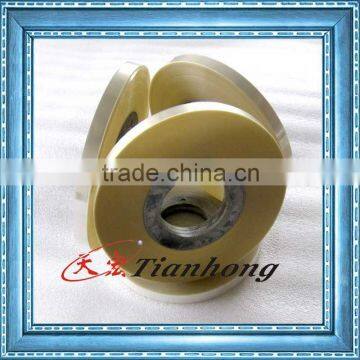

5.Product pictures
.
6.Packaging photos
a.Inner-plastic bag,Outside-carton,Then put on a plywood pallet
b.Inner-plastic bag,Outside plywood wooden box
7.Warehouse
8.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect
9.Sample: We are manufacturer,We supply free sample,But please pay express fee.
10.Contact:Please feel free to contact with me
Mobile:86-15168349992
FAX:86-571-6381 0799
