Product Details
| Place of Origin | Guangdong, China | Brand Name | UNITOPTEK | |
| Model Number | N1008F |
Product Description
8CH cctv NVR Smart Mini 1U Network Video Recorder HDMI/VGA Output 8 channel 1080P/720P Phone view Onvif NVR P2P Cloud MAX 4TB
Features:
1.H.264 High profile compression algorithm ideal for network NVR
2.Realtime live display up to 4/8 IPcameras
3.Pentaplex function:live,recording,playback,backup & remote access;
4.Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission
5.Multiple control methods:IR remote controller,USB mouse and front panel press button
6.Smart camera settings:privacy masking,camera lock,color setting,and tittle display
7.Pan Tilt Zoom and Speed Dome Control:more than 60 protocols supported ,preset,scan,auto pan,auto tour,pattern,auxiliary function supported
8.Easy backup methods: USB devices,remote network and client software backup
9.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function
10.Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK..
11.Enable strong multi-way synchronization with max 1 channel playback, realize the zero-delay between playback channels
12. Support Onvif
13. Support cloud(),no need to do router mapping, just 1 step go to internet with cloud technology
System |
| N1008F |
Operating System | Embedded LINUX | |
System Resources | Pentaplex function:live,recording,playback,backup & remote access | |
Operation interface | 16-bit true color graphic menu operation interface, support mouse operation | |
Preview | 1/4 | |
Video | Video Standards | PAL 625 line,50 f/s;NTSC 525 line,60 f/s |
| Video Compression | H.264 High profile |
| quality supervision | Monitor: D1; VGA: high definition; HDMI: hd |
| Video Input(IP) | 8*1080P/8*720P |
| Video Recording | 1080P/960P/720P/960H/D1/HD1/CIF/QCIF |
| Playback | 1/4channel playback simultaneously |
Storage & Backup | Space Occupation | Video: 1080p 80G/day/ch, 720p 26G/day/ch, 960H 24G/day/ch, D1 16~20G/day/ch ; Audio: 691.2M/day/channel |
Video saved | Local HDD,network | |
Backup Mode | Network download/Flash stick/USB/SATA | |

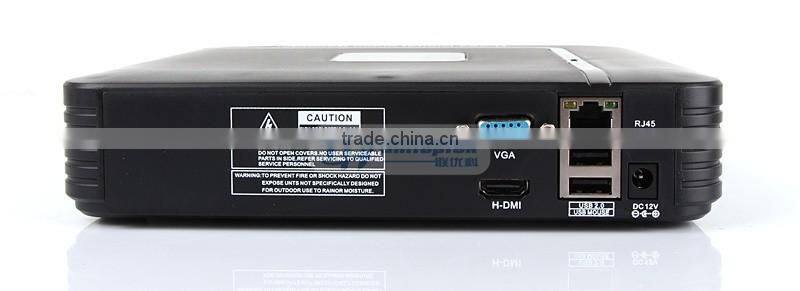

Interface | Video Input(BNC) | NO |
| Video Output | 1ch VGA output, 1ch HDMI |
| Audio Input | NO |
| Audio Output | NO |
| Alarm Input | NO |
| Relay Output | NO |
| Net Interface | RJ-45 10M/100M |
| PTZ Control | NO |
| 3G/WIFI | NO |
| USB Interface | 2* USB2.0 port for mouse and backup |
| Hard Disk | 1 SATA port(Max 1 x 4T) |
Environmental | Power Supply | 12V/2A |
ONVIF | Standard |

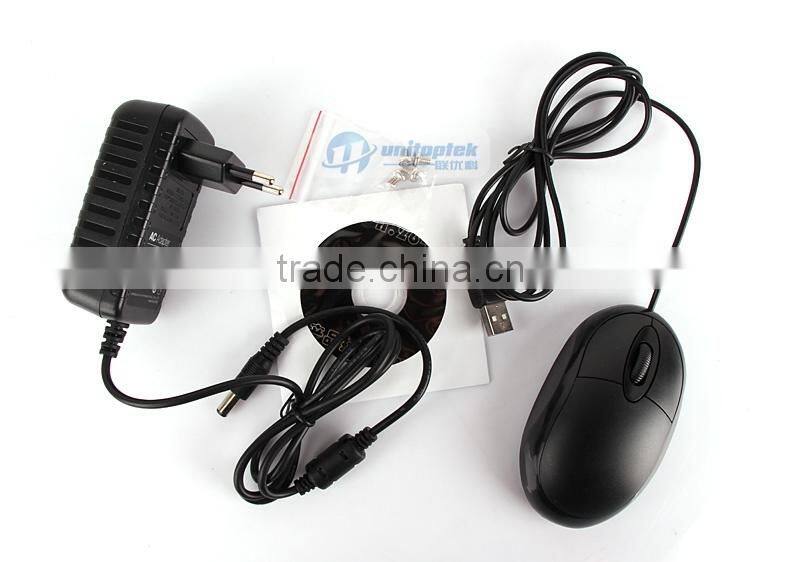

1 X mini 8ch 1080p nvr
1 X USB Mouse
1 X Power Adapter
1 X Software CD
(The Item without Hard Disk)
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
