2.0MP Outdoor Bullet+Dome IP Camera 8CH 1080P NVR System Kit Starlight Low Lux,Fisheye View

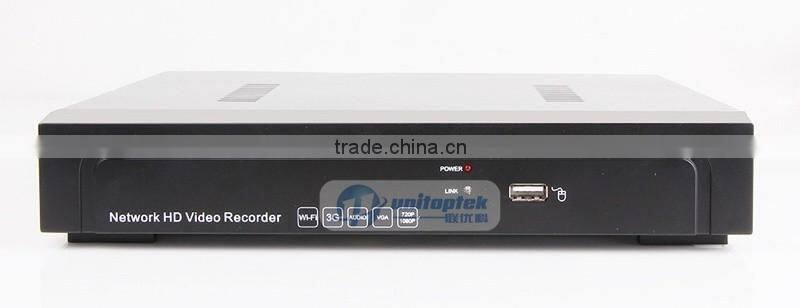

Model

8EP

System

Operating system

Linux

Screen display

1ch/ 4ch/ 8ch display

Video

Code capacity

1080P/ 960P/ 720P/ 960H/ D1/ HD1/ CIF/ QCIF

Preview capability

8ch 1080P or 8ch 960P or 8ch 720P

Each screen can be set to 192 (16×12) of detection regions;

support multi-level sensitivity

Video playback

Recording

Manual> Alarm> Motion Detection> Schedule

Playback

1ch 1080P/ 4ch 720P / 4ch 960P

Video search

Time search, calendar search, event search, channel retrieval

Storage

Space

720P:40G/day/channel;

1080P:80G/day/channel

Storage

Local HDD, Network

Backup

Support Flash Drive, USB mobile HDD, USB DVD-RW.

network storage and backup

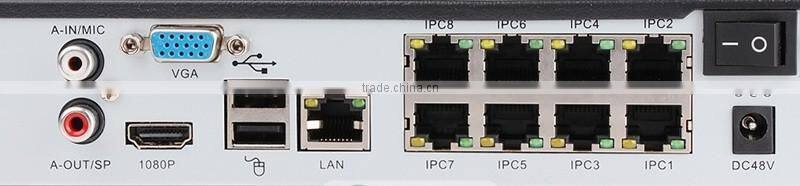

Interface

Video in

8x 1080P(2.0MP) IP Camera
or 8x 960P(1.3MP) IP Camera
or 8x 720P(1.0MP) IP Camera

Video out

1ch VGA, 1ch HDMI(1920x1080)

Audio in

1x RCA

Audio out

1x RCA

Alarm in

NO

Alarm out

NO

Ethernet

8x RJ-45 interface, for POE(Power over ethernet)

1x RJ-45 interface, for internet (10M/100M/1000M)

PTZ

Not support

USB

3x USB 2.0

HDD

Support 1x SATA Hard Disk (max to 4TB)

Other

Power supply

DC48V2A (support 8pcs 80-100meters RJ45Cable)

Power Consumption

<115W (without HDD)

Size

Equipment:260mmx220mmx43mm, Packing:355mmx255mmx88.5mm

Weight

Net:1.6kg, Include package:2.5kg (not include HDD)

10 pcs/carton. 525mmx455mmx365mm; Weight:27 Kg

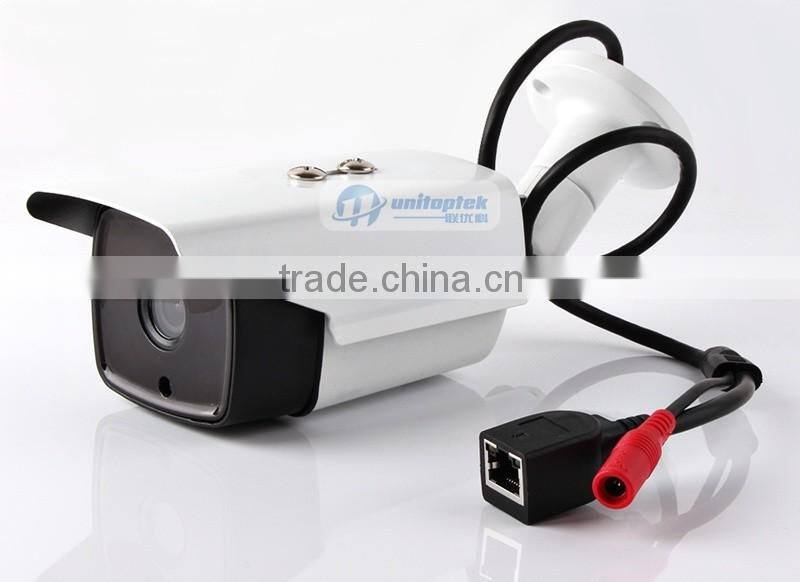

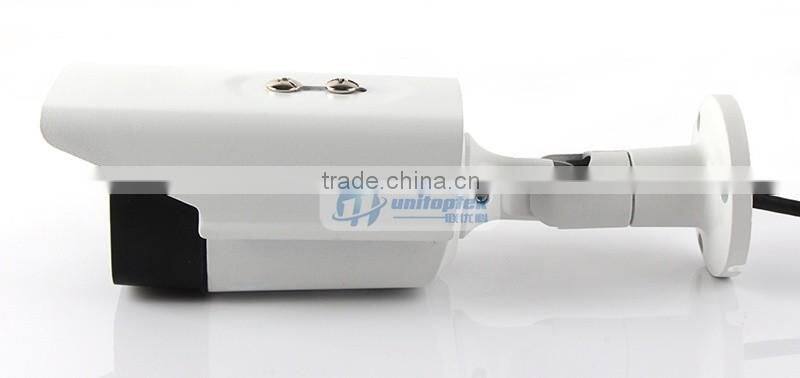

Model

IPCX-HC28551080S-P

System Structure

Embedded RTOS, dual-core 32bit DSP(Hi3516C) ,pure hard compression, watch dog

image sensor

1/2.8"IMX291 CMOS sensor,Illumination:Color 0.0001Lux F1.2,B&W 0.0001LuxF1.2

Video compression

H.264, support dual-stream, AVI format; support stream 0.1M ~ 8Mpbs

adjustable; support frame rate from 1 to 25 frames / sec adjustable

Image output

main stream:1920*1080, 1280*720; sub-stream:704*576;

Noise reduction

Support 2D/3D

Wide dynamic

Support digital

Network connection

1 RJ45, 10/100M Ethernet adaptive interface; support RTSP / FTP / PPPOE / DHCP

/ DDNS / NTP / UPnP network protocols;

Other interface

1 external single, 1 IR-CUT, support photo resistor input signal and image, IR-CUT,

infrared light linkage;

Lightning Protection

Power, network, POE comprehensive lightning protection, in line with national

standards GB/T17626.5, the international standard IEC61000-4-5.

Features

Support WEB configure, support for OSD, support real-time video transmission,

support mobile surveillance, support for mobile detection alarm center after the

screen pop-up reminders and linkage; supports JPEG capture; support unified

client remote monitoring software, MYEYE platform system applications; provide

perfect the SDK development package;

ONVIF

Support ONVIF

mobile monitoring

Support mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)

Other functions

DC12V,3W(consumption)

Case

Metal,Waterproof IP66

Lens

3.6mm,F1.2

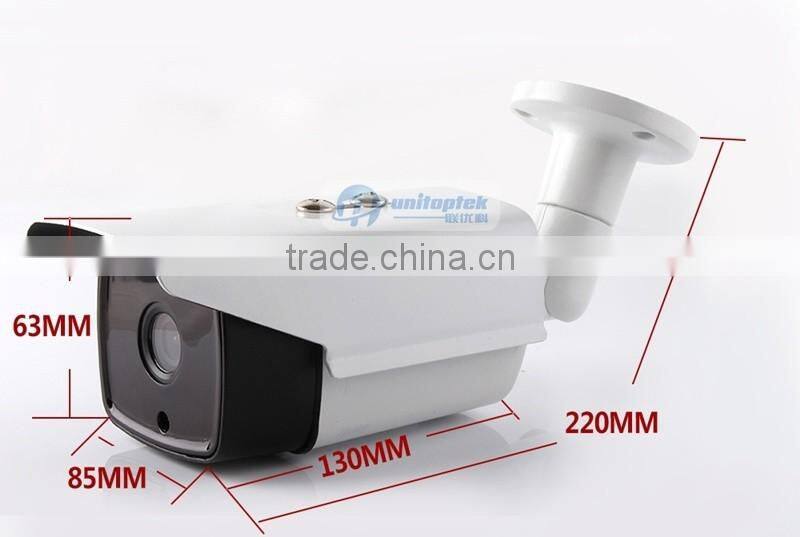

Camera size

220*85*63mm

Camera Weight

0.50kg

Support NVR

YES

PoE

YES

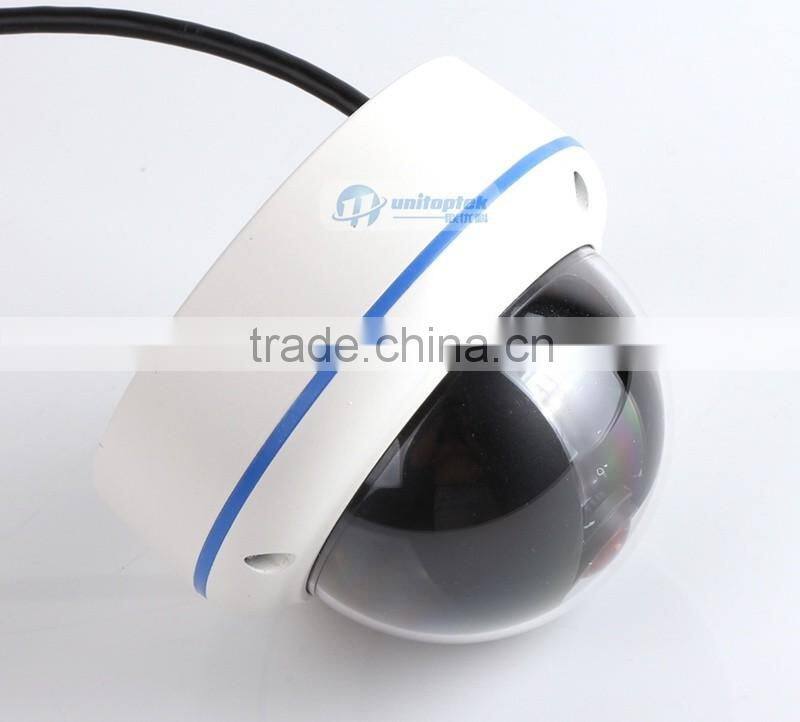

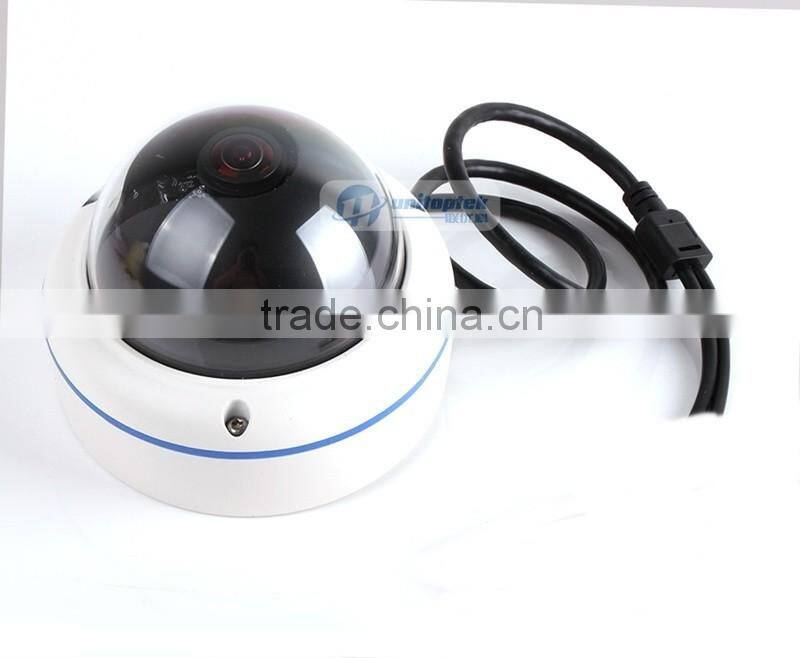

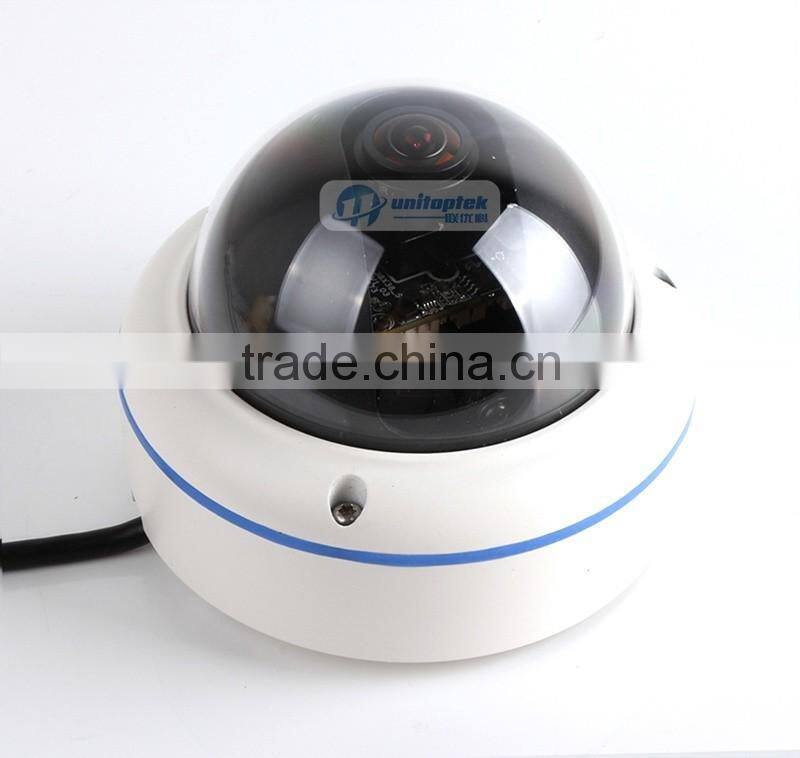

Model

IPCX-PC28011080S-P

System Structure

Embedded RTOS, dual-core 32bit DSP(Hi3516C) ,pure hard compression, watch dog

image sensor

1/2.8"IMX291 CMOS sensor,Illumination:Color 0.0001Lux F1.2,B&W 0.0001LuxF1.2

Video compression

H.264, support dual-stream, AVI format; support stream 0.1M ~ 8Mpbs

adjustable; support frame rate from 1 to 25 frames / sec adjustable

Image output

main stream:1920*1080, 1280*720; sub-stream:704*576;

Noise reduction

Support 2D/3D

Wide dynamic

Support digital

Network connection

1 RJ45, 10/100M Ethernet adaptive interface; support RTSP / FTP / PPPOE / DHCP

/ DDNS / NTP / UPnP network protocols;

Other interface

1 external single, 1 IR-CUT, support photo resistor input signal and image, IR-CUT,

infrared light linkage;

Lightning Protection

Power, network, POE comprehensive lightning protection, in line with national

standards GB/T17626.5, the international standard IEC61000-4-5.

Features

Support WEB configure, support for OSD, support real-time video transmission,

support mobile surveillance, support for mobile detection alarm center after the

screen pop-up reminders and linkage; supports JPEG capture; support unified

client remote monitoring software, MYEYE platform system applications; provide

perfect the SDK development package;

ONVIF

Support ONVIF

mobile monitoring

Support mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)

Other functions

DC12V,3W(consumption)

Case

Metal,Waterproof IP66

Lens

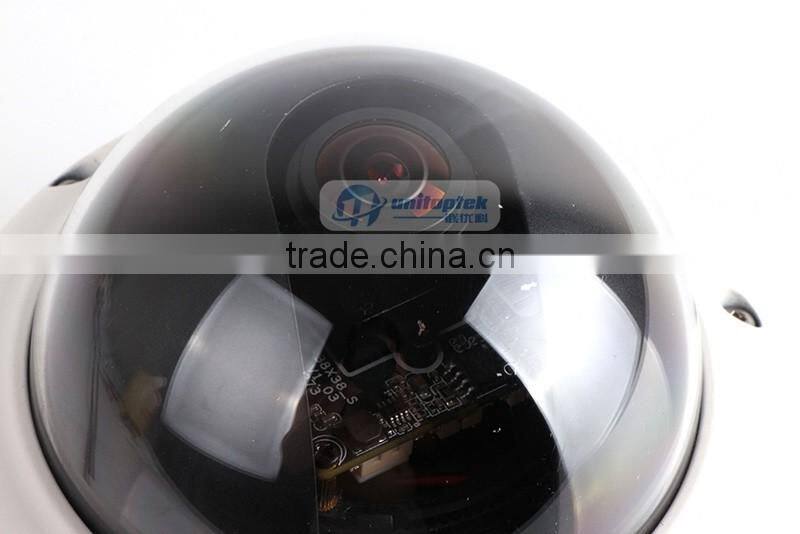

1.7mm Lens Fisheye 180 degree/360 degree

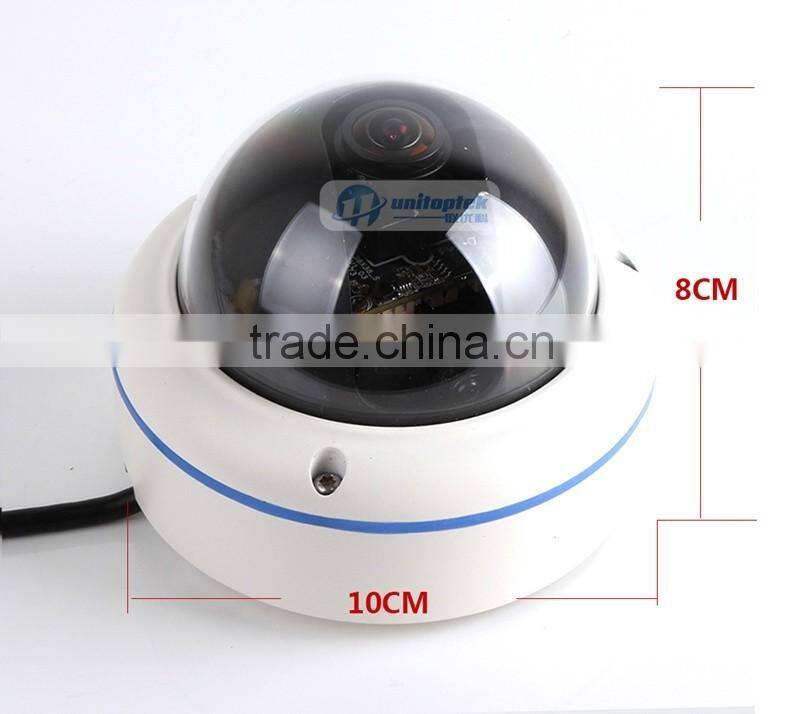

Camera size

100*80mm(diameter*high)

Camera Weight

0.35kg

Support NVR

YES

PoE

YES
