16CH 1080P NVR System KIT With 8PCS 2.0MP Waterptoof Bullet IP Camera+8PCS IR Vandal-proof Dome Camera 16CH CCTV Security System

FOB Price

US$ 1,050 - 1,100 / Set

1 Set(Min. Order)

Port ShenZhen port
Payment TermsMoney Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	UNITOPTEK
Model Number	16EFP+HC46+BC38

Product Description

16CH 1080P NVR System KIT With 8PCS 2.0MP Waterptoof Bullet IP Camera+8PCS IR Vandal-proof Dome Camera 16CH CCTV Security System

Product Description

Main Functions:

1. Preview channel can be switched to other channel randomly without changing the MAC which is convenient for the project construction;

2. The dendritic menu can be moved. Man-machine communication is more direct and the settings of parameters are more easy and convenient;

3. The mouse roller can realize 15x digital zooming which the enlarged image can be dragged and moved randomly under preview and playback modes;

4. Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;

5. The recording playback is shown by time bar and different color represents different recording type. It is very fast and easy to find check the recording;

6. Recording backup can be accurate to second. Any time period of backup is available;

7. The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can be viewed directly;

8. With 3G, WIFI wireless connection functions;

9. Standard resolution which can be adjusted according to the display device in order to get the best image quality;

10. Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD

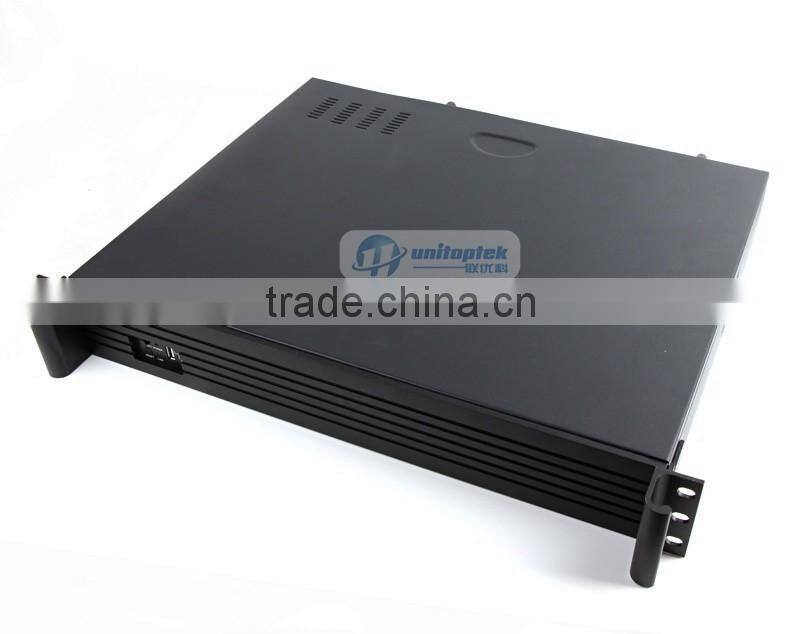

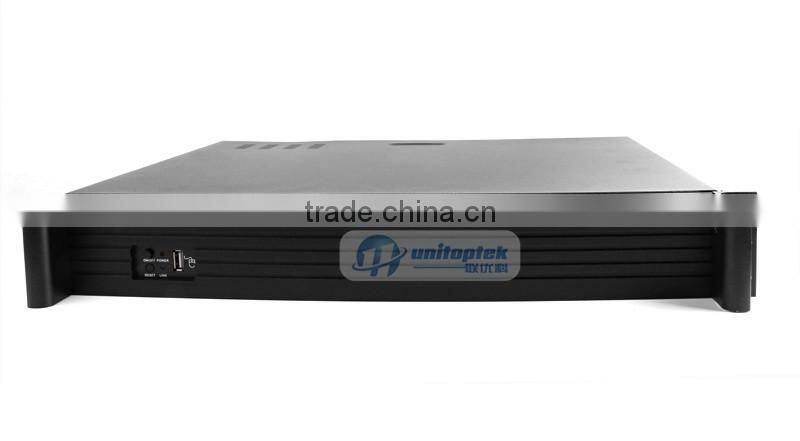

Model Number		16EFP
Operating System		Embedded LINUX operating system
Image Code Control		Image code quality adjustable, variable bitstream and constant bitstream optional
Dual Stream		Each channel can set main stream and sub stream
Video Standard		5MP(2592×1944)30fps/ 3MP(2048×1536)30fps/1080P(1920×1080)30fps
Monitoring Image Quality		5MP(2592×1944)/3MP(2048×1536)/1080P(1920×1080)/960P(1280×960)
Image Motion Detection		Each screen can set mutiple detection areas and set 6-level sensitivity(IPC Support)
Recording Playback Quality		9ch 960P/ 1080P playback, 4ch/3MP/5MP playback
Region Cover		Every channel can set 4 cover regions(IPC Support)
Recording Mode		Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)
Backup Way		Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup
Operation Way		Mouse, Keyboard
Local Login		User name and password
Recording Storage		Local HDD, network
External Ports	Video Input	1,16×19201080)+sub[960576]+4Ref.+9Play 16ch 2.0MP IPCamera
		2,9×(20481536)+sub[960576]+4Ref.+4Play 9ch 3.0MP IP Camera
		3,9×(25921944)+sub[960576]+4Ref.+4Play 9ch 5.0MP IP Camera

	Audio Input	9ch/16ch network audio input, 1ch RCA output
	Video Output	1ch VGA+1ch HDMI
	Network Port	1 RJ45,10M/100M/1000M self-adaptive LAN port
	Alarm Input	4ch/9ch
	Alarm Output	1ch
	USB Port	1 USB 3.0 port, 2 USB 2.0 ports
	Wireless Port	WIFI
HDD	HDD Port	4 SATA HDD Port+1 E-SATA
	MAX Capacity	Each port supports MAX 4TB HDD
POE Port		16pcs POE Port,Support 16ch poe ip camera(48v power supply)

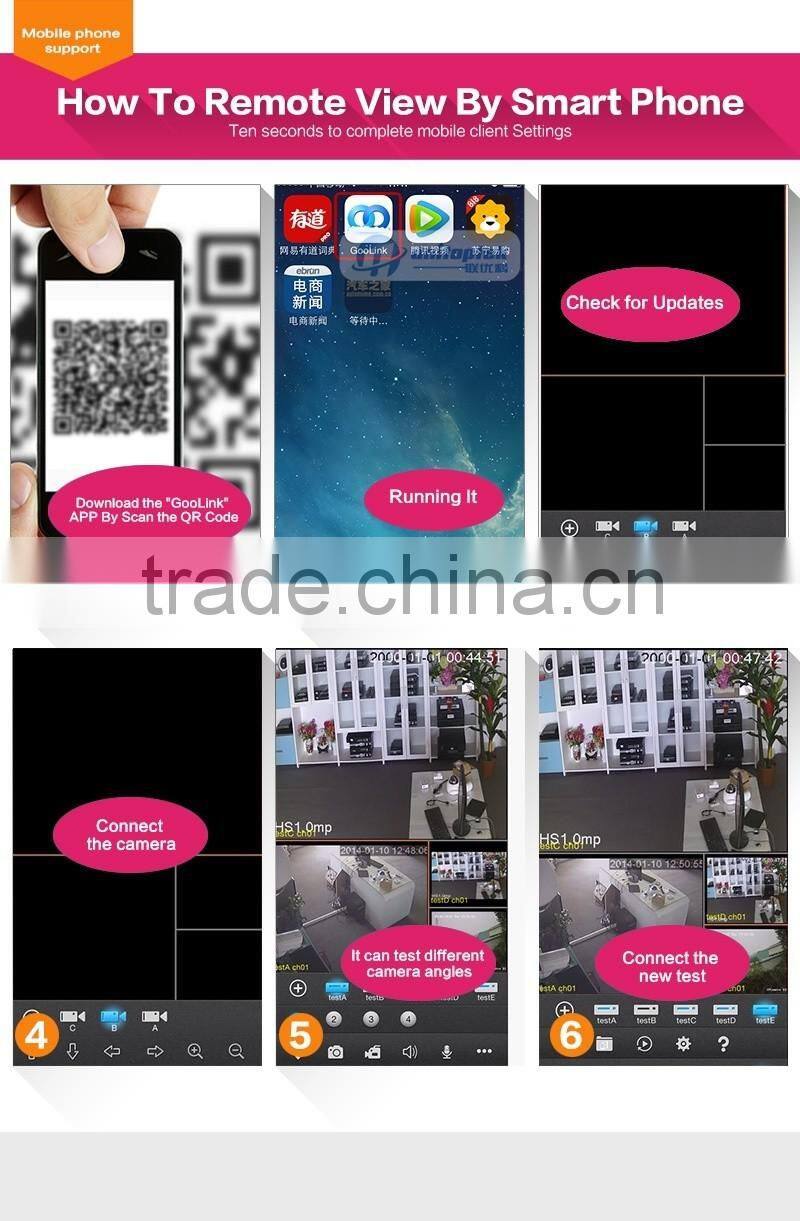

Mobile Surveillance		Support( Ios, Android) smart phone
Power Supply		ATX110-220V 350W 50-60Hz
Power Consumption		≤208without HDD
Working Temperature		-10
Working Humidity		10-90
Weight(without HDD)		N.W.:5.7Kg;With packing:6.9Kg

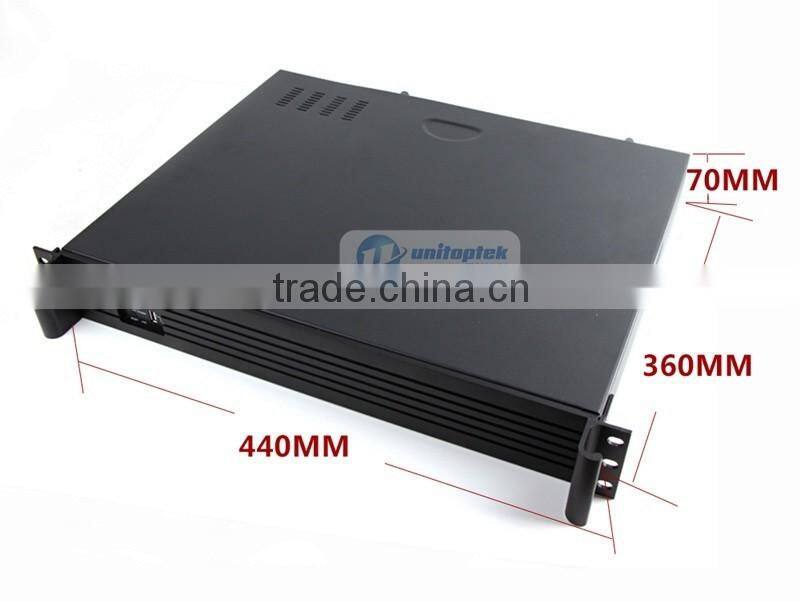

Dimension		Equipment:440mm×360mm×70mm, Packing: 460mm×135mm×560mm
Outside Carton		4 pcs/carton. 480mm×560mm×575mm; Weight:30 Kg
Installation Way		Desktop Installation

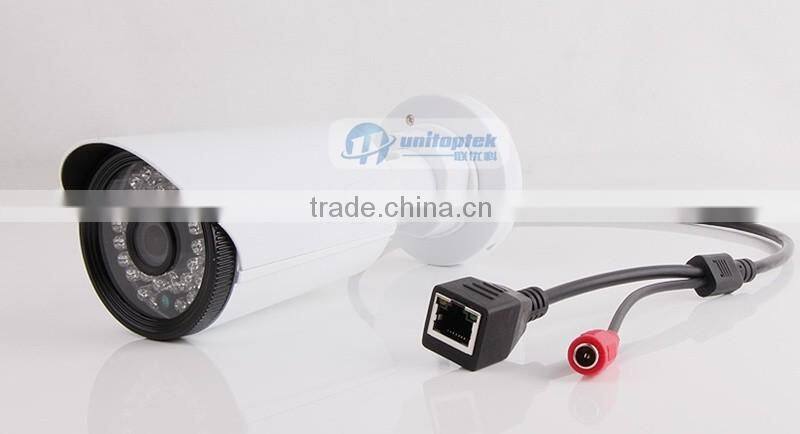

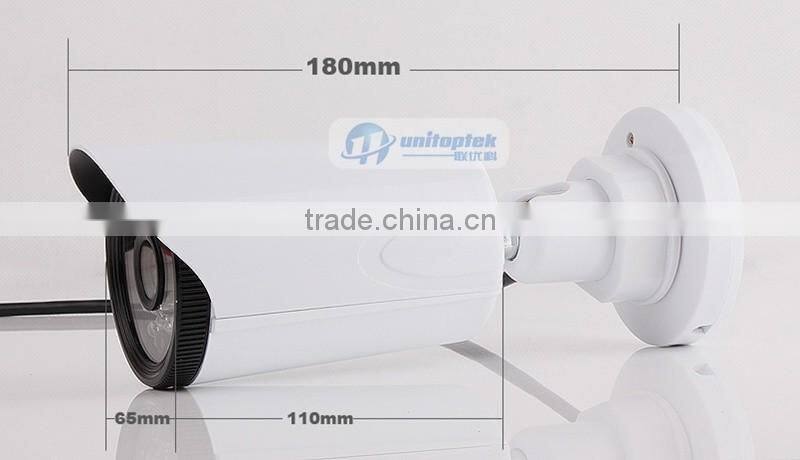

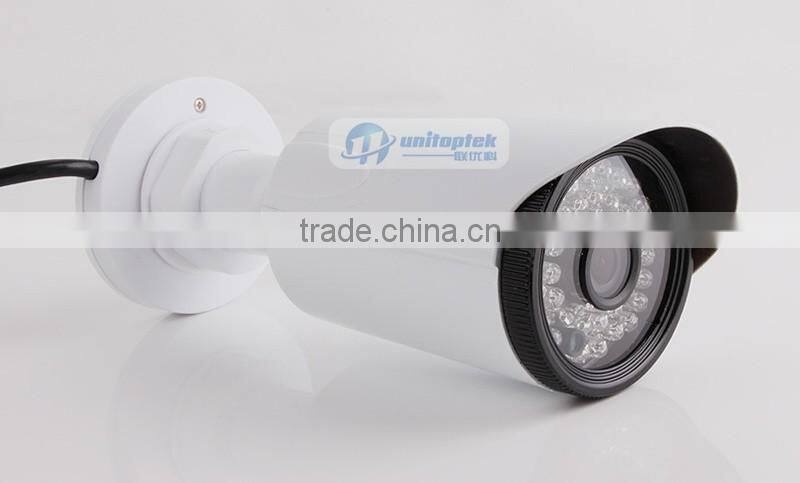

Bullet ip camera Main Features (IPCX-HC28461080-P):

(1)HI3516C Processing chip

(2)high sensitivity micron 2.0 megapixel coms

(3)Up to 1080P(1920*1080) resolutions

(4)Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on

(5)IR LED : 36 PCS,IR 20M

(6)Lens : 3.6mm

(7)POE Port : YES

Model	IPCX-HC28461080-P
System Structure	Embedded RTOS,dual-core 32bit DSP(Hi3516C),pure hard compression,watch dog
image sensor	1/2.8" IMX222 CMOS,support IR-CUT, support photo resistance signal linkage, CS lens;color 0.01LuxF1.2,black/white: 0.001LuxF1.2
Video compression	H.264,support dual-stream,AVI;0.1M~6Mpbs variable;1~30f/s variable;
Image output	main stream: 19201080;sub-stream:704576(1080p)
network interface	1*RJ45 10/100M;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc;
photo resistance	one photo resistance interface,support photo resistance signal links to IR-CUT
Features	Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, MJPEG capture;united remote client monitoring sofaware,MYEYE;perfect SDK;
ONVIF	support
mobile monitoring	support multiple mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)
Other functions	DC12V,3W(consumption),38mm*38mm;

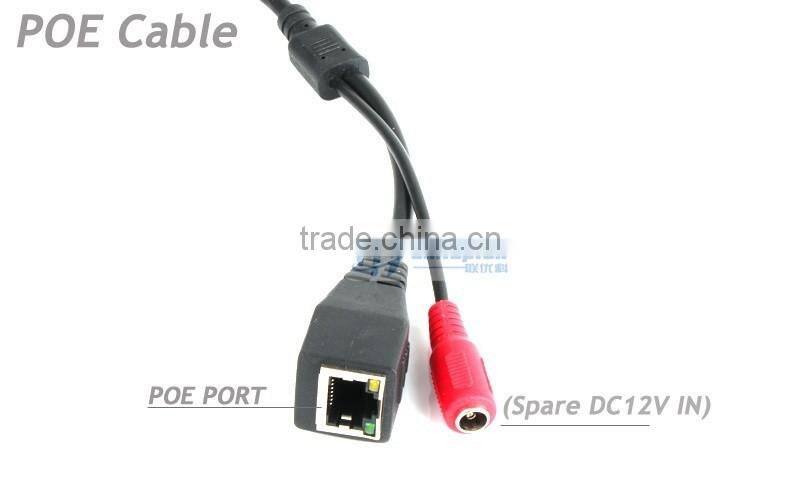

Notes	Support POE(optional),B1-type tail-line(without BNC interface)
POE Port	Yes
Size	1806565mm
Case	ABS Palstic,Waterproof,Outdoor Use
P2P Cloud	Support
Lens	3.6mm
Support NVR	YES

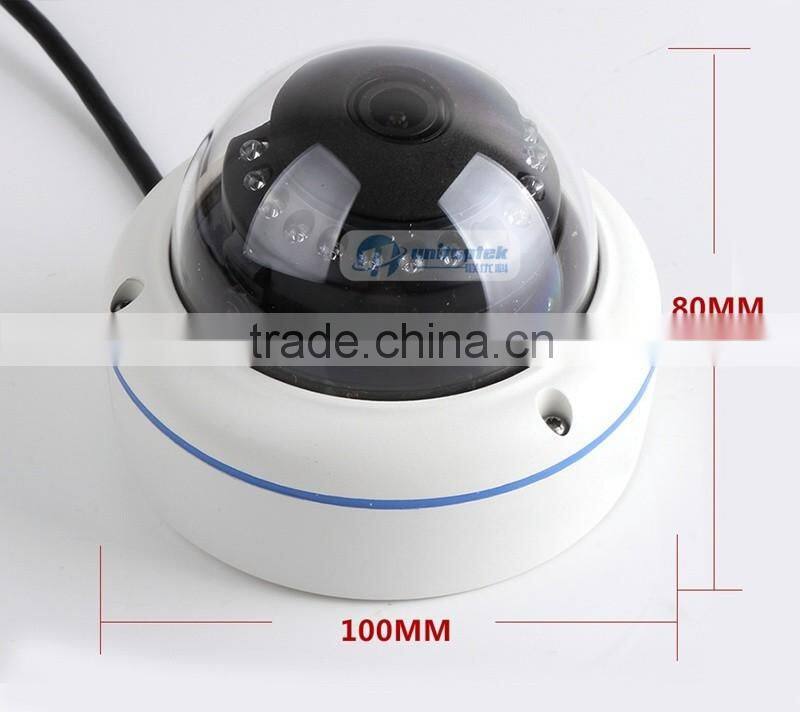

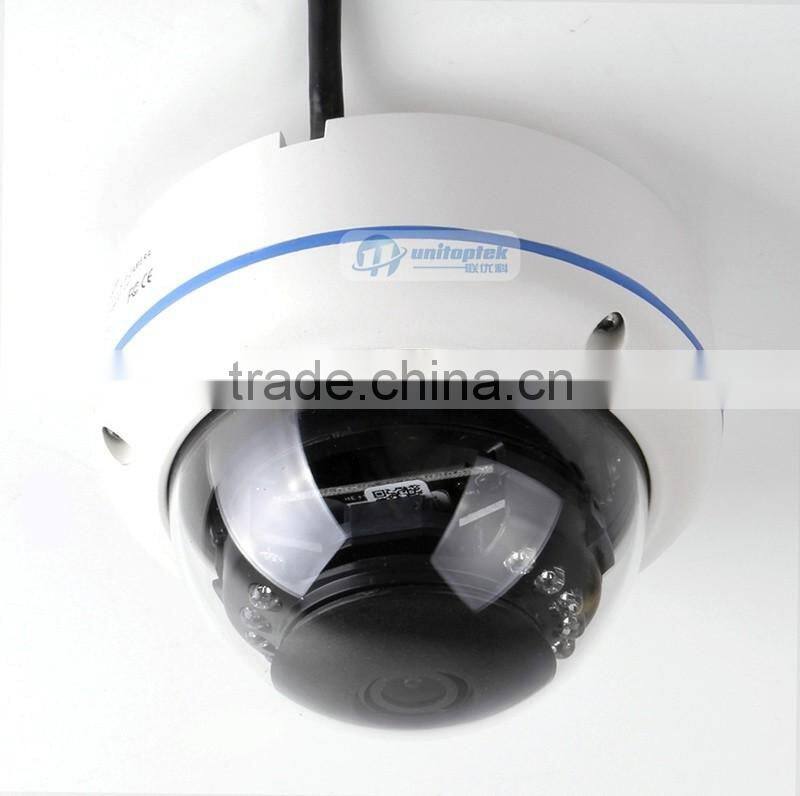

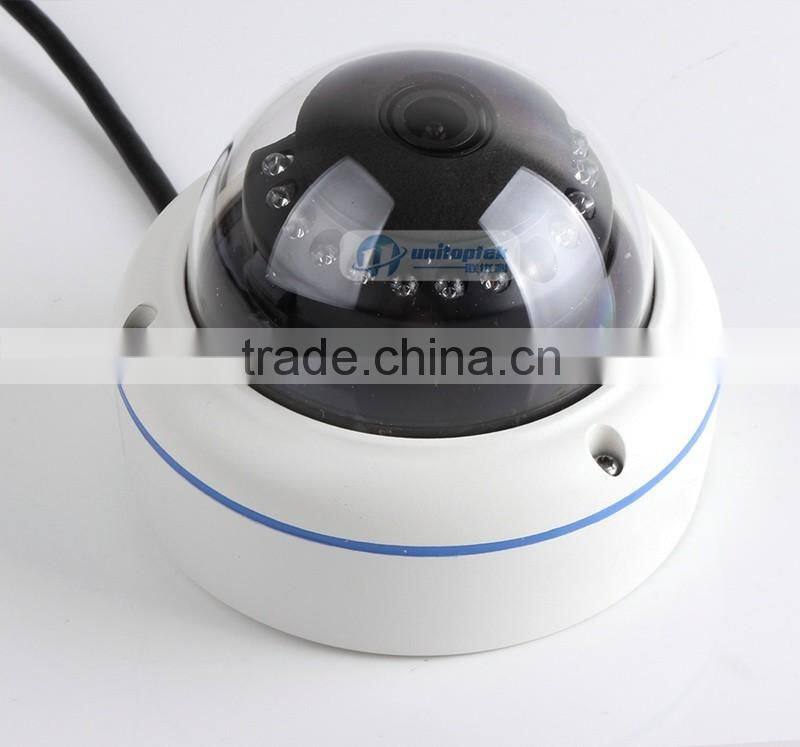

Dome ip camera Main Features(IPCX-BC28381080-P) :

(1)HI3516C Processing chip

(2)high sensitivity micron 2.0 megapixel coms

(3)Up to 1080P(1920*1080) resolutions

(4)Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on

(5)IR LED : 12 PCS,IR 10M

(6)Lens : 3.6mm

(7)POE Port : YES

Model	IPCX-BC28381080-P
System Structure	Embedded RTOS,dual-core 32bit DSP(Hi3516C),pure hard compression,watch dog
image sensor	1/2.8" IMX222 CMOS,support IRCUT, support photo resistance signal linkage, CS lens;color 0.01LuxF1.2,black/white: 0.001LuxF1.2;
Video compression	H.264,support dual-stream,AVI;0.1M~6Mpbs variable;1~30f/s variable;
Image output	main stream: 19201080;sub-stream:704576(1080p)
network interface	1*RJ45 10/100M;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc;
photo resistance	one photo resistance interface,support photo resistance signal links to IR-CUT
Features	Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, MJPEG capture;united remote client monitoring sofaware,MYEYE;perfect SDK;
ONVIF	support
mobile monitoring	support multiple mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)
Other functions	DC12V,3W(consumption),38mm*38mm;
Notes	Support POE(optional),B1-type tail-line(without BNC interface)
Case	Metal,Waterproof,Outdoor Use
POE Port	Yes
Size	10080mm(diameterhigh)
Case	Metal,Waterproof,Outdoor Use
P2P Cloud	Support
Lens	3.6mm (2.8mmm/6mm optional)
Support NVR	YES
