8PCS 1080p Outdoor Waterptoof Night Vision 10M Dome Network IP Kit 2MP Outdoor

FOB Price

US$ 529 - 545 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	UNITOPTEK
Model Number	8EP+TC28271080-P

8PCS 1080p Outdoor Waterptoof Night Vision 10M Dome Network IP Kit 2MP Outdoor

Product Description

Parameters:

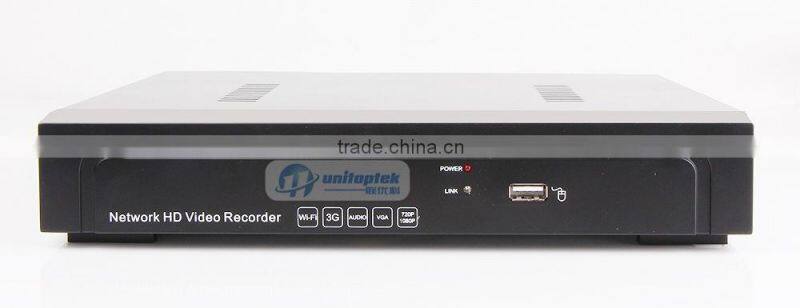

Model		8EP
System	Operating system	Linux
System	Screen display	1ch/ 4ch/ 8ch display
Video	Code capacity	1080P/ 960P/ 720P/ 960H/ D1/ HD1/ CIF/ QCIF
	Preview capability	8ch 1080P or 8ch 960P or 8ch 720P
		Each screen can be set to 192 (16×12) of detection regions; support multi-level sensitivity
Video playback	Recording	Manual> Alarm> Motion Detection> Schedule
	Playback	1ch 1080P/ 4ch 720P / 4ch 960P
	Video search	Time search, calendar search, event search, channel retrieval
Storage	Space	720P:40G/day/channel; 1080P:80G/day/channel
	Storage	Local HDD, Network
	Backup	Support Flash Drive, USB mobile HDD, USB DVD-RW. network storage and backup

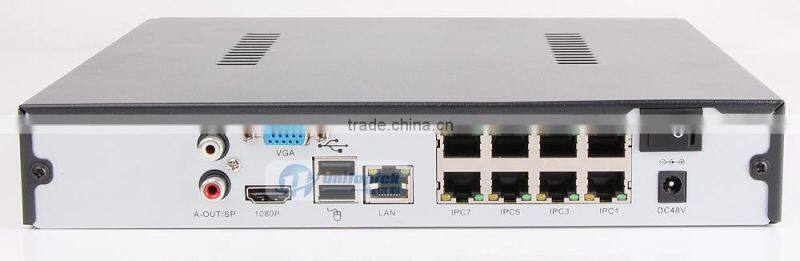

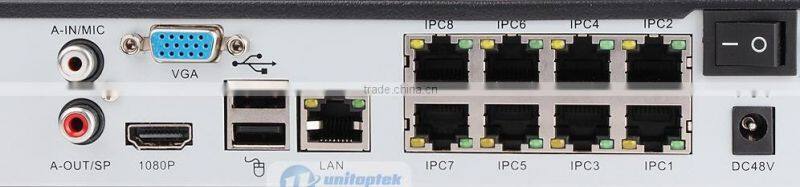

Interface	Video in	8x 1080P(2.0MP) IP Camera or 8x 960P(1.3MP) IP Camera or 8x 720P(1.0MP) IP Camera
	Video out	1ch VGA, 1ch HDMI(1920x1080)
	Audio in	1x RCA
	Audio out	1x RCA
	Alarm in	NO
	Alarm out	NO
	Ethernet	8x RJ-45 interface, for POE(Power over ethernet) 1x RJ-45 interface, for internet (10M/100M/1000M)
	PTZ	Not support
	USB	3x USB 2.0
	HDD	Support 1x SATA Hard Disk (max to 4TB)
Other	Power supply	DC48V2A (support 8pcs 80-100meters RJ45Cable)
	Power Consumption	<115W (without HDD)

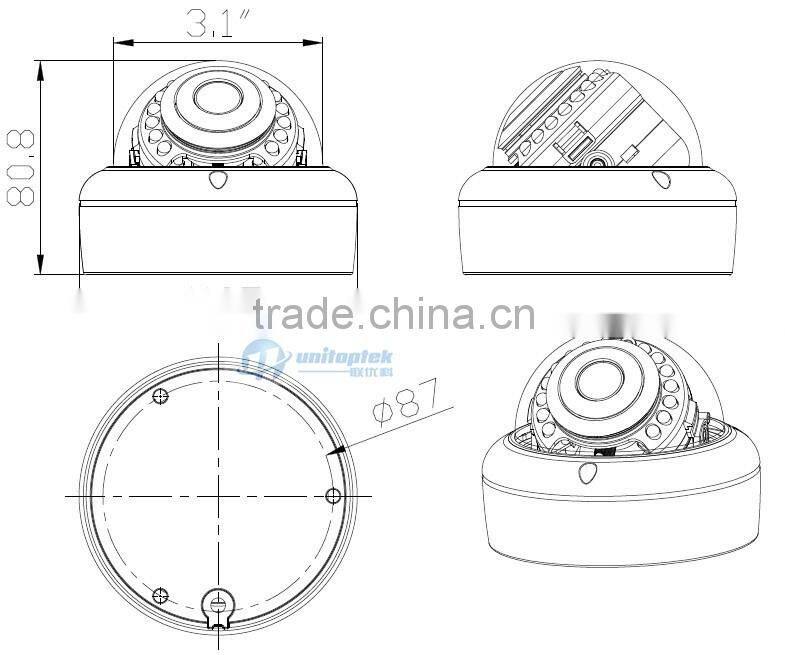

	Size	Equipment:260mmx220mmx43mm, Packing:355mmx255mmx88.5mm
	Weight	Net:1.6kg, Include package:2.5kg (not include HDD) 10 pcs/carton. 525mmx455mmx365mm; Weight:27 Kg

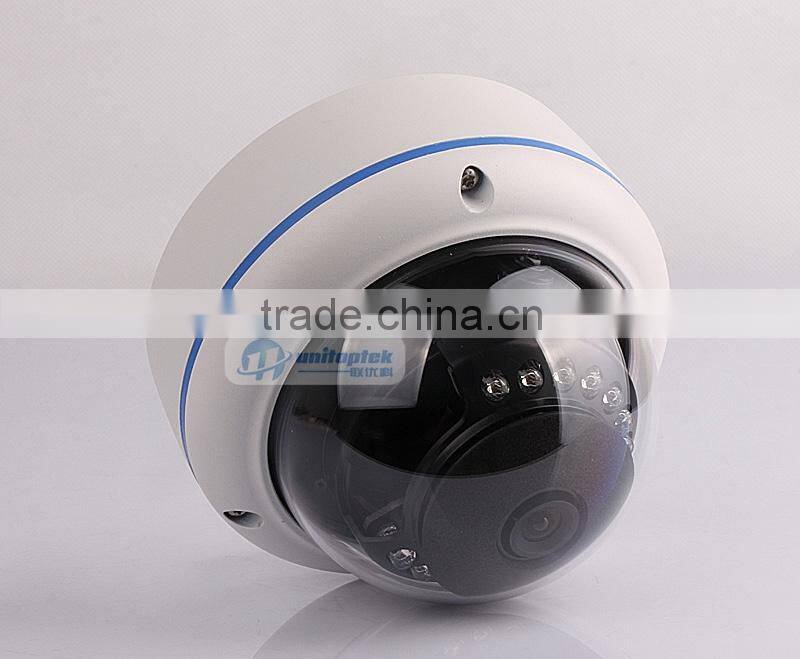

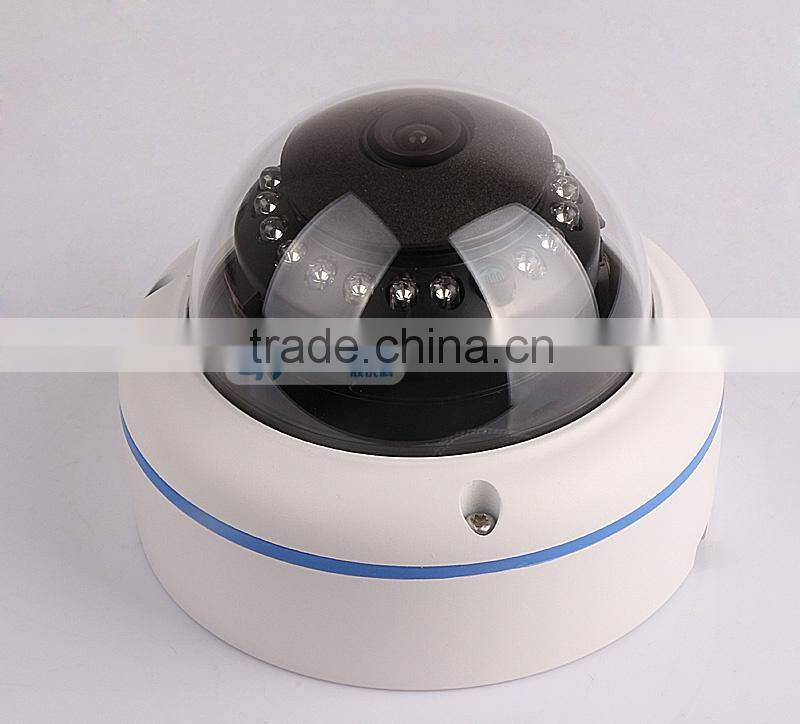

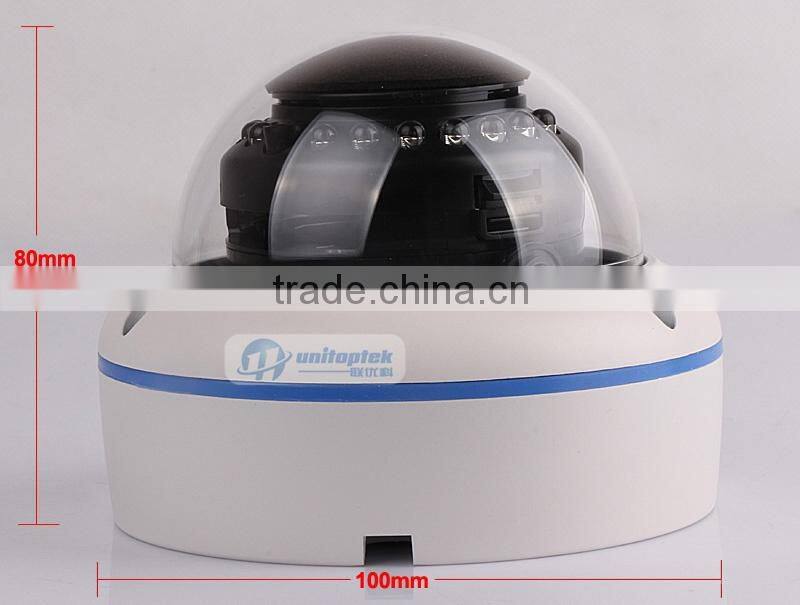

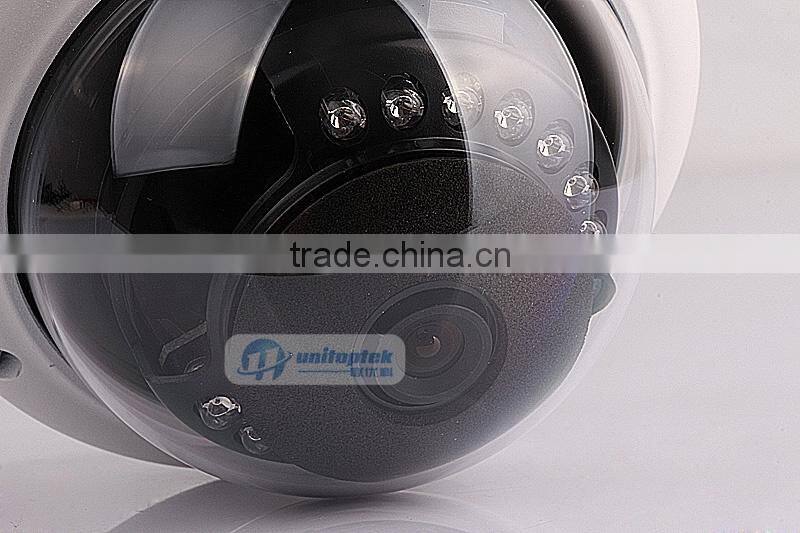

Dome ip camera Main Features :

(1)HI3516C Processing chip

(2)high sensitivity micron 2.0 megapixel coms

(3)Up to 1080P(1920*1080) resolutions

(4)Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on

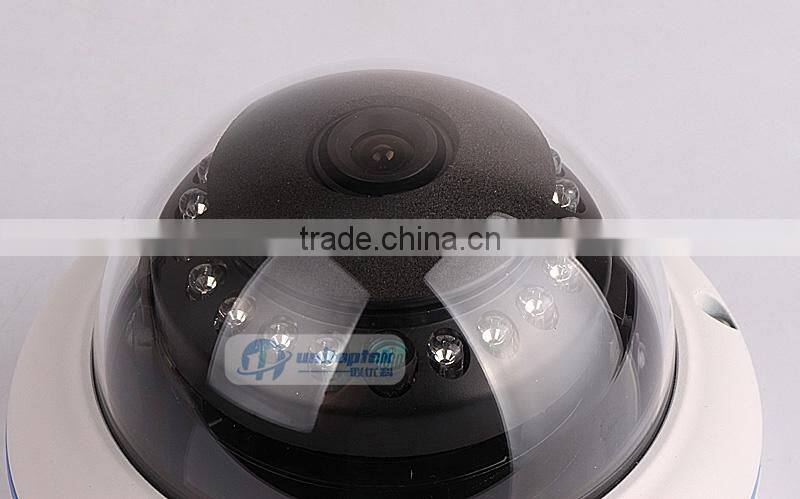

(5)IR LED : 10pcs,IR 10M

(6)Lens : 3.6mm

(7)POE Port : YES

(8)Support nvr Brand etc. and any made-in-china nvrs support onvif 2.0 or higher

(9)Support iPhone,Android view

Model	IPCX-BC28301080-P
System Structure	Embedded RTOS,dual-core 32bit DSP(Hi3516C),pure hard compression,watch dog
image sensor	1/2.8" IMX222 CMOS,support IR-CUT, support photo resistance signal linkage, CS lens;color 0.01Lux @ F1.2,black/white: 0.001Lux @ F1.2
Video compression	H.264,support dual-stream,AVI;0.1M~6Mpbs variable;1~30f/s variable;
Image output	main stream: 19201080;sub-stream:704576(1080p)
network interface	1*RJ45 10/100M;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc;
photo resistance	one photo resistance interface,support photo resistance signal links to IR-CUT
Features	Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, MJPEG capture;united remote client monitoring sofaware,MYEYE;perfect SDK;
ONVIF	support
mobile monitoring	support multiple mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)
Other functions	DC12V,3W(consumption),38mm*38mm;
Notes	Support POE(optional),B1-type tail-line(without BNC interface)
Case	Metal,Not Waterproof,Indoor Use,Vandal-proof
POE Port	Yes
P2P Cloud	Support
Lens	3.6mm (2.8mmm/6mm optional)
Support NVR	YES
