Product Details
| Place of Origin | Guangdong, China | Brand Name | UNITOPTEK | |
| Model Number | N6000-16EFP |
Product Description
2016 Newest 16CH NVR with 16 POE Interface FOR 1080P/5MP IP Camera Network Video Recorder 4*SATA for HDD Multi-language
• P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place with: goolink,org
• Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based on Onvif, RTSP standard
• Support megapixel HD network video preview, storage and playback;
• Support search, playback and backup by event;
• Support all channel image display on one screen at same time, support 4 channels’ image display by mainstream,and 4 channels playback;
• Support monitor PTZ on preview mode
• Offer CMS for free
• support 4 SATA(4*4TB=16TB)+1 E-SATA HDD ports
Note:This 16ch poe nvr max Support 16pcs poe ip camera(with the POE Port,48V power supply)
Main Functions:
1. Preview channel can be switched to other channel randomly without changing the MAC which is convenient for the project construction;
2. The dendritic menu can be moved. Man-machine communication is more direct and the settings of parameters are more easy and convenient;
3. The mouse roller can realize 15x digital zooming which the enlarged image can be dragged and moved randomly under preview and playback modes;
4. Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;
5. The recording playback is shown by time bar and different color represents different recording type. It is very fast and easy to find check the recording;
6. Recording backup can be accurate to second. Any time period of backup is available;
7. The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can be viewed directly;
8. With 3G, WIFI wireless connection functions;
9. Standard resolution which can be adjusted according to the display device in order to get the best image quality;
10. Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD
Model Number | N6000-16EFP | |
Operating System | Embedded LINUX operating system | |
Image Code Control | Image code quality adjustable, variable bitstream and constant bitstream optional | |
Dual Stream | Each channel can set main stream and sub stream | |
Video Standard | 5MP(2592×1944)30fps/ 3MP(2048×1536)30fps/1080P(1920×1080)30fps | |
Monitoring Image Quality | 5MP(2592×1944)/3MP(2048×1536)/1080P(1920×1080)/960P(1280×960) | |
Image Motion Detection | Each screen can set mutiple detection areas and set 6-level sensitivity(IPC Support) | |
Recording Playback Quality | 9ch 960P/ 1080P playback, 4ch/3MP/5MP playback | |
Region Cover | Every channel can set 4 cover regions(IPC Support) | |
Recording Mode | Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support) | |
Backup Way | Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup | |
Operation Way | Mouse, Keyboard | |
Local Login | User name and password | |
Recording Storage | Local HDD, network | |

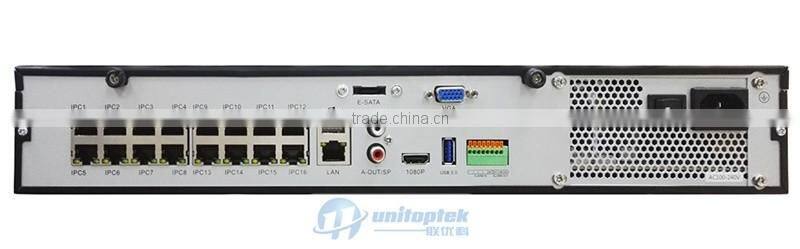

External Ports | Video Input | 1,16×1920*1080)+sub[960*576]+4Ref.+9Play 16ch 2.0MP IPCamera |
2,9×(2048*1536)+sub[960*576]+4Ref.+4Play 9ch 3.0MP IP Camera | ||
3,9×(2592*1944)+sub[960*576]+4Ref.+4Play 9ch 5.0MP IP Camera | ||
| ||
Audio Input | 9ch/16ch network audio input, 1ch RCA output | |
Video Output | 1ch VGA+1ch HDMI | |
Network Port | 1 RJ45,10M/100M/1000M self-adaptive LAN port | |
Alarm Input | 4ch/9ch | |
Alarm Output | 1ch | |
USB Port | 1 USB 3.0 port, 2 USB 2.0 ports | |
Wireless Port | WIFI | |
HDD | HDD Port | 4 SATA HDD Port+1 E-SATA |
MAX Capacity | Each port supports MAX 4TB HDD | |
POE Port | 16pcs POE Port,Support 16ch poe ip camera(48v power supply) | |

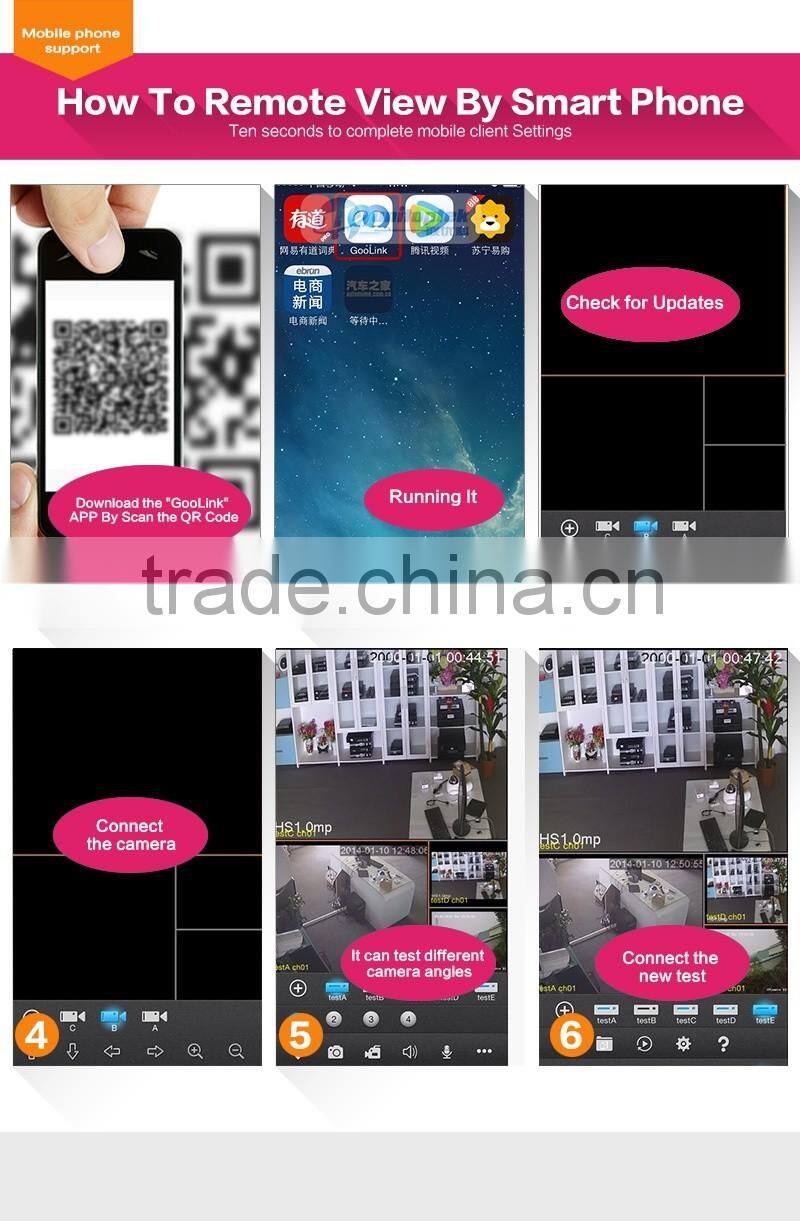

Mobile Surveillance | Support( Ios, Android) smart phone | |
Power Supply | ATX110-220V 350W 50-60Hz | |
Power Consumption | ≤208without HDD | |
Working Temperature | -10 | |
Working Humidity | 10-90 | |
Weight(without HDD) | N.W.:5.7Kg;With packing:6.9Kg | |
Dimension | Equipment:440mm×360mm×70mm, Packing: 460mm×135mm×560mm | |
Outside Carton | 4 pcs/carton. 480mm×560mm×575mm; Weight:30 Kg | |
Installation Way | Desktop Installation | |


Packing List:
1 x 16CH POE 1080P/3MP/5MP NVR
1 x DC 12V Power Adapter
1 x Screws Set
1 x USB Mouse
1 x HDMI Cable
1 x CD with Mobile Software and NetViewer
1 x User Manua
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
