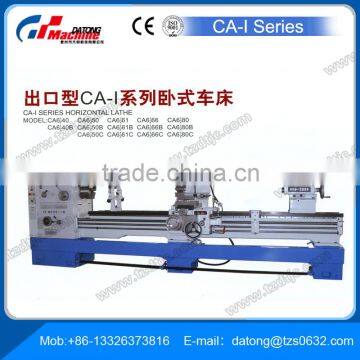

Export CA Series Horizontal Lathe Machine CA6161*750
- 200 Set / Sets per Month
- qingdao.tianjin.shanggai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Type | Horizontal | |
CNC or Not | Normal | Automatic Grade | Automatic | |
Max. Swing Diameter | 610mm | Place of Origin | Shandong, China | |
Brand Name | DATONG | Model Number | CA6161x750 | |
Voltage | 380V | Power(W) | 7.5kw | |
Dimension(L*W*H) | 2550*1120*1700mm | Weight | 2180/2800kg | |
Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Horizontal Lathe Machine CA6161*1500
Feature:
1.Hardened and ground slidwways,
2.Good rigidity,reliable accuracy.
3.Max.swing over bed:610mm
4.System:GSK 25i
Specification:
lathe machine specification | CA6140 CA6140B | CA6240 CA6240B | CA6150 CA6150B | CA6250 CA6250B | CA6161 CA6161B | CA6261 CA6261B | |
Max. Swing over bed | 400mm | 400mm | 500mm | 500mm | 610mm | 610mm | |
Max. Swing over carriage | 210mm | 210mm | 300mm | 300mm | 370mm | 370mm | |
Max. Swing in gap |
| 630mm |
| 720mm |
| 830mm | |
Effective gap length |
| 210mm |
| 210mm |
| 210mm | |
Max. Length of work piece | 750mm or 1000mm or 1500mm or 2000mm | ||||||
Width of bed | 400mm | ||||||
Section of turning tool | 25X25mm | ||||||
Spindle | Spindle speeds | 111600 R.P.M(24 steps) | |||||
| Hole though spindle | 52mm(80mm) | |||||
| Spindle taper | Morse No.6 | |||||
Feed | No. of feeds | 64 kinds(for each) | |||||
| Range of metric threads (kinds) | (1-192mm) 44kinds | |||||
| Range of inch threads(kinds) | (1-24tpi) 21kinds | |||||
| Rage of module threads(kinds) | 0.25-48(Module 39 kinds) | |||||
| Rage of Diametral pitc threads (kinds) | 1-96DP(37 kinds) | |||||
Tailstock | Max tailstock spindle travel | 150mm | |||||
| Tailstock spindle diameter | 75mm | |||||
| Taper of taistock spindle center hole | Morse No.5 | |||||
Main motor | 7.5KW(10HP) | ||||||
Picking dimensions (L×M×H mm) | Weight (Kg) | ||||||
| G.W. | N.W. | G.W. | N.W. | G.W. | N.W. | |
Overall dimensions for 750 | 2550*1120*1700 | 2700 | 2000 | 2700 | 2100 | 2800 | 2180 |
Overall dimensions for 1000 | 2650*1120*1700 | 2800 | 2100 | 2900 | 2150 | 3000 | 2250 |
Overall dimensions for 1500 | 3150*1120*1700 | 3050 | 2250 | 3050 | 2300 | 3200 | 2450 |
Overall dimensions for 2000 | 3600*1120*1700 | 3450 | 2600 | 3500 | 2700 | 3400 | 2800 |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
