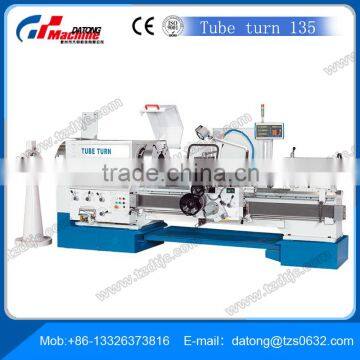

TubeTurn 135 Box-way Lathe( large spindle bore and dual lathe chuck for long tubes)

• heavy machine bed made of premium cast-iron with hardened and ground guideways
• massive headstock with high-precision spindle running in tapered roller bearings, and 2 lathe chuck mounts on both sides
• gears are hardened and ground
• high torque at the working spindle ensures high chip removal rates when machining parts with large diameters
• powerful main drive motor with 11 kW power
• central, practical controls for feeds and thread leads
• wide spectrum of inch and metric threads
• heavy-duty 4-station tool holder
• coolant system is included
• taper turning unit with 500 mm turning length

3-axis position indicator

• more accuracy
• lower error rate
• increased productivity
• resulting in valuable time savings
• for increased productivity
• easy to read display
• operator-specific features
• convenient keyboard layout
• resolution: 0.01/ 0.005 mm
• default coordinates
• axis position is maintained when display is turned off
• hole circle pattern calculation
• calculator function
• storage for 10 tools
• radius / diameter toggle
• mm/inch conversion
• easy expansion and maintenance-free operation
• display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes

Standard Equipments:

3-axis position indicator, 4-station tool holder, two 3-jaw lathe chucks 400 mm, coolant system, operator manual

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.

Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.

"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.

The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
