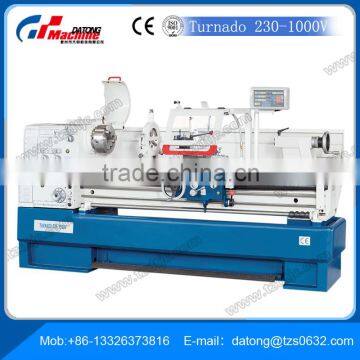

Turnado 230/1000 V Lead Screw and Feed Shaft Lathe

• cost-effective, lasting value
• practically arranged control panel with ergonomic layout of selection levers
• Camlock spindle mount D1-6
• wide bed, ground and hardened
• offset tailstock for taper turning
• large number of thread leads
• removable gap bridge for machining of large diameter
• stop spindle with adjustable travel stops

Turnado with infinitely variable speed adjustment

• back gearing, first-class control technology and a powerful headstock motor allow a wide range of speeds and high torque for powerful machining
• very quiet operation at maximum spindle speed
• spindle speed infinitely variable 3000 rpm
• the extensive features of the X.Pos Position Indicator are complemented by a speed display and vconst (constant speed) function: During face turning, the spindle speed automatically adapts to the changing workpiece diameter – the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with a quality comparable to CNC lathes

3-axis position indicator

• more accuracy
• lower error rate
• increased productivity
• resulting in valuable time savings
• for increased productivity
• easy to read display
• operator-specific features
• convenient keyboard layout
• resolution: 0.01/ 0.005 mm
• default coordinates
• axis position is maintained when display is turned off
• hole circle pattern calculation
• calculator function
• storage for 10 tools
• radius / diameter toggle
• mm/inch conversion
• easy expansion and maintenance-free operation
• display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
