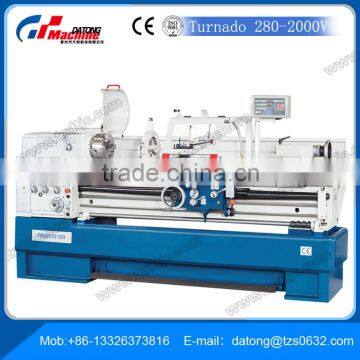

Turnado 280/2000 V Lead Screw and Feed Shaft Lathe

• cost-effective, lasting value
• practically arranged control panel with ergonomic layout of selection levers
• Camlock spindle mount D1-8
• offset tailstock for taper turning
• wide bed, ground and hardened
• large number of thread leads
• removable gap bridge for machining of large diameter
• stop spindle with adjustable travel stops

Turnado with infinitely variable speed adjustment

• back gearing, first-class control technology and a powerful headstock motor allow a wide range of speeds and high torque for powerful machining
• very quiet operation at maximum spindle speed
• spindle speed infinitely variable 1600 rpm
• the extensive features of the X.Pos Position Indicator are complemented by a speed display and vconst (constant speed) function: During face turning, the spindle speed automatically adapts to the changing workpiece diameter – the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with a quality comparable to CNC lathes

3-axis position indicator

• more accuracy
• lower error rate
• increased productivity
• resulting in valuable time savings
• for increased productivity
• easy to read display
• operator-specific features
• convenient keyboard layout
• resolution: 0.01/ 0.005 mm
• default coordinates
• axis position is maintained when display is turned off
• hole circle pattern calculation
• calculator function
• storage for 10 tools
• radius / diameter toggle
• mm/inch conversion
• easy expansion and maintenance-free operation
• display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes

Standard Equipments:

3-axis position indicator, 3-jaw chuck Ø 320 mm, 4-jaw face plate chuck Ø 400 mm, face plate Ø 450 mm, quick tool changer head WC1, quick change tool holder WBD 25120, coolant system, fallow and steady rest, stop spindle, includes fixed splash guard (wall), chuck guard, foot brake pedal, halogen lights, reducing sleeve, dead center, thread gauge, operating tools, operator manual
