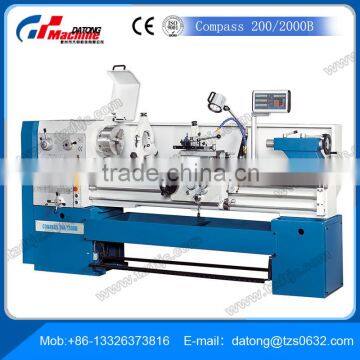

Compass 250/2000 B Universal Lathe

One lathe for single-part and batch production including 3-axis assembled

• stable, very rigid cast iron frame with heavy deadweight
• wide v-guides, induction-hardened and precision-ground
• removable gap bridge for machining of large diameter parts
• to ensure maximum accuracy and smooth operation at high speeds the main spindle is dynamically balanced and supported by adjustable precision bearings
• high machining performance with heavy-duty 5.5 kW main drive
• quick chuck changing and many options using the ASA D1-6 spindle mount acc. to DIN 55029
• accuracy tested according to DIN 8606, best surface roughness of 1.6 µm/N7 acc. to DIN 1302
• large spindle capacity allows for high machining variability
• quick change tool holder system allows for fast tool changing
• a steady and a follow rest stabilize long workpieces
• infinitely variable slip clutch mounted directly to the support allows for easy working with stops
• eliable lubrication of the guideways through central lubrication mounted inside the apron
• includes time-saving foot brakes

Standard Equipments:

3-axis position indicator, 3-jaw chuck Ø 250 mm, 4-jaw face plate chuck Ø 320 mm, face plate Ø 400 mm, dog plate, change gears, quick change tool holder, coolant system, steady and fallow rest, chip tray, includes fixed splash guard (wall), chuck guard, foot brake pedal, work lamp, reducing sleeve, dead center, operating tools, operator manual
