HZS25 Concrete Batching Plant
- China main port
- T/T Credit Card
You May Like
-
New Type Concrete Mixer Plant HZS25, Wet Mix Concrete Batching Plant
-
Malaysia HZS25concrete Batching Mixing Plant for Sale, Small Concrete Mixing Plant
-
Ready Mixed Concrete Batching Plant HZS25, Smallest Concrete Plant for Sale
-
Concrete Admixture Mixing Plant35m3/h, Lower Cost for Concrete Batching Plant
-
HZS25 Concrete Mixing Plant 25m3 Cement Plant for Sale
-
Ready Mix Concrete Plant HZS35
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | YUJIE | |
| Model Number | HZS25 | Power(W) | 18.5KW | |
| Dimension(L*W*H) | 14.5m *5.6m *5.9m | Weight | 7700Kg | |
| Certification | CE ISO TUV SASO | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

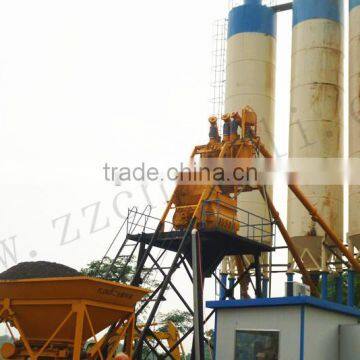

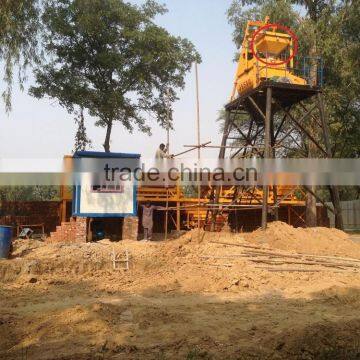

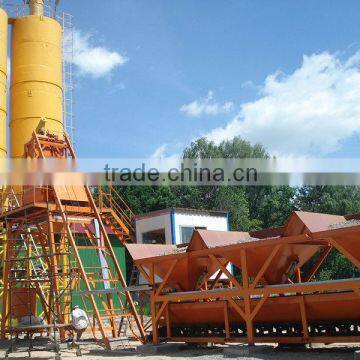

HZS25 concrete batching plant
Zhengzhou Changli Machinery Manufacturing Co., Ltd. is one of the leading professional manufacturers and suppliers of Concrete Mixing/Batching Plant/Station, Stabilized Soil Mixing Station, Concrete Mixer, Concrete Batching Machine, Screw Conveyor, Cement Silo, Concrete Mixing Truck, concrete pump Tower Crane, Construction Elevator, etc. Meanwhile, we accept customization of steel products and supply relevant construction machinery. We are the Top 10 in China in Construction Enterprise Group.
Technical about HZS25
Model | HZS25 |
Rated Productivity | 25m3/h |
Main Mixer | JS500 (0.5m3) |
Power of Main Mixer | 18.5KW |
Max. Aggregate Diameter | 80mm |
Delivery Capacity | 0.5m3 |
Feeding Mode | Lift Hopper |

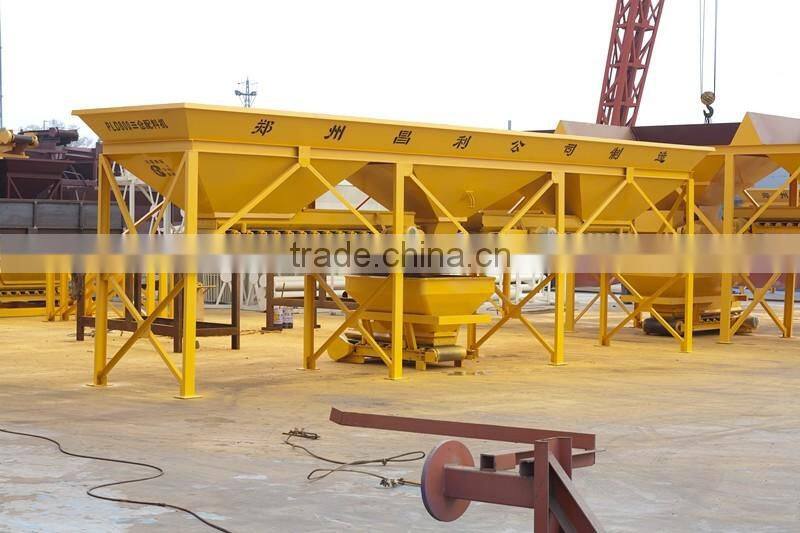

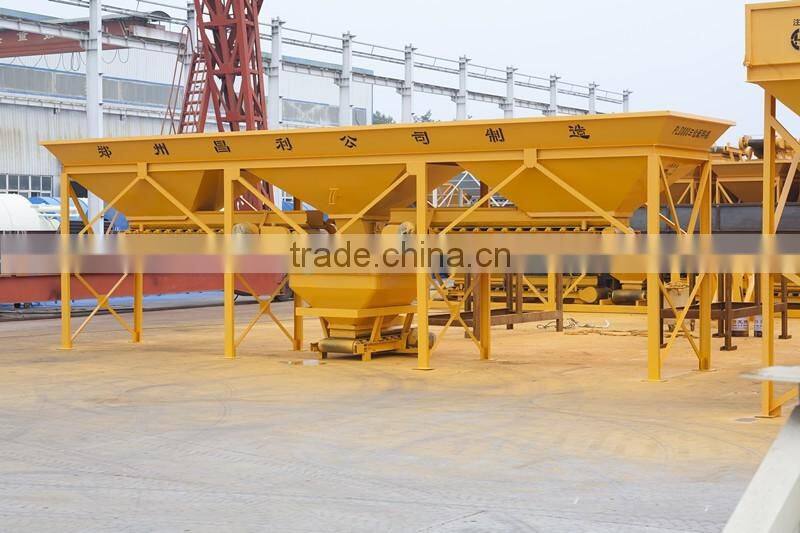

Batching Unit | PLD800 |
Measuring Scope & Accuracy of Aggregate | 1500Kg ±2% |
Measuring Scope & Accuracy of Cement | 300Kg ±1% |
Measuring Scope & Accuracy of Water(by flow meter) | 200Kg ±1% |
Discharging Height | 3.8 m |

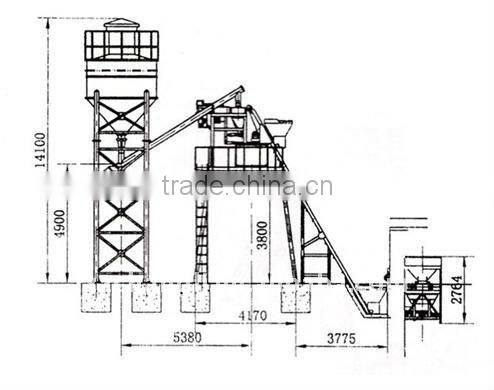

Outline Dimension(Operational State)(L*W*H) | 14.5m *5.6m *5.9m |
General Power | 45.0KW (380V,50HZ) |
Total Weight | 7700Kg |
Control Mode | Centralized control |

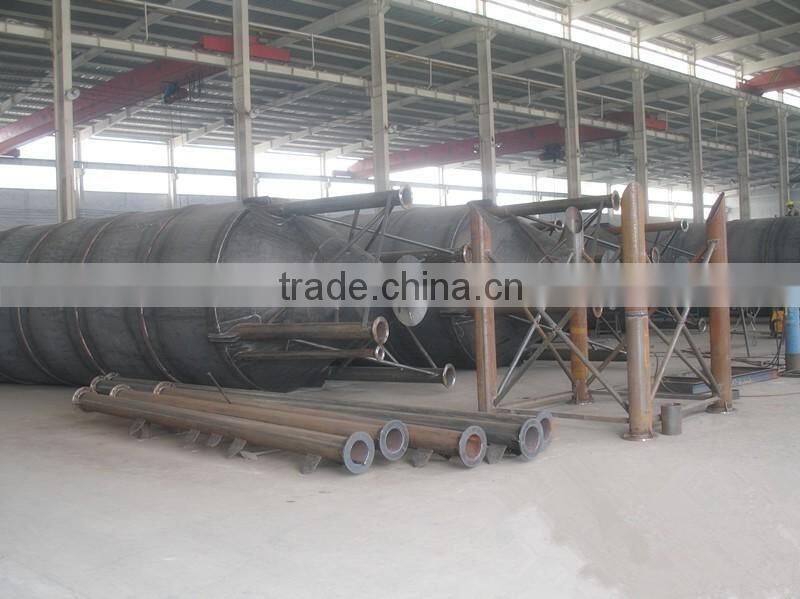

Cement Silos | 1*50T |

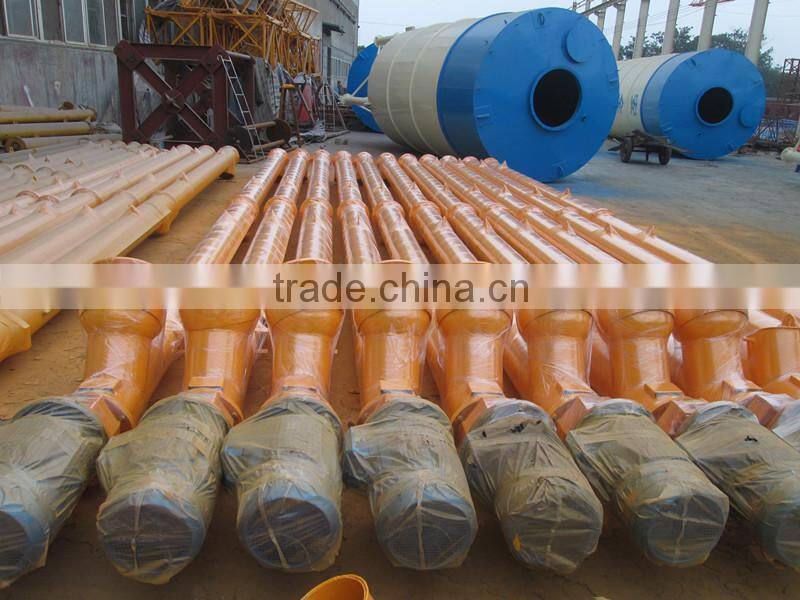

Screw Conveyor | 1*φ219 screw conveyor |

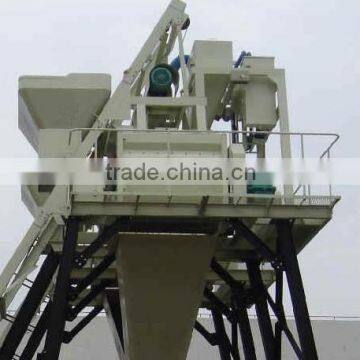

Mixing system
Batching system

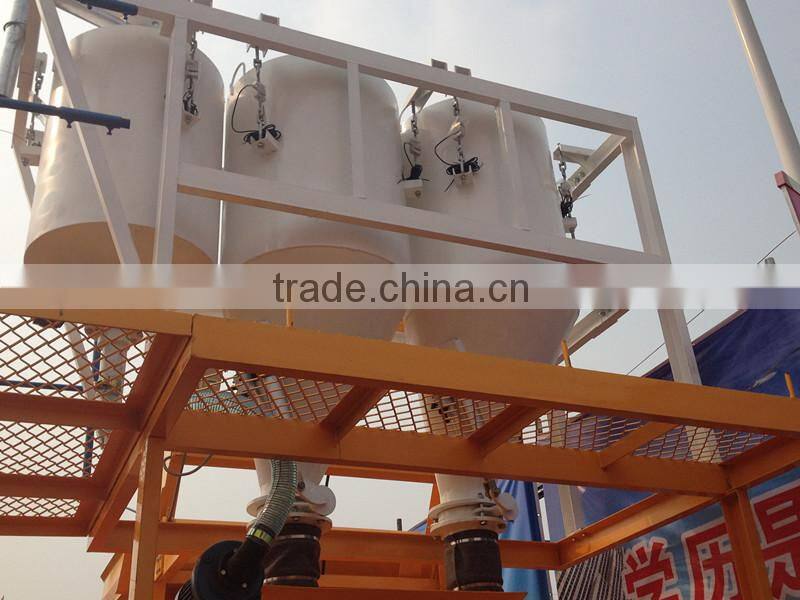

Weighing system

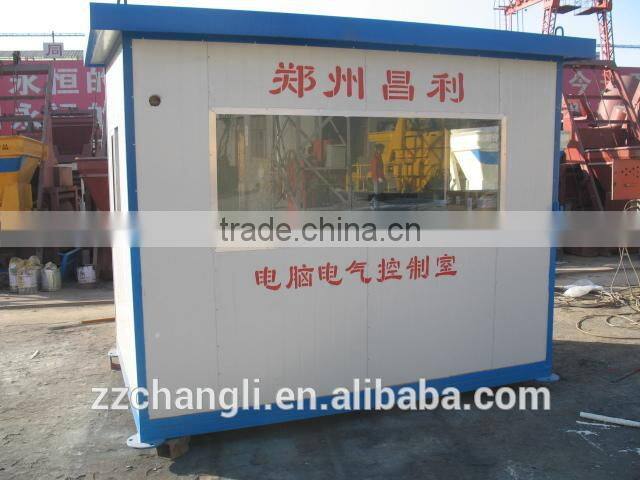

Control system
Optional system
