Hzs35 Low Mini Concrete Mixing Plant for South America

 hzs35 low mini concrete mixing plant for South America

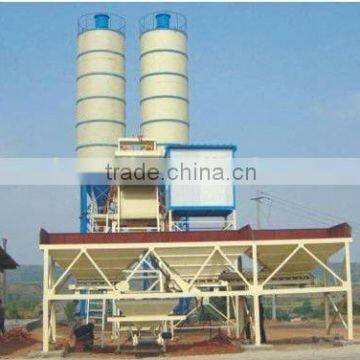

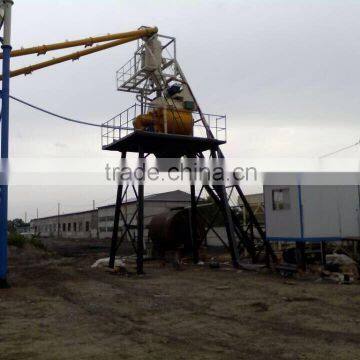

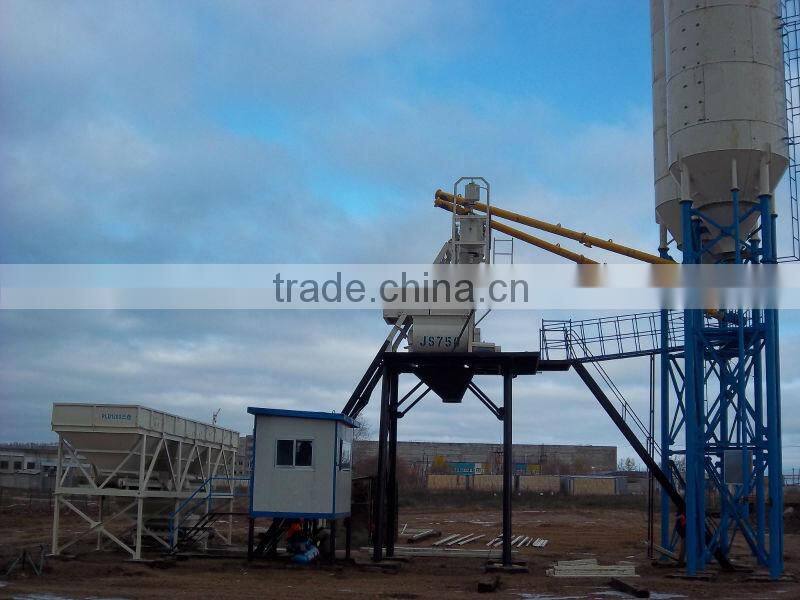

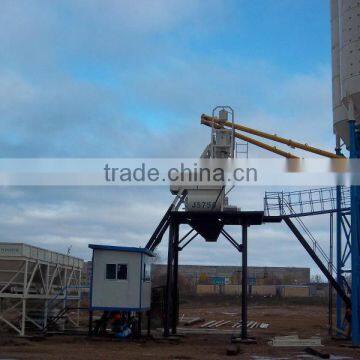

HZS series adopts modular structure design, which maintains convenient installation&removal, safe, comfortable and reliable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintenance. Full-closed main mixing body, aggregate conveying system and dust removal system, it can effectively reduce dust and noise pollution.   The whole set of concrete batching plant is consist of batching station, belt conveyor, silo, screw conveyor, conmpulsion type double horizontal mixer, measuring system, water supply system, air supply system, control system, main frame, etc

Main Technical Parameter of HZS35concrete batching plant :

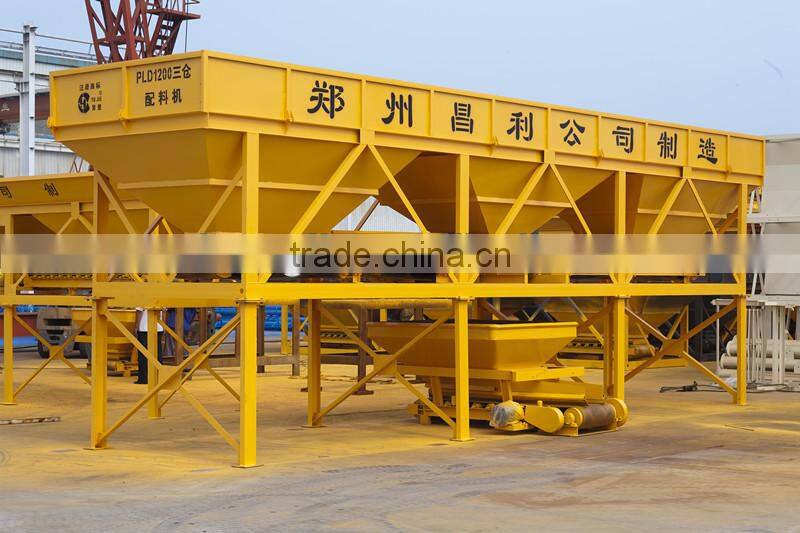

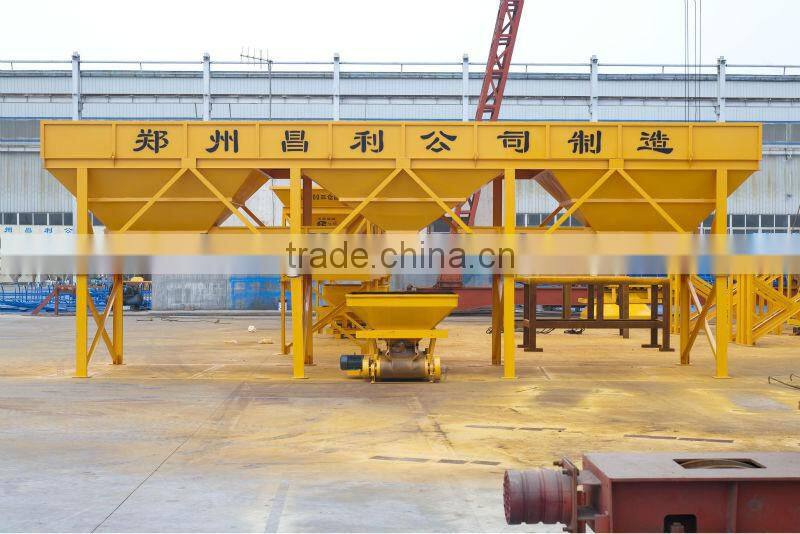

(1)Aggregate Batching System( Batching Machine)

PLD1200 batching Machine is composed of feed device weighing system and electrical control system. The feeding device is arranged on line. The batching system adopts sensor to measure.

(2)Mixing System

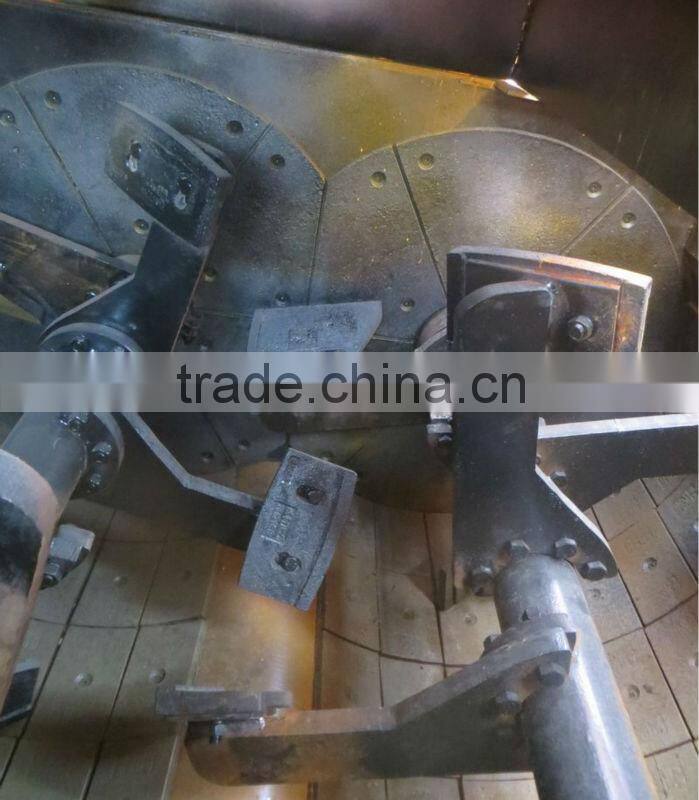

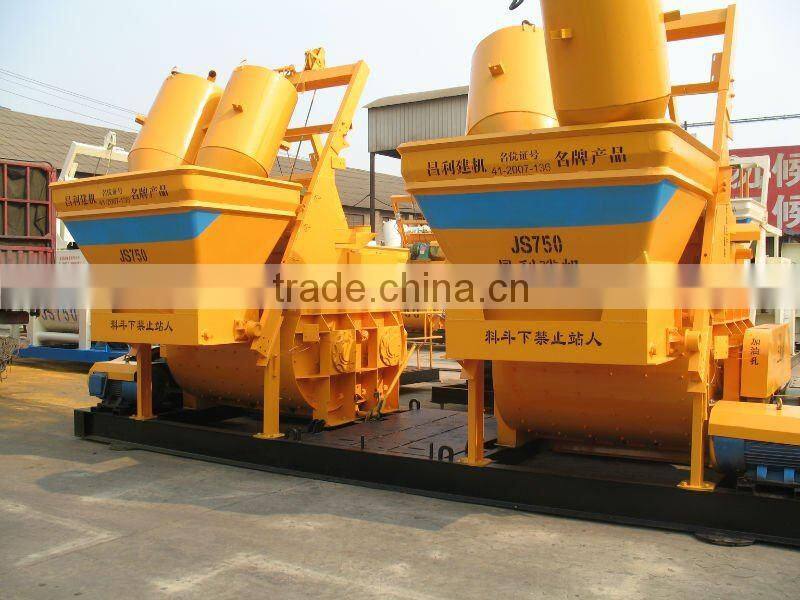

The machine adopts JS750 double horizontal-axis forced mixer. It introduces new techniques of Deutsch axile seal. There is four seals on the end of shaft, the service life is longer than other seal method, and reduce possibility of trouble and easy to replace and maintain. The liner and mixing blade is made of wear resistant alloys and advance the performance of wear resistant.

(3)Cement Silo

The function of air supply system is supply compressed air to all actuating element. It is composed of air compressor cylinder electromagnetism valve and accessories of pipeline.

(4)Screw Conveyer

LSY screw conveyor is column which is a screw inside, and the screw circumrotate continually for convey materiel. The equipment adopts originated patent universal feed port, it is easy to install.

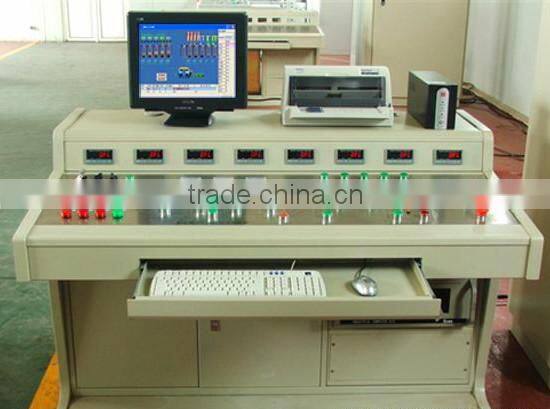

(5)Electrical Control System

The electrical control system of concrete mixing plant can control two set of absolute mixer, cement weigher, water weigher, liquid additive weigher and a sert of aggregate batching system. The aggregate batching system can finished the batching task automatic. There is a high reliability PLC and industry computer to control the concrete mixing plant. The component of electrical control system adopts import parts from Japan OMRON Company and France Schnider Company.

   Zhengzhou Changli Machinery Manufacturing Co., Ltd. was established in 1982. It is a comprehensive group corporation combined with design, production and sale sectors, located in Construction Machinery Base---Xingyang, Zhengzhou City.
         With more than 20 years development, Zhengzhou Changli has become one of the leading professional manufacturers and exporters of Construction Machinery in China. Till now, the factory area covering reaches 120,000m2 and have about 1000 person, including engineers, workers, sales, and service people.

                                                                        WELLCOME TO VISIT US!
