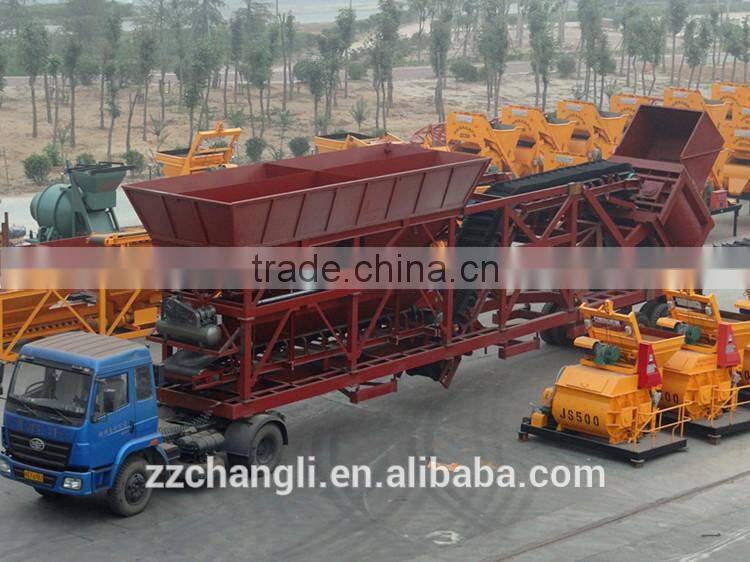

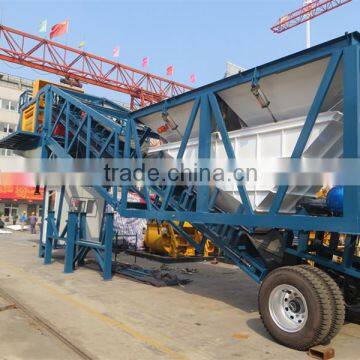

Portable Concrete Mixer Machine,mobile Type Concrete Batching Plant 25-75m3/h

No.

Name

Specs

Production

Qty.

Unit

Origin/Brand

1

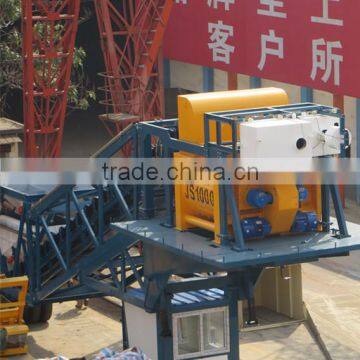

JS1000 Concrete Mixer

Main Reducer

JS1000

Dezhou Shengjian

2

pc

Main Motor

18.5KW

Kaifeng

2

pc

Hydraulic Station

kpio-02

Guangzhou Zhongshan

1

pc

Electric Thick Oil Pump

0.06KW

Nanjing

1

pc

Discharging Hydraulic Cylinder

100*300

Changli Make

1

pc

Lining Board and Blades

High chromium alloy

Zhengzhou

1

set

Mixing Arm

Q235

Zhengzhou

1

set

Overall Structure

Changli Make

1

set

2

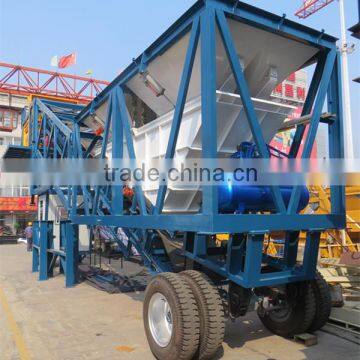

PL1600 Batching Machine

 with two bins

Weighing Bins

Volume 5.6m3

Changli Make

1

pc

Storage Bins

Volume11.3m3

Changli Make

2

pc

Pneumatic Cylinder

SC100x250

Zhengzhou

4

sets

Tension Sensor

3T

Anhui Bengbu

4

pc

Vibrator

180W

Zhejiang

4

pc

Overall Steel Structure

Overall design

Changli Make

1

set

3

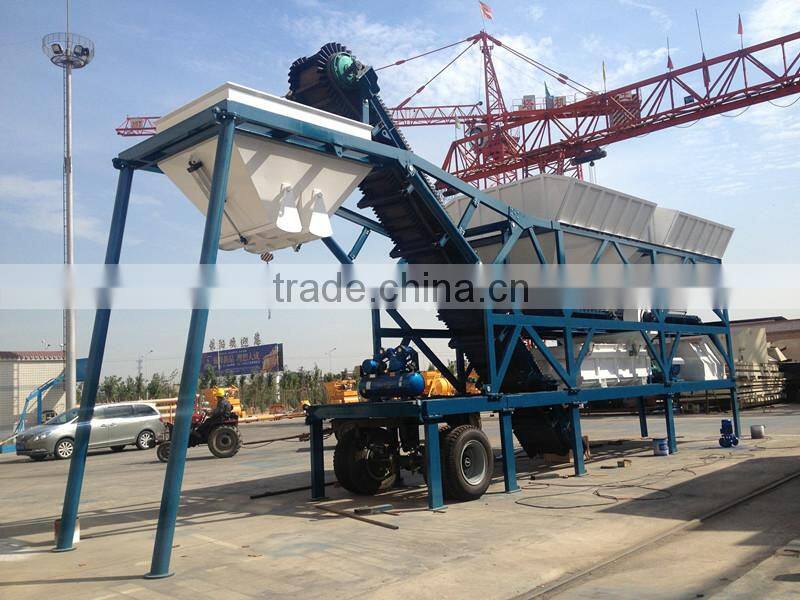

Aggregate Feeding Belt Conveyor

Electric Drum

Belt Speed: 2m/s

Power: 18.5KW

Jiangsu

1

pc

Conveying Belt (L*W)

26500mm*1000mm

Kaifeng

1

pc

Overall Structure

Changli Make

1

set

4

Main Structure

Main Structure

Changli Make

1

set

5

Water Weighing System

Water Weighing Tank

0.36m3

Changli Make

1

pc

Tension Sensor

200kg

Anhui Bengbu

3

pc

Pipeline Centrifugal Pump

3KW

Zhejiang

1

pc

Pneumatic Valve

Φ100mm

Zhengzhou

1

set

Submersible Pump

3KW

Zhengzhou

1

pc

Pipeline System

Plastic Water Pipe

Zhengzhou

1

pc

6

Additive Weighing System

Additive Weighing Tank

0.031m3

Changli Make

1

pc

Tension Sensor

100kg

Anhui Bengbu

1

pc

Pneumatic Butterfly Valve

Φ80

Zhengzhou

1

set

Additive Pipeline Pump

2.2kw

Shanghai

1

pc

Pipeline System

Plastic Water Pipe

Changli Make

1

set

Additive Mixing Tank

Volume 2m3

Changli Make

1

pc

7

Cement Weighing System

Weighing Hopper

0.79m3

Changli Make

1

set

Tension Sensor

300kg

Anhui Bengbu

3

pc

Pneumatic Butterfly Valve

Φ300mm

Zhengzhou

1

set

8

Screw Conveyor

Cement Screw Conveyor

LSY Φ219

8*11KW

Changli Make

1

pc

9

Cement Silo

With Arch Breaker

100T

Changli Make

1

pc

10

Pneumatic Control System

Air Compressor

7.5kW

Shanghai

1

pc

Air Storage Tank

0.2m3

Changli Make

1

pc

Pipeline System

Changli Make

1

set

11

Electric Control System

YHZS50 Control Cabinet

Changli Make

1

pc

Main Electronic Components

Schneider

1

set

Industrial Microcomputer

Yanhua

1

set

Color Display

19″

Made in China

1

pc

Printer

Needle Type

Made in China

1

pc

Color Camera

Made in China

4

pc

Monitor

14″

Made in China

1

pc

12

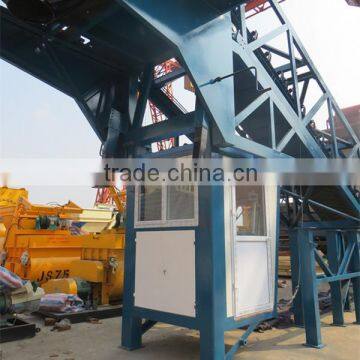

Control Room

Control Room Outline Dimension

1700*1527*2381mm

Changli Make

1

pc

Control Room Steel Structure

Changli Make

1

set

Air Conditioner

1.5P

CHIGO

1

pc
