Dry Mix Concrete Plant Hzs25, Automatic Mini Concrete Batching Plant With High Quality 25m3/h
- Qingdao
- T/T Credit Card
You May Like
-
Wet Concrete Batching Plant for Sale,two Mixer Efficiency Concrete Batching Plant 60m3/h With Belt Type
-
Mobile Concrete Batching Plant for Sale,ready Mixed Concrete Batching Plant 35m3/h
-
Ready Mixed Concrete Plant for Sale,HZS35 Concrete Batching Plant With Full Automatic Control in Sri Lanka
-
Factory Price HZS50-50M3/H Mobile Concrete Batching Plant Price
-
Concrete Batching Plant Calibration,belt Type Concrete Batch Plant 60m3/h for Sale
-
ZL-18 High Quality& Cheap Mini- Hydrauli and Mechanical Wheel Loader,backhoe Loaders ,manufacturer of Wheel Loader Supplier's Choice
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | YUJIE | |
| Model Number | HZS25 | Power(W) | 45kw | |
| Dimension(L*W*H) | 14.5m*5.6m*5.9m | Weight | 15T | |
| Certification | CE ISO SGS | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
dry mix concrete plant hzs25, automatic mini concrete batching plant with high quality 25m3/h
Main parts of HZS25 concrete plant:
1. JS500 twin-shaft concrete mixer;
2. PLD800 aggregate batcher;
3. welding type 50T or bolted type 100T cement silo;
4. Screw conveyor 219mm*8m;
5. water, cement and additive scales;
6. Air compressor;
7. Fully automatic computer control system with Omron PLC.
Specification of HZS25 concrete plant:
Item | Parameter |
Max. Productivity | 25 m3/h |
Nominal capacity of mixer | 0.5 m3 |
Max Weighing Value of aggregate | 1500kg |
Max Weighing Value of cement | 300kg |
Max Weighing Value of water | 150kg |
Max Weighing Value of additive | 40kg |
Rating transport capacity of screw conveyor | 35 |
Capacity of Cement Cabin | 50t |
Mixing Power | 18.5kw |
Hoist Power | 5.5kw |
Power of Machine | 60kw |
Weight of Machine | 25t |
Outline Dimension(LxWxH) | 15x8x14(m) |
Discharge Height | 3.8m |
Aggregate measuring accuracy | ≤2 % |
Water measuring accuracy | ≤1 % |
Cement measuring accuracy | ≤1 % |
Additive measuring accuracy | ≤1 % |

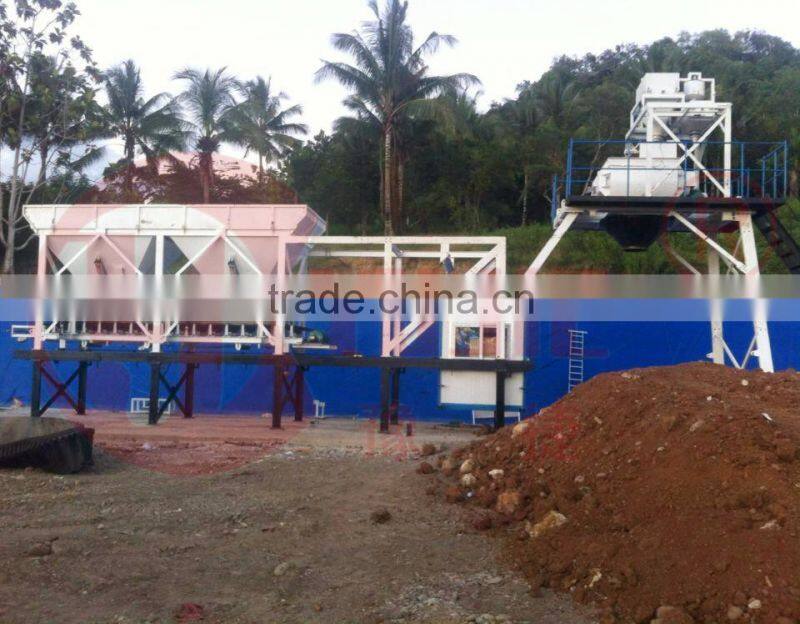

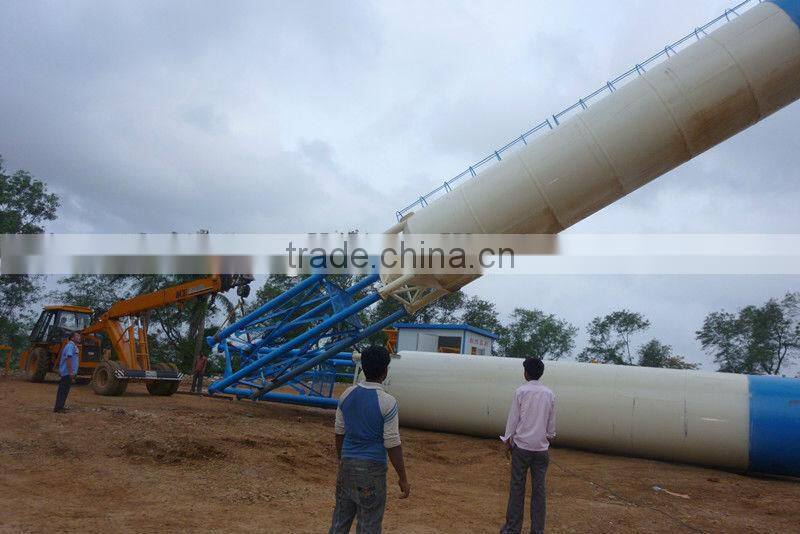

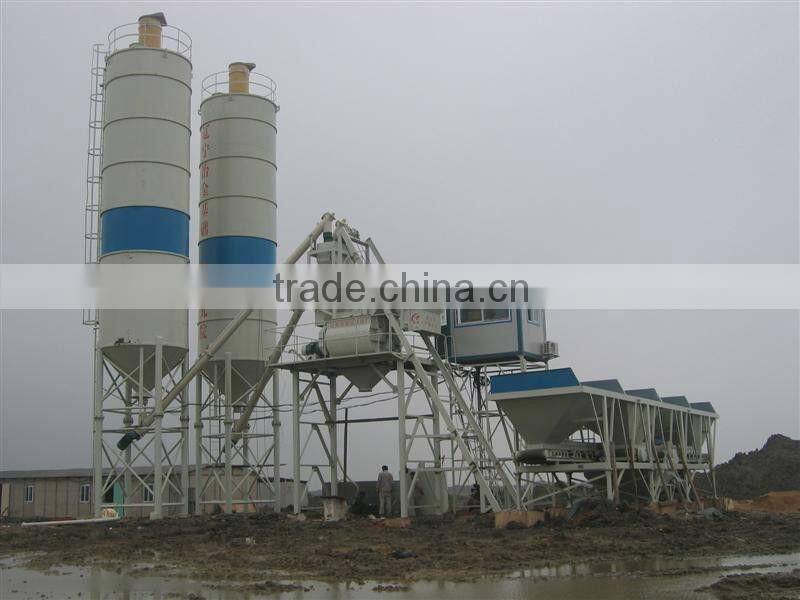

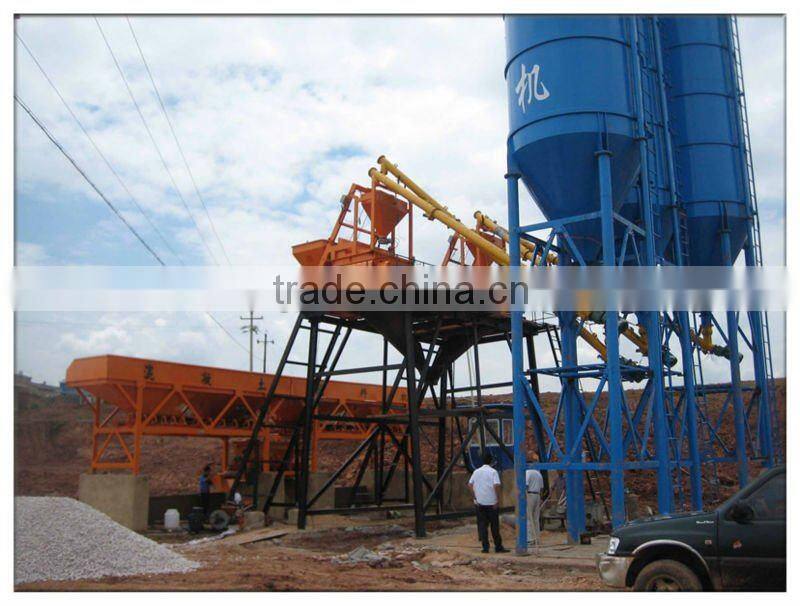

More photos about HZS25
Drawing of HZS25
Mixing system

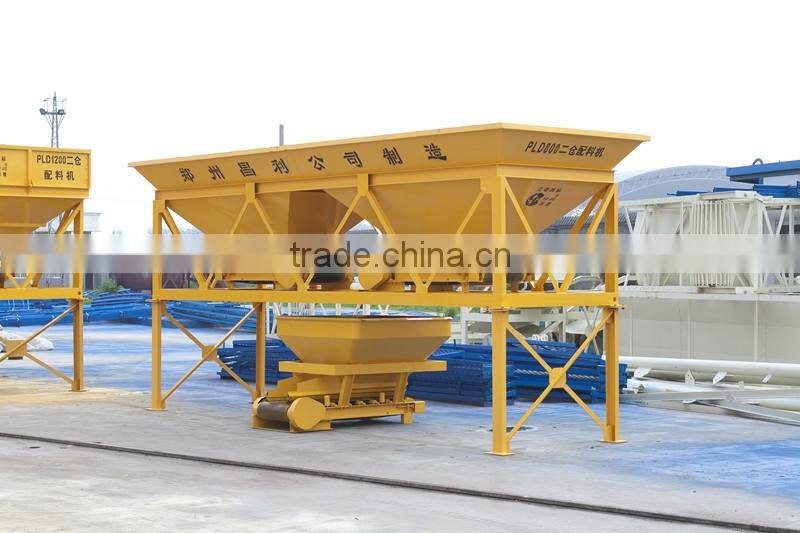

Batching system
Our certification
Q1. How long do you think your concrete mixer can stand up?
A1. The mixing blades can mix 30000 sessions and the lining board can stand up for 50000 sessions.
Q2. How many motors for PLD800 Batching Machine? How much power for each?
A2. For PLD800-III, there are four motors in total at 4KW each.
Q3. Do you manufacture detachable / bolted type 50 ton cement silos? How much grade/tensile for the bolts?
A3. Yes we do. The bolts grade/tensile is 8.8.
Q4. Can we put our logo on the machine?
A4. Yes, it is available. LOGO and color are usually as per customer's requirement.
