Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | YUJIE | |
| Model Number | HZS40-HZS60 | Power(W) | 120KW | |
| Dimension(L*W*H) | 33.8m*14.8m*10m | Weight | Configuration | |
| Certification | CE ISO | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CE,BV HZS25 -HZS240 mobile/stationary concrete batching plant cememt mixing machine with capacity from 25 m3/h to 420m3/h
I.Description of concrete batching plant machinery
HZS series of Concrete Mixing Plant is developed by our company on the basis of adopting the world's sophisticated technologies, this concrete mixing plant have been widely used in the domestic and overboard, as well as earned a perfect reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years.
Main Parts of HZS60 Concrete Mixing Plant:
1. twin shaft concrete Mixer JS1000
2. aggregate batcher PLD1600 with 3 storage bins;
3. cement silo: 100T boltd type (it depends on the customer's choice);
4. screw conveyor: 273mm*8m
5. cement, water, fly ash and additive scales;
6. computer controlled automatic control system.
Specification:
Technical Parameter | ||||
Item | Unit | Parameter | ||
Max. Productivity | m3/h | 60 | ||
Nominal Capacity of Mixer | m3 | 1 | ||
Aggregate Storage Capacity | m3 | 3×12 | ||
Rated Delivery Volume of Screw Conveyor | t/h | 35 | ||
Capacity of Cement silo | t | 2×100 | ||
Mixing Motor Power | kw | 37 | ||
Lifting Motor Power | kw | 15 | ||
Power of Machine | kw | 100 | ||
Weight of Machine | t | 50 | ||
Discharge Height | m | 3.8 | ||
Overall Dimension ( L×W×H) | m | 30×10×19.4 | ||

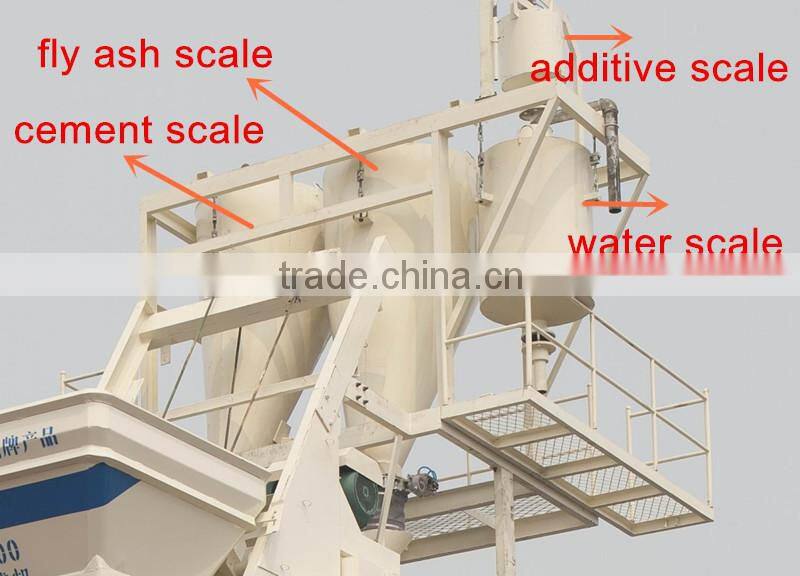

weighing scales:

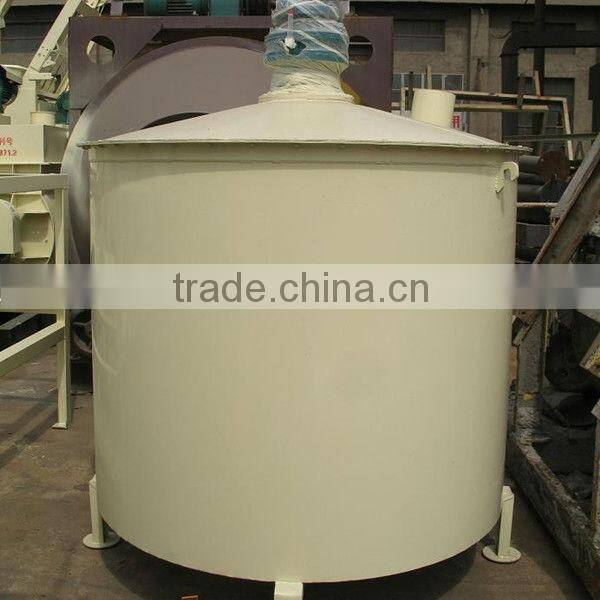

Additive mixing tank:

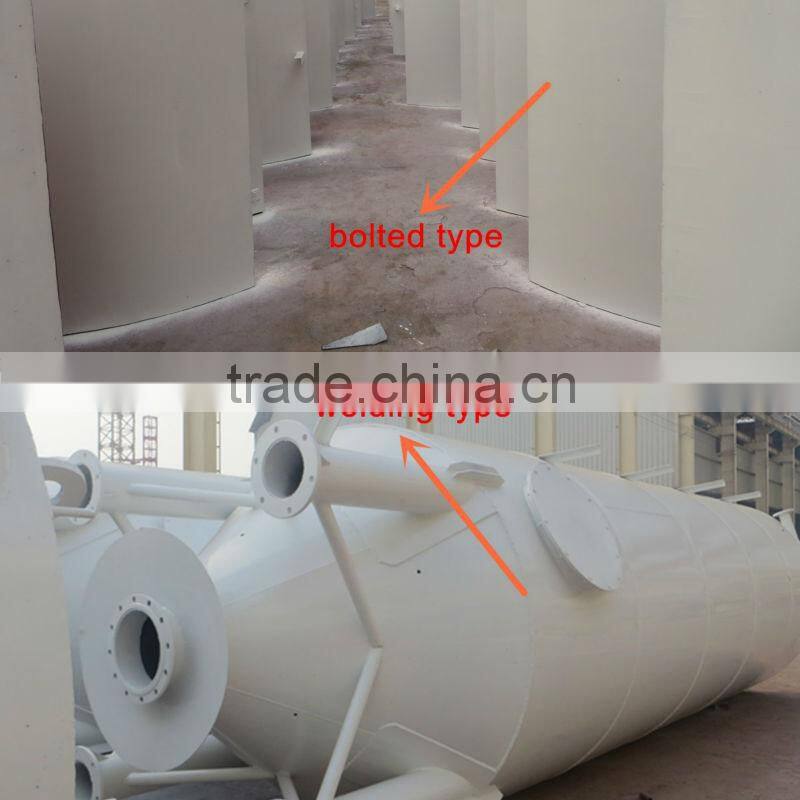

welding type cement silo
Control room
1. Packaging
A. Five 40HQ containers will be needed;
B. A wooden-box with the size of 60cm*60cm*60cm will be used for small items like bolt, nult, screw etc.
2. Shipping
A. by sea or by train; we have rich experience of shipping by sea or by train;
