HZS35 Concrete Batching Plant, Portable 35m3 Concrete Batching Plant in Phillipines
- China main port
- T/T Credit Card
You May Like
-
Mobile Concrete Batching Plant(75-90m3/h) Beton Mixing Plant for Sale
-
Hzs35 Low Mini Concrete Mixing Plant for South America
-
Concrete Mixing Plant, Big Capacity Stationary Concrete Mix Plant 120m3/h for Sale
-
Hzs120 Concrete Batching Plant, Big Capacity Beton Plant for Sale
-
Stationary Concrete Batching Plant, Wet Mix Concrete Batching Plant HZS60
-
More Efficiency Belt Conveyor Tyrpr HZS60 Concrete Mix Plant, Malaysia Concrete Batching Mixing Plant for Sale
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | YUJIE | |
| Model Number | HZS35 | Power(W) | 60kw | |
| Dimension(L*W*H) | 43538*24000*18704mm | Weight | Configuration | |
| Certification | CE ISO | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

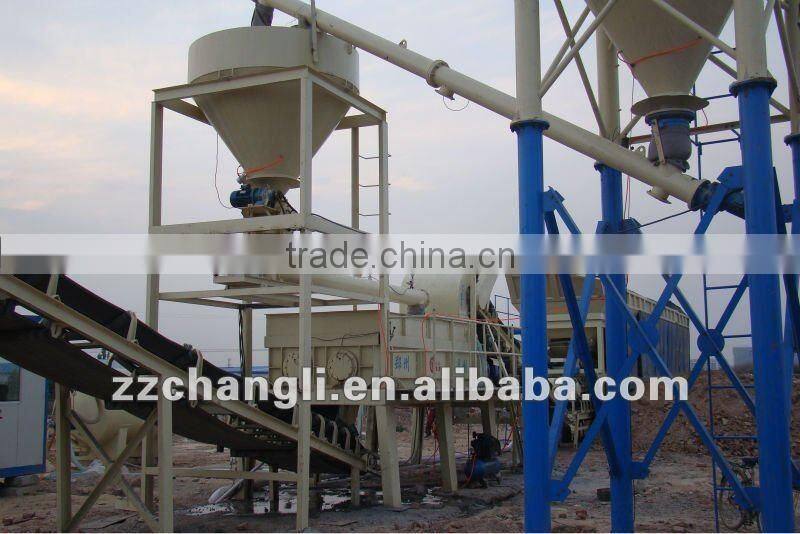

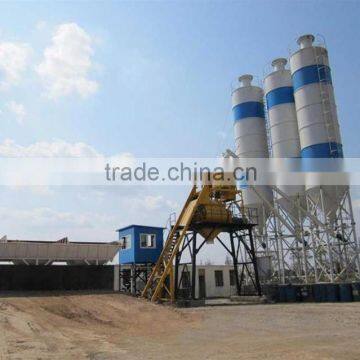

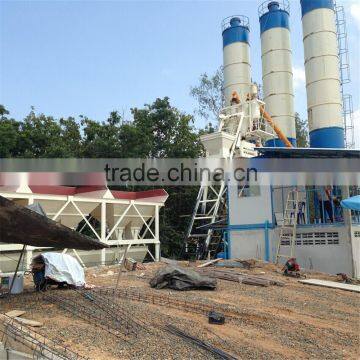

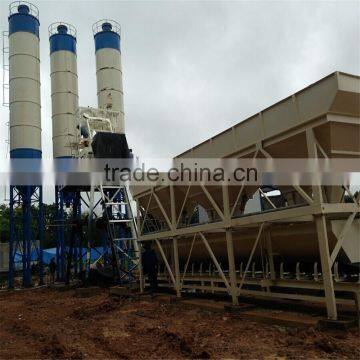

HZS35 concrete batching plant, 35m3 concrete batching plant in phillipines
HZS series adopts modular structure design, which maintains convenient installation&removal, safe, comfortable and reliable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintenance. Full-closed main mixing body, aggregate conveying system and dust removal system, it can effectively reduce dust and noise pollution. The whole set of concrete batching plant is consist of batching station, belt conveyor, silo, screw conveyor, conmpulsion type double horizontal mixer, measuring system, water supply system, air supply system, control system, main frame, etc
Main Technical Parameter of HZS35concrete batching plant :
Item | Unit | Parameter | |
Max. Productivity | m3/h | 35 | |
Nominal Capacity of Mixer | m3 | 0.75 | |
Aggregate Storage Capacity | m3 | 3×2 | |
Rated Delivery Volume of Screw Conveyor | t/h | 35 | |
Capacity of Cement Cabin | t | 100 | |
Mixing Motor Power | kw | 30 | |
Lifting Motor Power | kw | 7.5 | |
Discharge Height | m | 3.8 | |
Max. Weigh | Aggregate | kg | 2000 |
Cement | kg | 400 | |
Water | kg | 200 | |
Additive | kg | 40 | |
Measuring Accuracy | Aggregate | % | ±2 |
Powder | % | ±1 | |
Water | % | ±1 | |
Additive | % | ±1 | |
(1)Twin-shaft concrete mixer(JS500)

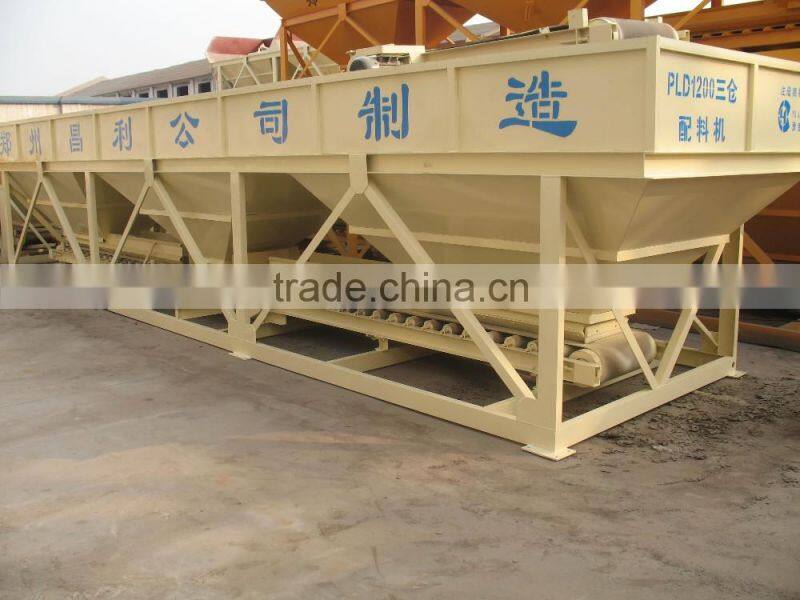

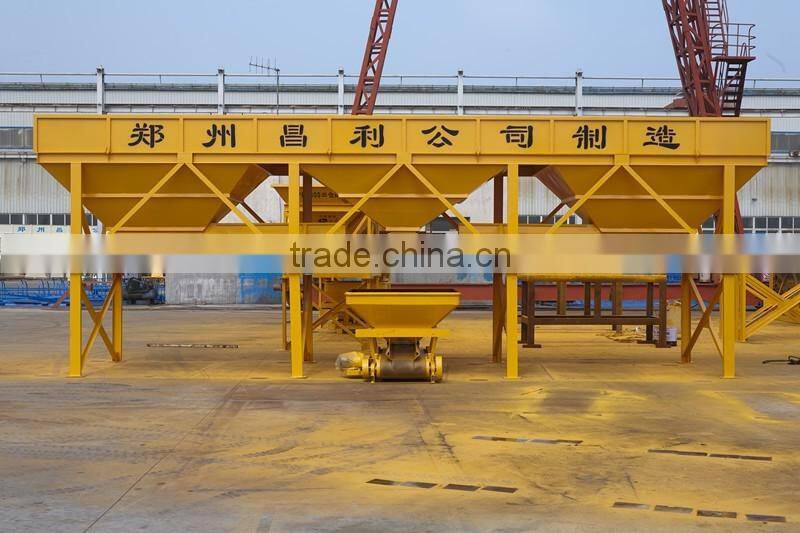

(2)Aggregate Batching System( Batching Machine)
(3)Cement Silo
(4)Screw conveyor

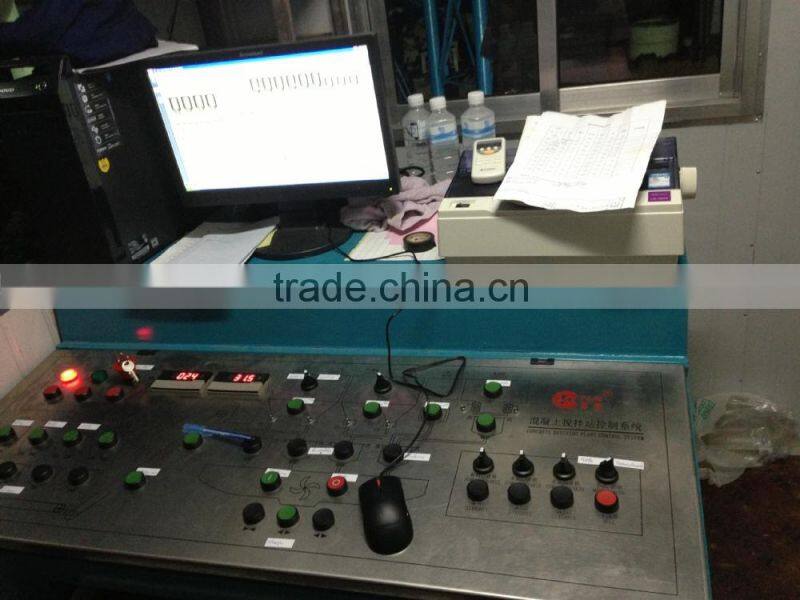

(5)Control system
